Ace FMC-150 cast iron bare shaft pump 1-1/2 x 1-1/4 NPT(F) ports 492 lpm 90 m head

Available
SKU: 95.46804
$1,988.00 NZD excl GST
Ace pumps

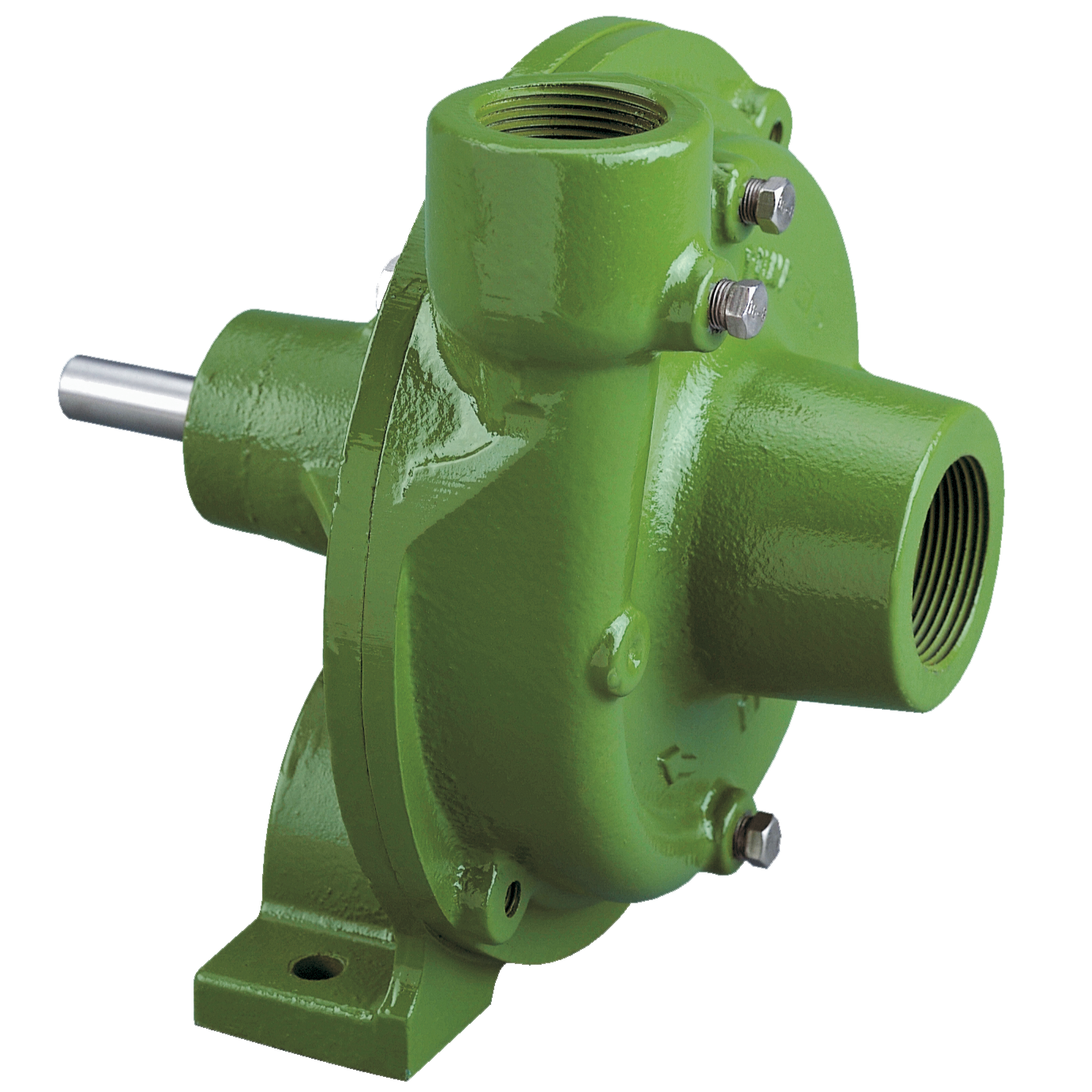

FMC-150 cast iron bare shaft pump

Cast iron bare shaft pump with a 5/8 inch keyed shaft and 1-1/2 x 1-1/4 inch NPT(F) ports. Non self-priming.

Max flow492 lpm130 gpm
Max head90 m295 ft
Max pressure9 bar130 psi
Shaft5/8 inchkeyed

Ports

Inlet 1-1/2 inch NPT(F)
Outlet 1-1/4 inch NPT(F)

Features

  • Cast iron construction
  • 5/8 inch keyed shaft
  • Non self-priming
  • Dimensions 226 x 213 x 224 mm (L x W x H)
