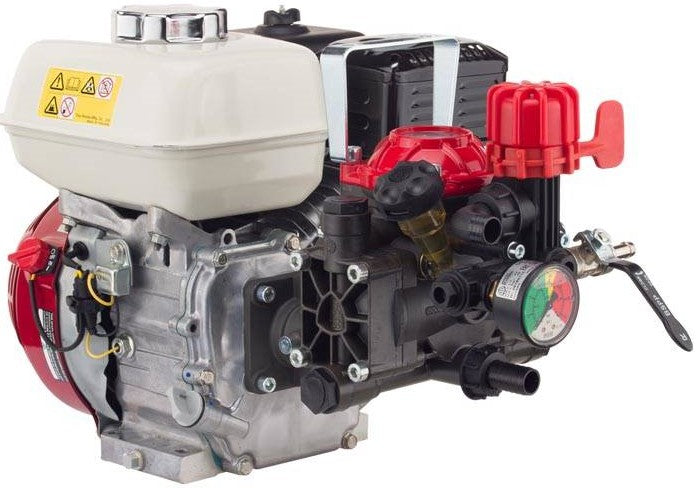

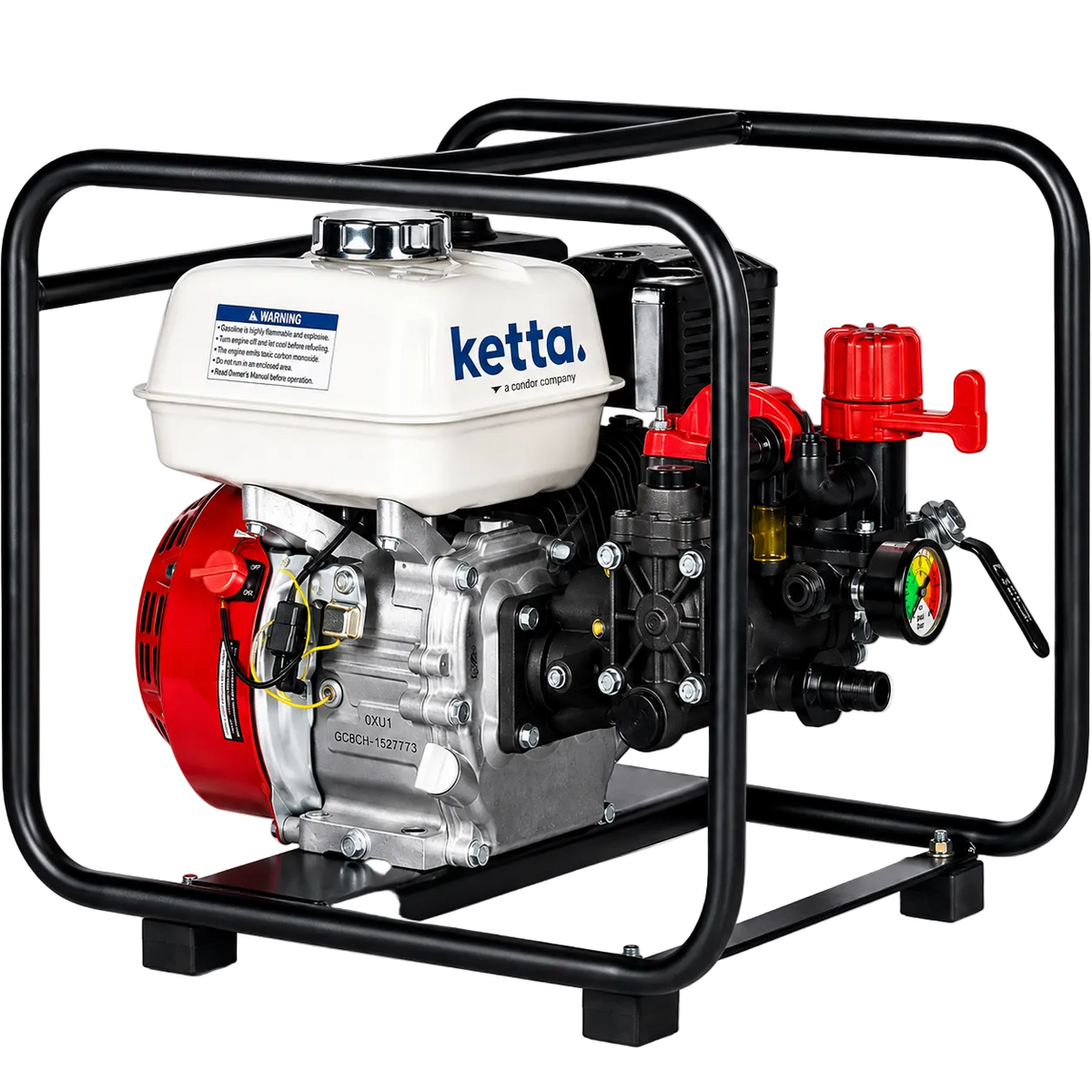

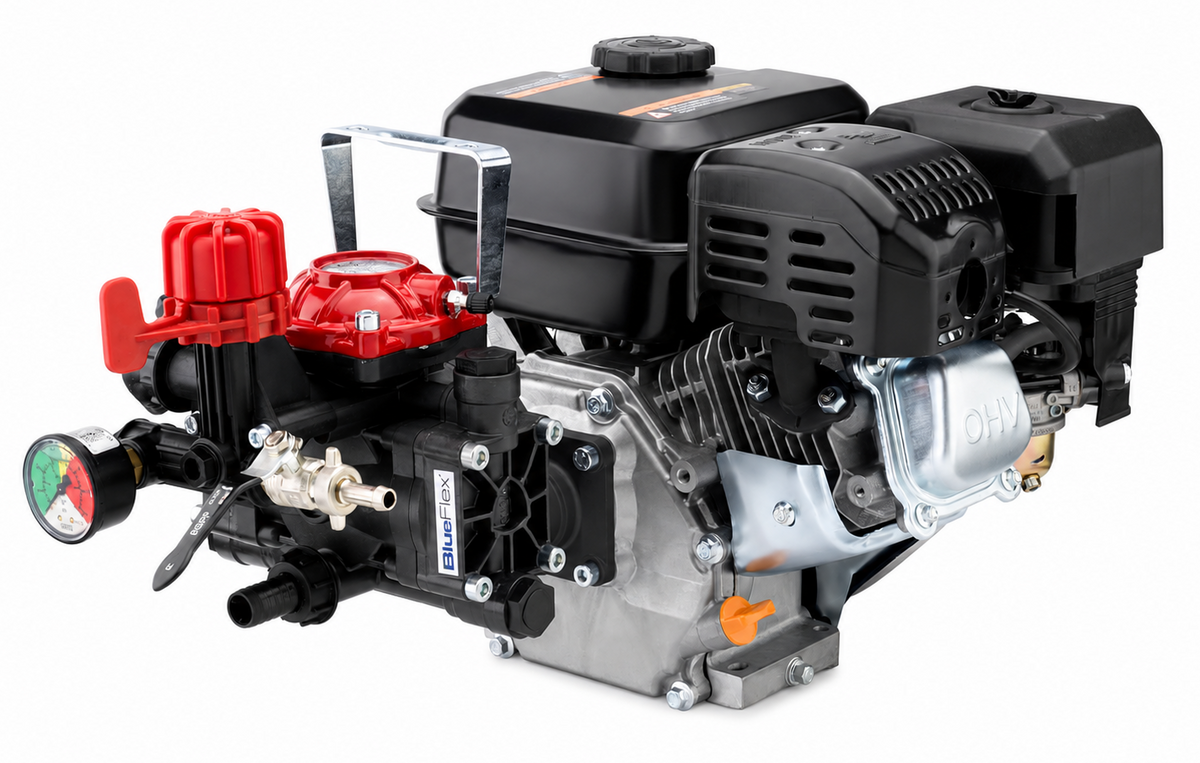

Annovi Reverberi AR252 diaphragm pump with Ketta or Honda engine 25 lpm 25 bar (362 psi)

Available
SKU: 10.32186-HL
$1,920.00 NZD excl GST
Select engine option:

Annovi Reverberi AR252 diaphragm pump
Choose from Ketta HL or Honda GX series industrial engine
Annovi Reverberi GR30 pump mounted control valve
BlueFlex long life diaphragms - providing over 80% longer life than traditional rubber diaphragms
Performance: 25 lpm (6.5 gpm), 25 bar (362 psi)
Features:
2 x BlueFlex diaphragms
60 degrees C max temperature
Self-priming
OK to run dry
Materials:
Anodised aluminium pump body
BlueFlex long life diaphragms
Pump ports:
3/4 inch BSP(M) inlet port
19 mm (3/4 inch) inlet hose tail
1/2 inch BSP(M) outlet port
Engine oil type: SAE 30 engine oil or similar
Pump oil type: SAE 30 engine oil or similar
Gearbox oil type: SAE 75W/85 gear oil or similar
