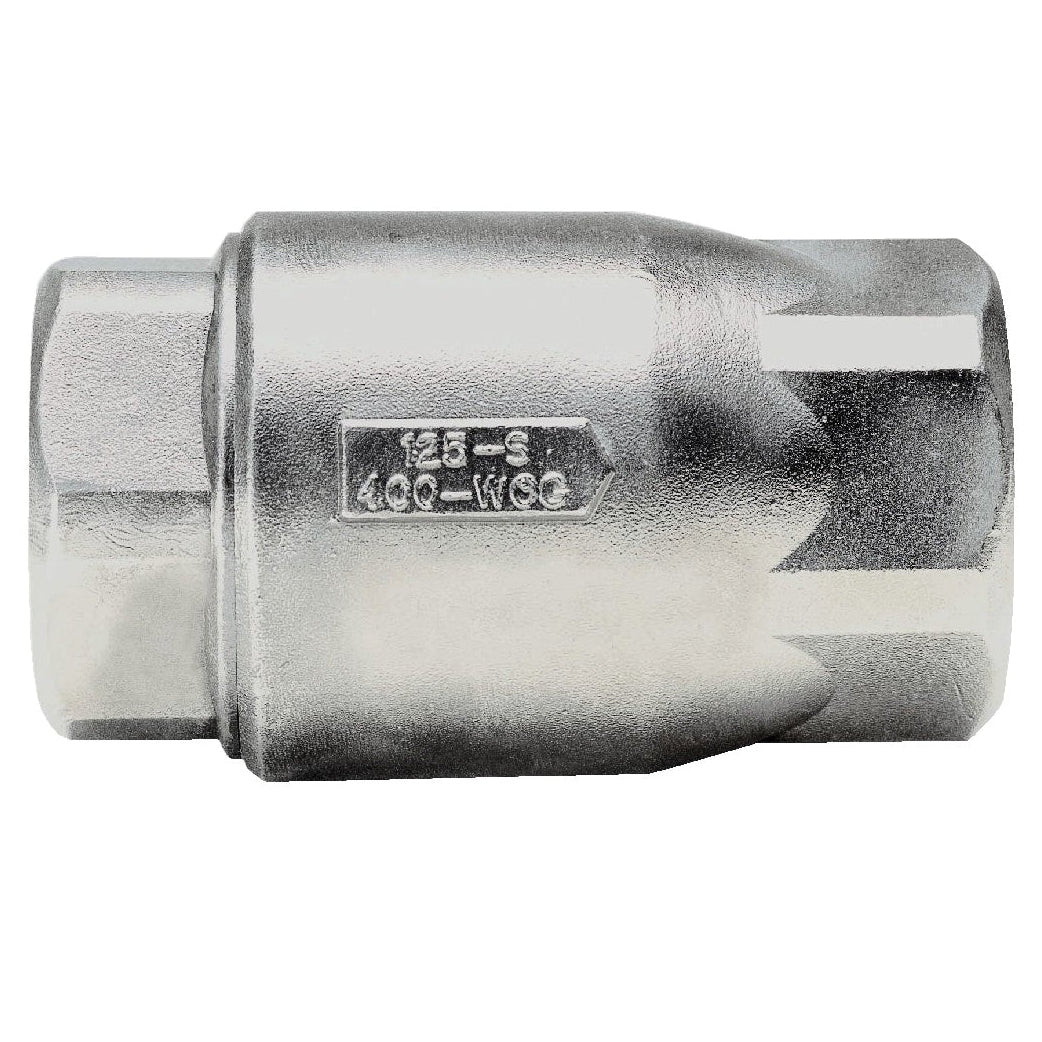

Apollo 62-106-01 inline check valve 32 mm 1-1/4 inch NPT(F) Stainless Steel ball / cone

Apollo 62-106-01 inline check valve 32 mm 1-1/4 inch NPT(F) Stainless Steel ball / cone
Apollo 62-106-01, In-Line Ball Cone Check Valve, Standard, Series: 62-100, 1-1/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, 44 gpm Flow Rate, Spring-Loaded Latch-Lock Handle Actuator, 4.18 in Inlet to Outlet Length, Stainless Steel Body, 2.37 in H Dimensions, Domestic
The 62-100 series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries
The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow
Brand: Apollo™
Weight: 2.38 lbs
Nominal Size: 1-1/4 in
End Style: FNPT
Flow Rate: 44 gpm
Body Material: Stainless Steel
Actuator Type: Spring-Loaded Latch-Lock Handle
Dimensions: 2.37 in H
Inlet to Outlet Length: 4.18 in
Manufacturer Name: Apollo Conbraco
Pressure Rating: 400 psi CWP
Series: 62-100
Temperature Rating: 350 deg F
Trim Material: Stainless Steel
Type: Standard
Application: Corrosive Environments, Including Chemical Processing, Pulp and Paper and other Process Industries
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351 Retainer CF8M Valve Body | RoHS Compliant | US Patent 4172465 | PROP65: Cancer and Reproductive Harm
