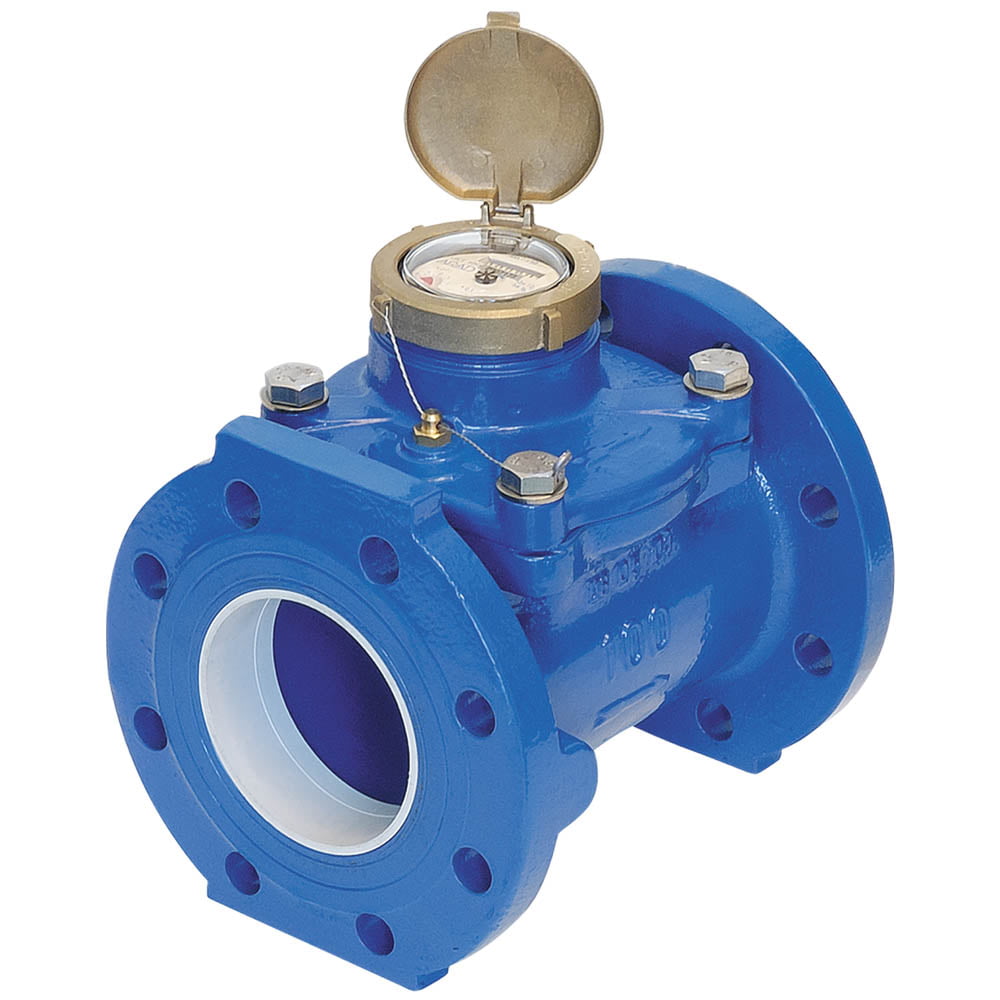

Arad IRT series 200 mm (8 inch) cast iron flow meter 16 bar (232 psi) 900 m3/h max

Arad IRT series 200 mm (8 inch) cast iron flow meter 16 bar (232 psi) 900 m3/h max
Special design with free water passage allows measurement of water with high contents of impurities
Applications:
Irrigation and sewerage metering etc
Features:

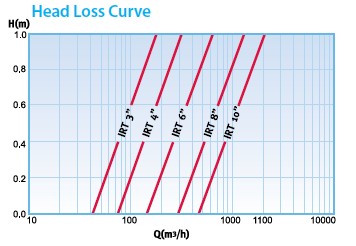

• Negligible head loss
• Simple maintenance
• Field replaceable measuring unit
• Hermetically sealed register with glass lens
• Bearings are constantly flushed
during operation to eliminate deposit of solids
• Optional electrical output: EV (Volume) or EF (Rate of Flow)
• Compatible with Dialog automatic reading system
Maximum Working Pressure 16 bar
Maximum Liquid Temperature 60°C
Body Cast iron, polyester coated
Connection Flanges according to ISO, BS
10, ANSI 150 or others
Register M3, U.S. Gallon, cu.ft, ML
Central pointer or 3 pointers
Installation:
The meter can be installed in any position (horizontal, vertical or inclined)
• The meter must be always full of water while operating
• Prior to the installation of a new meter, the pipeline must be flushed out
• Straight pipe section of the same diameter D as the meter, having length of 10D and 5D shall be installed upstream and downstream of the meter respectively
