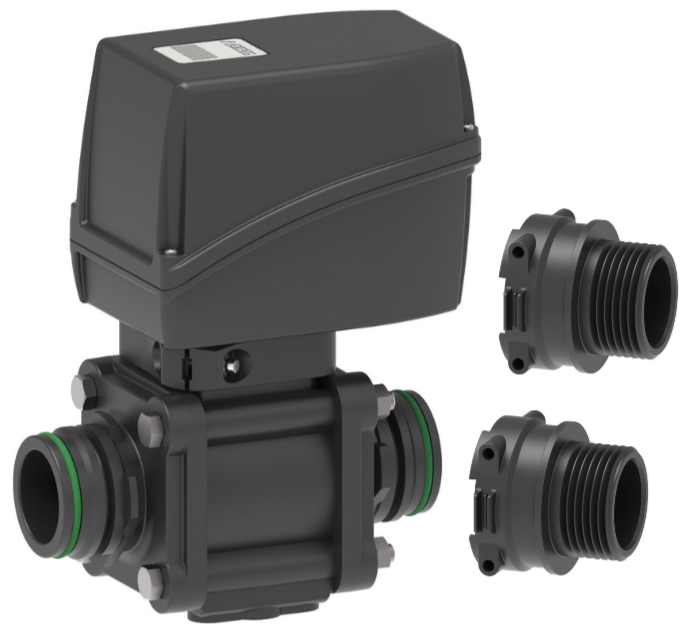

Arag 853 series 12v electric ball valve with 2 x BSP(M) adapters included 12 bar (174 psi) max - all sizes

Arag 853 series 12v electric ball valve with 2 x BSP(M) adapters included 12 bar (174 psi) max - all sizes

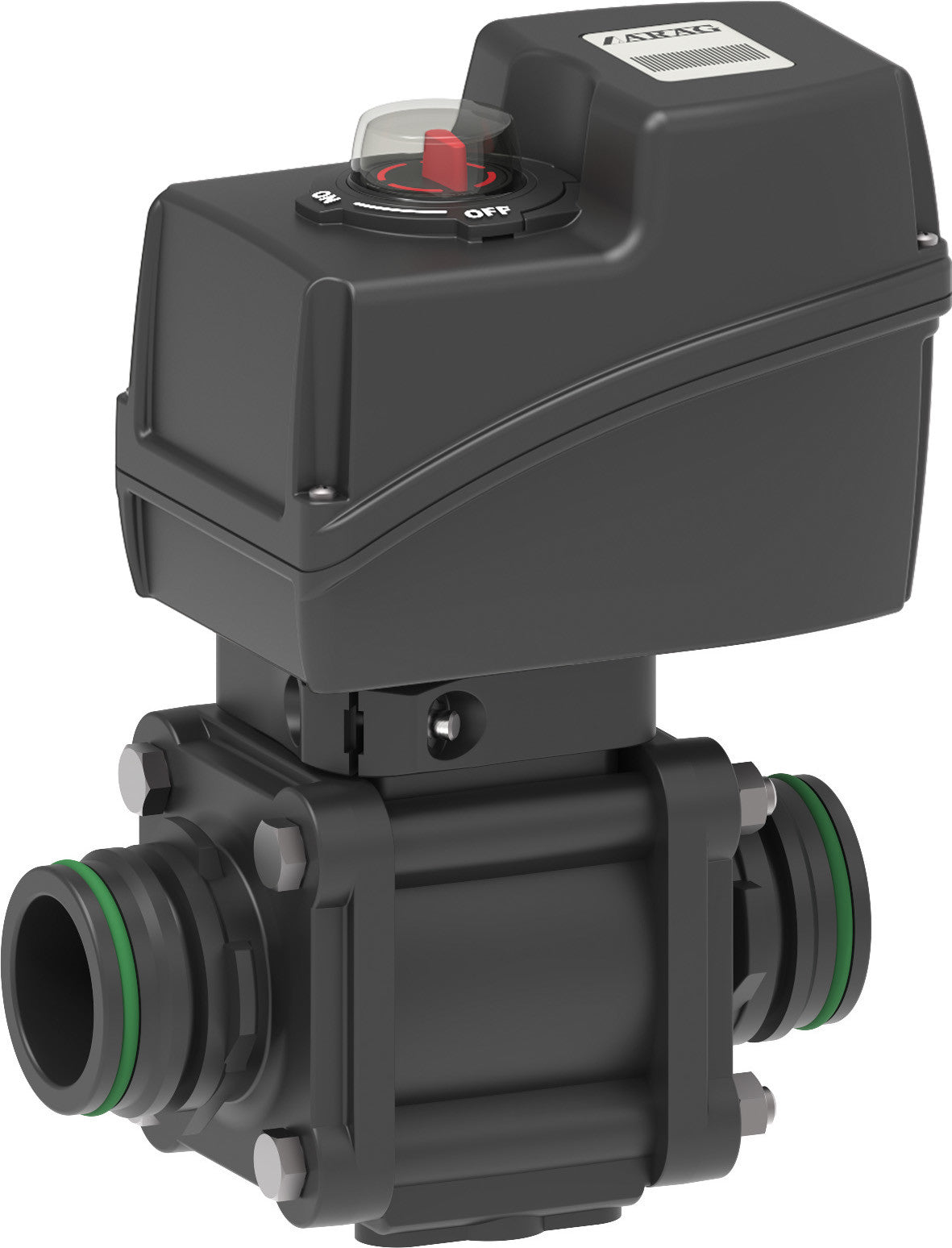

2-way electric bolted ball valves with fork couplings - SAE J1939 protocol
The electric ball valves of the 853 series are the result of a special design focused on the functionality and reliability of an accessory that is essential both in the agricultural and in the industrial field
All valves have technical features that make them unique on the market and safe and reliable parts for any type of system
A complete range consisting of 2-way, 3-way valves available both with side and lower 4/5-way coupling
The electric valves of the 853 series feature a new completely redesigned gear motor that allows a longer duration as well as great reliability and flexibility

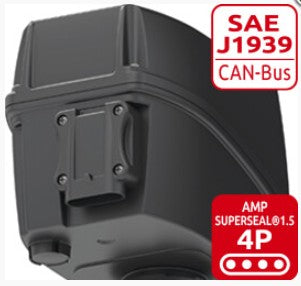

In addition to the new bodies and new connection sizes, the most outstanding news concerns the CAN-Bus version with SAE J1939 protocol, which makes it easy to control even very complex hydraulic circuits, such as those for the management of sprayers’ auxiliary services
General features:
Patented integrated fixing system
Directly on the body; no inserts
No problems in case of hole alignment mistakes
Fixing through hexagonal head screws M8 (or 5/16 UN)
The colour given in the tables of the models that can be mounted with CAMLOCK couplers refers to the measurement of the coupler itself
The gearmotor of the 853 valves can be easily separated from the valve body and oriented in any position by loosening the collar and rotating the motor in positions of 90°
The electric ball valves series 853 are available, on request, also with 24Vdc power supply
Technical features:
Electric ball valves
12 Vdc electric activation
Stainless steel rotation pin
Teflon® ball seats
Internal O-rings in Viton®
Internal ball in polypropylene reinforced with fiberglass, in stainless steel or PE-UHMW
Stainless steel flange tie-rods, protected by the valve body
Gear motor easy orientation
Simple maintenance: the motor can be easily separated from the valve
Available in the version with 3-wire electric control and A-net connection
“Plug and Play” addressing of the valves of the A-net version
Available with fork couplings, male and female threads, Camlock adapter or clamp coupling
Supplied with standard BSP and, upon request, NPT threads
