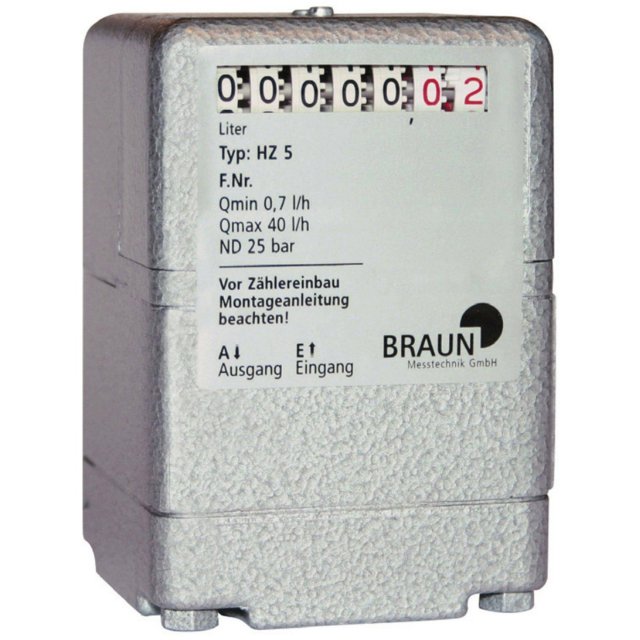

Braun HZ5 1/8 inch BSPP(F) low flow meter for oil and diesel 25 bar (362 psi) 0.7 to 40 L/hr

Braun HZ5 1/8 inch BSPP(F) low flow meter for oil and diesel 25 bar (362 psi) 0.7 to 40 L/hr
Suitable with heating oil, diesel and biodiesel up to B35
Used for measuring Heating Oil consumption
The HZ5 mechanical flow meter measures the quantity of oil used
This oil flow meter is robust and durable, and thanks to its clear display, the amount of oil consumed can easily be read off the meter
Ideal for domestic use, the HZ5 flow meters are suitable for mounting on all makes of burner, and can be retrofitted to any existing heating system
These flow meters can be installed vertically in either a single or twin pipe system, with the display positioned horizontally and a backwards pitch of no more than 45 degrees
If sited outside a weatherproof cover is needed - not for outdoor use
Boiler capacity 7 kW ‑ 400 kW
Pressure loss 0.05 ‑ 0.2 bar
This meter does not affect or impair the burner
The only maintenance required is to clean the dirt trap regularly
Weight 0.65 kg
Accuracy +/- 1%
Flow Rate 0.7 – 40L/hr
Manufacturer Braun
Max Pressure 362 psi (25 bar)
Outlet ⅛" F BSPP
Fuel Type Diesel, Heating Oil
Totaliser 7 digit
