C-Scope CAT MXL4-D multi-frequency locator for depth and data logging
Regular price
$3,036.00 NZD
excl GST
Couldn't load pickup availability
C.Scope precision locator

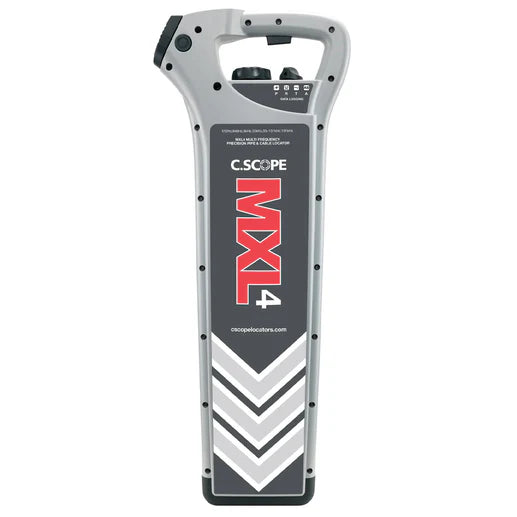

MXL4-DMulti-frequency pipe and cable locator with depth measurement and data logging
A high-performance digital locator for detecting, pinpointing and tracing buried pipes and cables. The MXL4-D combines multiple transmitter frequencies, push-button depth measurement, signal-current measurement and a full record of locator activity.
6 frequenciesFrom 512 Hz to 131 kHz
9.99 mMaximum indicated depth range
12+ monthsInternal activity data storage
IP65Dust and water protection
Key features
Four detection modesPower, radio, transmitter and AllScan modes.
Multi-frequency tracing512 Hz, 640 Hz, 8 kHz, 33 kHz, 131 kHz and simultaneous 33 + 131 kHz.
Depth measurementPush-button depth indication for buried services and compatible sondes.
Signal-current measurementHelps identify and follow the intended pipe or cable within congested networks.
Full data loggingRecords operating data once per second and stores more than 12 months of normal use.
USB data transferDownloads records to a PC for review with C.Scope PC Toolkit.
Automatic daily self-testChecks the locator and receiving aerials when first switched on each day.
Operator guidanceAlarmZone, PeakHold and Dynamic SwingSensor support safer, more consistent locating.

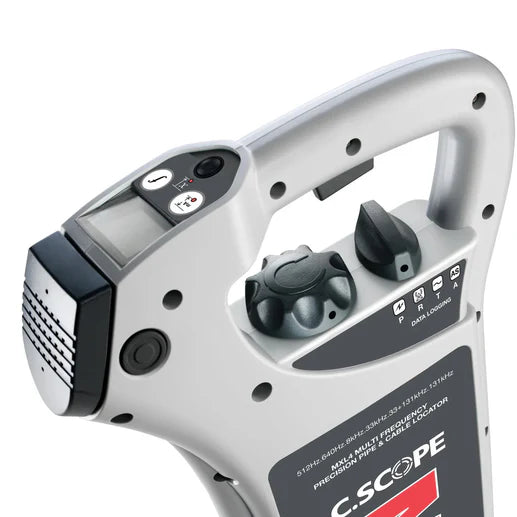

Clear backlit displayShows mode, signal strength, depth, frequency, current and battery condition.
Rugged constructionHigh-impact twin-wall housing designed to withstand a 1 m drop.
Technical data
- Model
- MXL4-D
- Locate modes
- Power, radio, transmitter and AllScan
- Transmitter frequencies
- 512 Hz, 640 Hz, 8.192 kHz, 32.768 kHz, 131.072 kHz and 33 + 131 kHz
- Locate accuracy
- Better than 10% of depth
- Depth accuracy
- ±5% at 1 m
- Line depth range
- 0.1–9.99 m
- Sonde depth range
- 0.1–9.99 m, depending on sonde
- Depth resolution
- 0.1 m
- Current measurement
- 0.01–100 mA
- Data logging
- Once per second, over 12 months in normal use
- Memory
- 2 GB
- Data connection
- USB Mini-B, USB 2.0 compatible

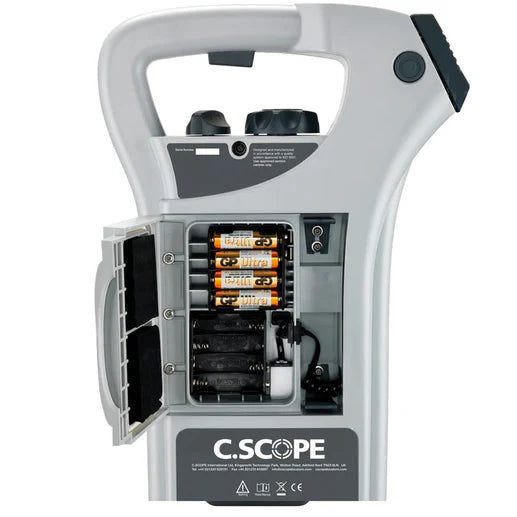

- Battery
- 8 × AA alkaline or NiMH rechargeable
- Battery life
- Approximately 40 hours intermittent use at 20 °C
- Protection rating
- IP65
- Weight
- 2.65 kg including batteries
- Dimensions
- 720 × 280 × 65 mm
- Warranty
- 3 years, conditions apply
Typical maximum detection depth
Mode
Frequency
Maximum depth
Power
50–400 Hz
3 m
Radio
10–30 kHz
2 m
Transmitter
512 Hz–131 kHz
5 m
AllScan
50 Hz–33 kHz
3 m
Compatible sonde
Frequency dependent
Up to 7 m
Depth measurement requires a compatible C.Scope MXT4 transmitter or sonde. The MXL4-D includes USB data transfer; Bluetooth and built-in GPS are features of the MXL4-DBG model, not the MXL4-D. Performance can vary with ground conditions, temperature and electromagnetic interference.
