Condor KD6A digital flow meter 3/8 inch NPT(F) 0 to 60°C 8 bar (116 psi) 1.2 to 12 lpm
Regular price
$322.00 NZD
excl GST
Couldn't load pickup availability

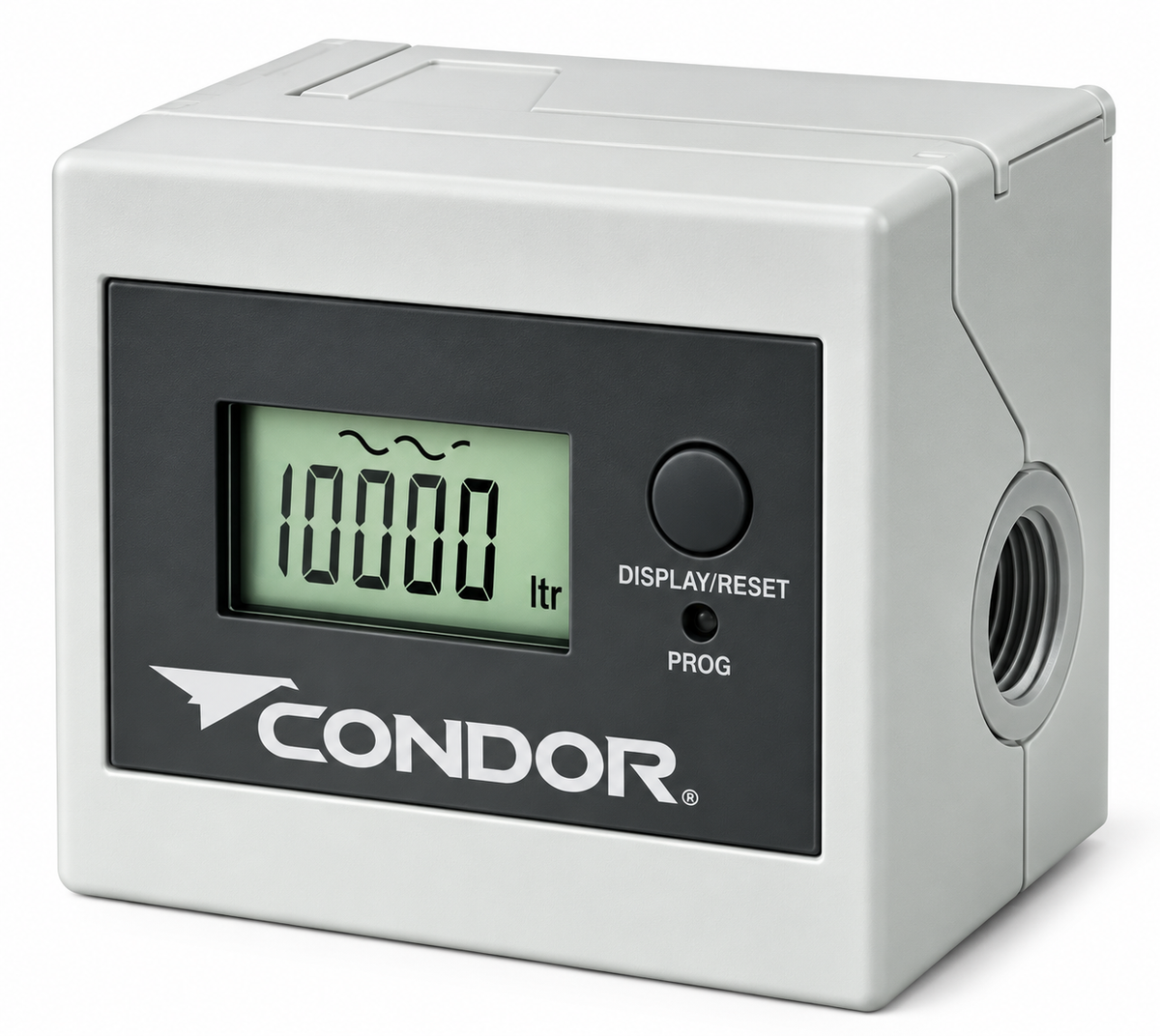

Condor KD6A Digital Flow Meter
3/8 inch NPT(F) | 0 to 60°C | 8 bar (116 psi) | 1.2 to 12 lpm
The Condor KD6A is a compact, battery-operated digital water flow meter designed for water treatment, filtration and general water monitoring applications.
Technical Specifications
| Model | KD6A |
| Connection | 3/8 inch NPT(F) |
| Flow rate | 1.2 to 12 lpm |
| Maximum pressure | 8 bar (116 psi) |
| Operating temperature | 0 to 60°C |
| Accuracy | ±7% |
| Flow direction | Bidirectional |
| Power supply | 2 × AAA alkaline batteries |
| Battery life | Up to 2 years |
| Weight | 180 g |
| Sensor body | Acetal copolymer |
| Turbine | Acetal copolymer |
| Turbine shaft | 304 stainless steel |
| O-ring | EPDM rubber |
Key Features
- Compact digital LCD display
- Bidirectional water flow sensing
- Battery-operated design
- Low-battery warning
- Compact back-mounted construction
- Suitable for water treatment and filtration systems
Applications: Water filtration, water treatment, water softeners and water flow monitoring.
