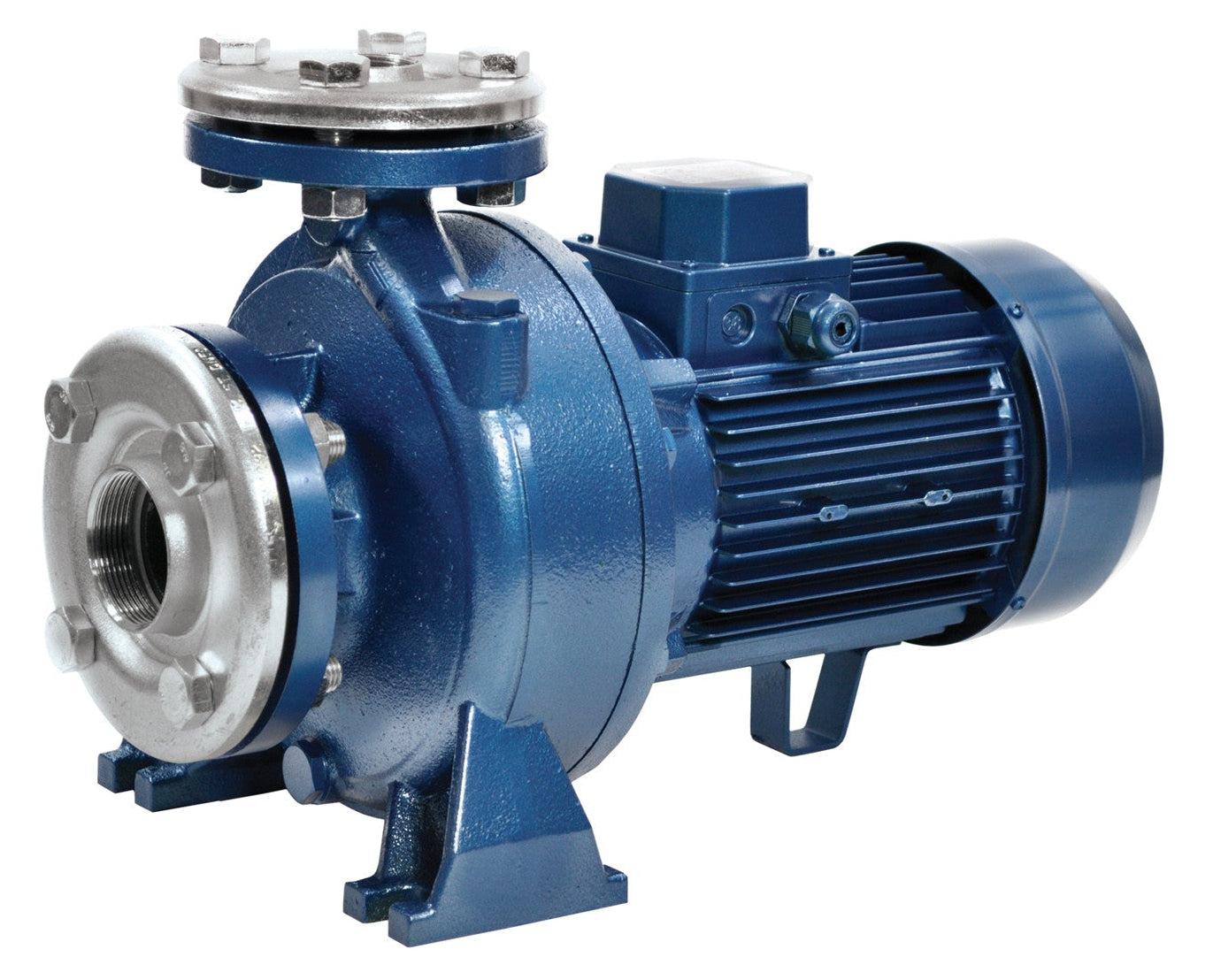

Davies 220-CN-50-0550 cast iron wash-down pump 5.5 hp 4.0 kW 400v 50HZ DIN50-125A

Davies 220-CN-50-0550 cast iron wash-down pump 5.5 hp 4.0 kW 400v 50HZ DIN50-125A
The Davies Pumps CN series are rugged DIN standard cast iron single impeller pumps with flange mounts.
They have been proven to be strong and reliable in closed loop chiller circuits, cooling towers, dairy sheds and many other wash-down applications.
Manufactured according to DN 24255 standards.
Max pumped liquid temp: 90°C.
Max ambient temp: 40°C.
Max working pressure: 10bar.
Technical Features:
Pump body: Cast iron G20 with anti-corrosive coating.
Motor bracket: Cast iron G20 with anti-corrosive coating.
Impeller: Cast iron G20 with anti-corrosive coating.
Orifices in/outlet: DIN 2532 standards.
Threaded counted flanges: Galvanized steel complete with EPDM gaskets.
Pumps shaft: Stainless steel Aisi 304.
Mechanical seal: Carbon-ceramic.
Motor Features:
Closed auto-ventilated motor with protection IP55, two poles, class F insulation.
Three-phase feeding with compulsory protection to be provided by the user.
Continuous duty.
2 Year Warranty
