Fill Rite TT10ANC digital flow meter 1 inch NPT(F) for diesel petrol and water etc 8 to 132 lpm
Couldn't load pickup availability
Fill Rite TT10ANC digital flow meter 1 inch NPT(F) for diesel petrol and water etc 8 to 132 lpm
2 x AA batteries included

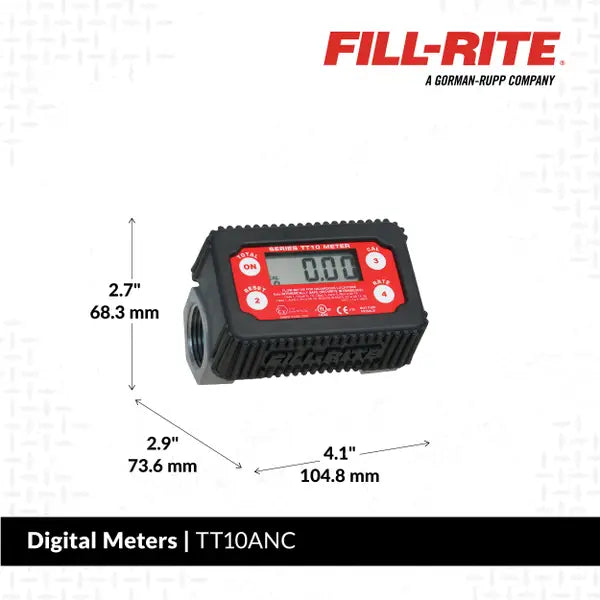

Assembled product height x width x depth: 76 x 102 x 64 mm (3 x 4 x 2.5 inches)

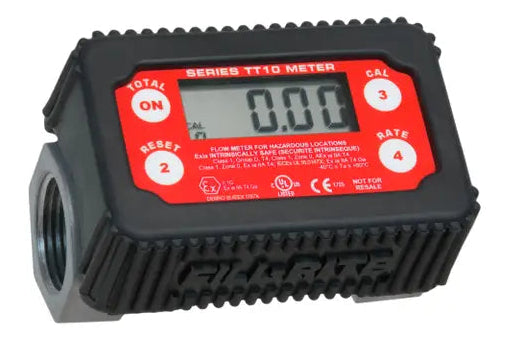

The TT10ANC is a nickel-plated, 4-digit, digital fuel transfer meter.
This meter is equipped with NPT threads and is designed to register 2-35 gallons per minute at +/-1% accuracy.
This model does not include any installation components.
Max operating pressure 3.4 bar, 50 psi
Accuracy (+/- %) 1 %
Repeatability (+/- %) 0.3 %
Display type LCD
Display digits 4
Pulse Rate --
Power source: AA batteries (included)
Totalizer: Yes
Pulse output: No
Flowrate range: 2-35 GPM/ 8-132 lpm
Compatible fluids: Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Hexane, Non-Potable Water, E85
Inlet size / connection / thread 1 inch female / NPT
Outlet size / connection / thread 1 inch female / NPT
Operating temperature range (°F) -40 - 140°F / -40 - 60°C
Versatile construction – models available in aluminum, polypropylene, and nickel-plated aluminum for varying fluid compatibility
Extreme accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible

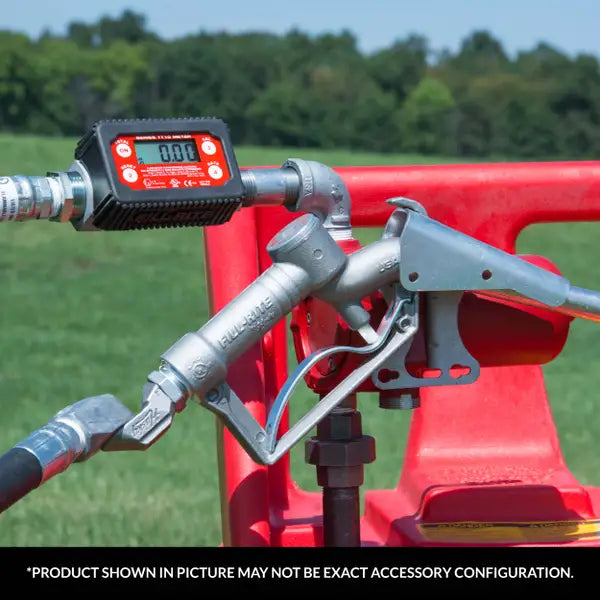

Flexible use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience
Complete customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts
Ready-Out-of-Box – factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration
Impact resistant – external rubber boot provides maximum protection and impact resistance for tougher applications
Lifetime tracking – non-resettable counter tracks total volume transferred over lifetime of meter, even if batteries are replaced
