Fotric TD2 acoustic imaging camera - see sound, spot leaks faster - detects sound from 20Hz–20kHz

Fotric TD2 acoustic imaging camera - see sound, spot leaks faster - detects sound from 20Hz–20kHz
Beyond what's audible:
The Fotric TD2 acoustic imaging camera can detect not only audible sound (20Hz–20kHz), but also high-frequency ultrasonic signals that are beyond the range of human hearing
This means it can easily capture things like...

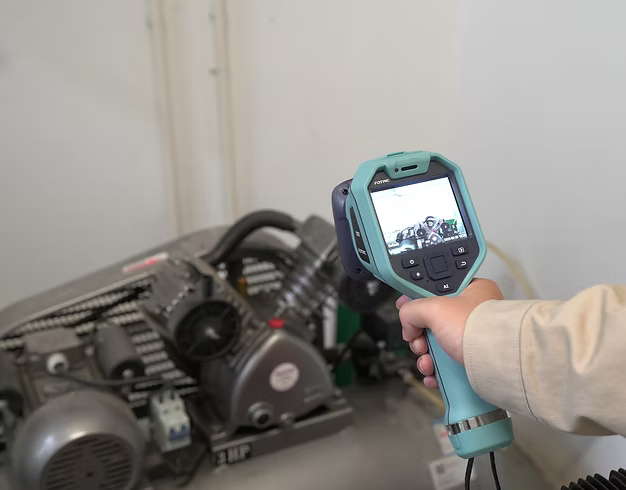

Compressed air system leaks:
As gas leaks emit high-frequency turbulence noise, the TD2 can quickly detect even the smallest leaks in compressed air pipelines
Vacuum system leaks:
The TD2 precisely captures subtle leak sounds in vacuum systems that human ears cannot hear, enabling fast leak localization without contact or damage to equipment
Loose joint vibration during operation:
The TD2 detects abnormal high-frequency sounds caused by loose screws while equipment is running
It visualizes and pinpoints the issue in real time without requiring a shutdown, helping maintenance teams address risks and ensure operational stability
Tire air leaks:
The TD2 quickly visualizes and locates tire leak points without the need for soap spray—precise, efficient, and easy to use
Why Fotric TD2?

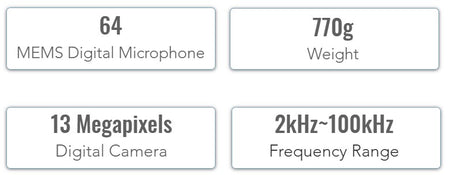

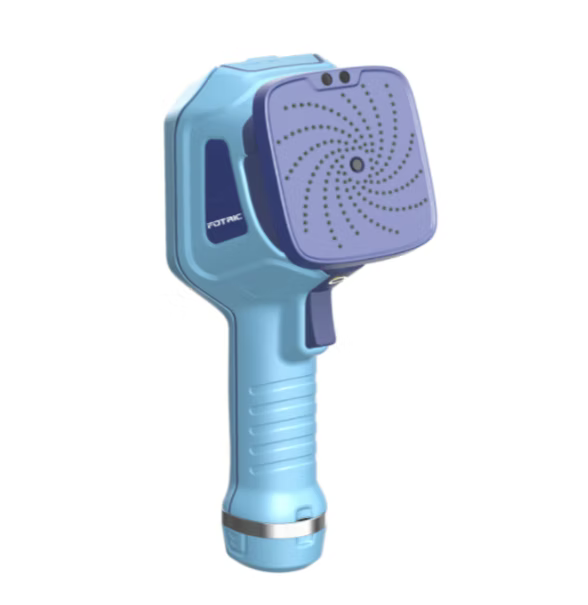

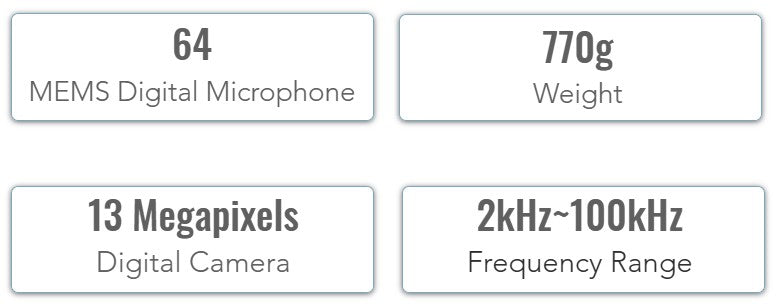

High-density microphone array with 64 MEMS digital microphones
Industrial digital camera: 13 MP, 66° × 52° field of view
4 hours of single-battery runtime, removable; device rated IP54

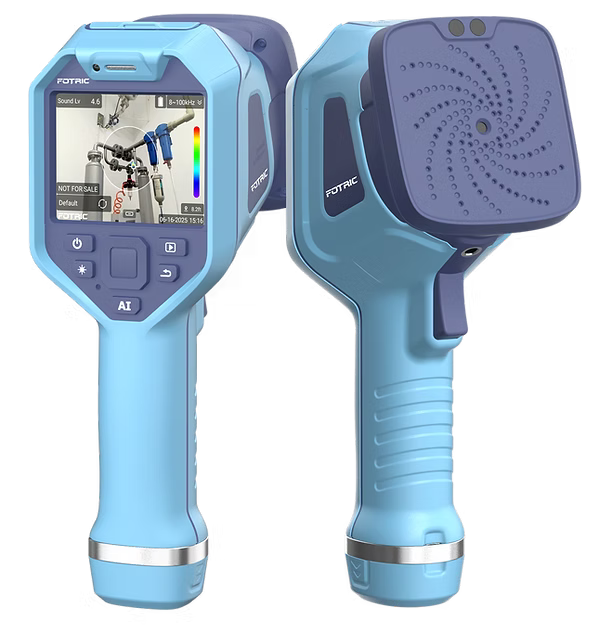

Multiple imaging modes: single-source, multi-source, and holographic
Professional features: sound pressure level measurement, acoustic focusing
