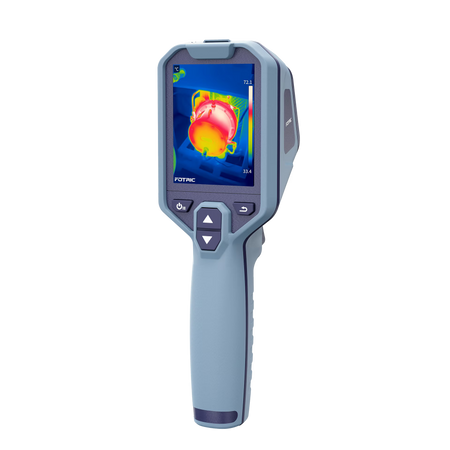

Fotric TF3 thermal imaging camera with true 320 × 240 resolution and ceramic-packaged detector
Couldn't load pickup availability
Compact thermal imaging camera
Fotric TF3 thermal imaging camera
A lightweight, focus-free thermal camera with true 320 × 240 infrared resolution for electrical, mechanical, HVAC and building inspections.
Overview
The TF3 combines a true 320 × 240 ceramic-packaged infrared detector with simple focus-free operation. Its wide field of view, four image modes and long battery runtime make dependable thermal inspection accessible for everyday maintenance and fault-finding.
Key features
True detector resolution
76,800 genuine thermal pixels reveal smaller temperature anomalies and finer detail.
Focus-free operation
Point-and-shoot imaging speeds up routine inspections and avoids focus-related measurement error.
T-TWB® imaging
Histogram temperature-gradient imaging optimises contrast and detail across complex thermal scenes.
Four image modes
Thermal, T-DEF® visible-light temperature measurement, picture-in-picture and visible light.
Wide field of view
The 38° × 50° field of view provides fast coverage for short-range, large-area inspection.
Field-ready design
IP54-rated protection, 430 g weight and at least 6.5 hours continuous battery runtime.
Applications
Thermal imaging specifications
- Infrared resolution
- 240 × 320 pixels
- Detector
- Uncooled infrared focal-plane detector
- Thermal sensitivity
- <30 mK at 30°C
- Spectral response
- 8–14 μm
- Frame rate
- 30 Hz
- Field of view
- 38° × 50°
- Spatial resolution
- 2.76 mrad
- Focus
- Focus-free
Measurement and display
- Temperature range
- –20 to 450°C
- Accuracy
- ±2°C or ±2%, whichever is greater
- Display
- 3.2-inch 640 × 480 IPS LCD
- Digital camera
- 2 MP industrial-grade camera
- Image modes
- Thermal, T-DEF®, picture-in-picture, visible light
- Palettes
- Rain, Iron, Grey and Rainbow
- T-DEF® transparency
- Adjustable from 0% to 100%
- Analysis software
- AnalyzIR professional software
Power and physical data
- Battery
- 3.6 V, 4800 mAh rechargeable lithium
- Battery runtime
- ≥6.5 hours continuous operation
- Protection rating
- IP54
- Weight
- 430 g

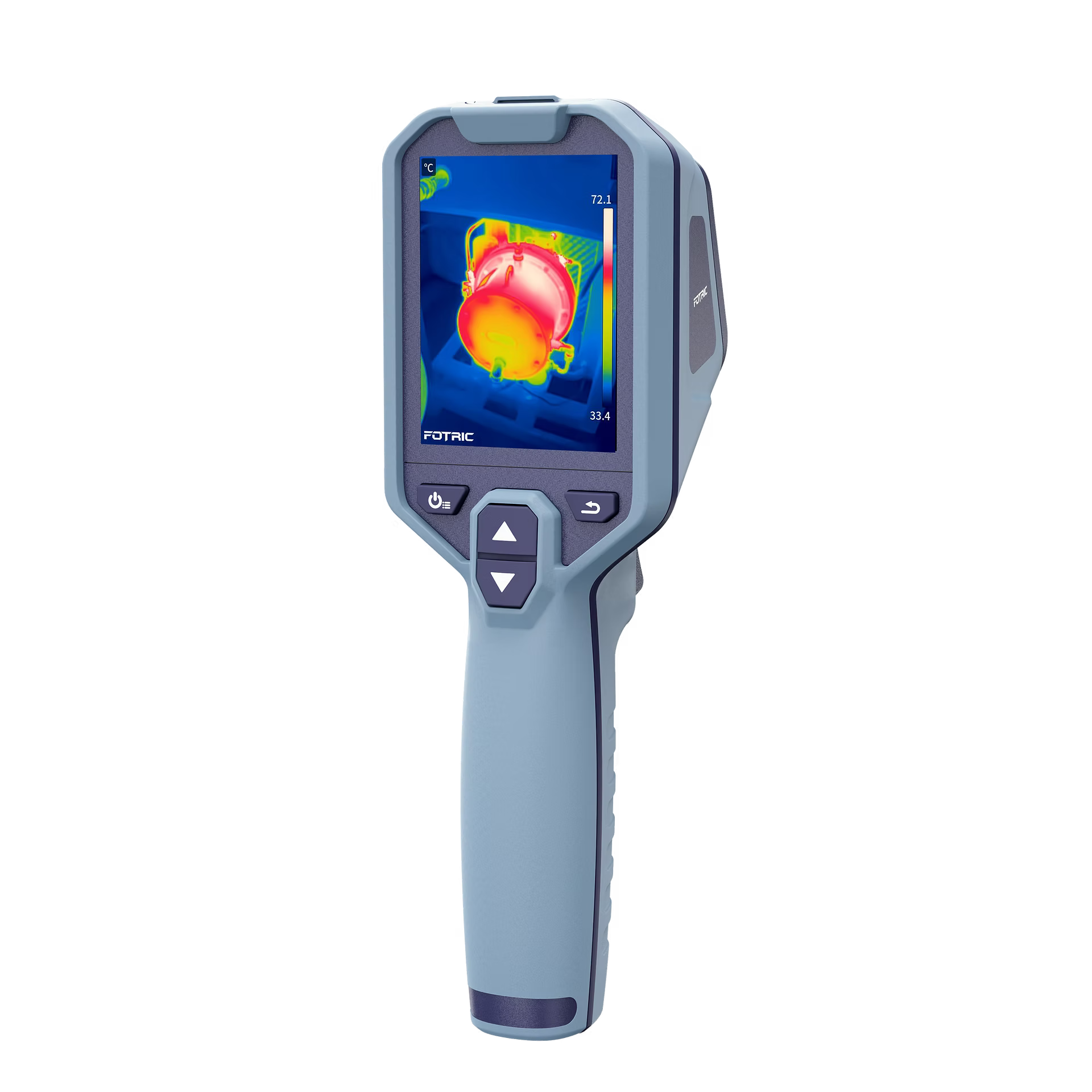

Product gallery
Specifications and images sourced from Fotric. Accuracy conditions: ambient temperature 15–35°C, target above 0°C, calibrated at 1 m. Actual battery runtime depends on ambient conditions and use.
