iBos CamBoss 150 crawler camera system with Boss150 6x6 IV drive crawler and KZ95CB camera head for pipes DN 150-1000 mm range, 500 m max length

iBos CamBoss 150 crawler camera system with Boss150 6x6 IV drive crawler and KZ95CB camera head for pipes DN 150-1000 mm range, 500 m max length

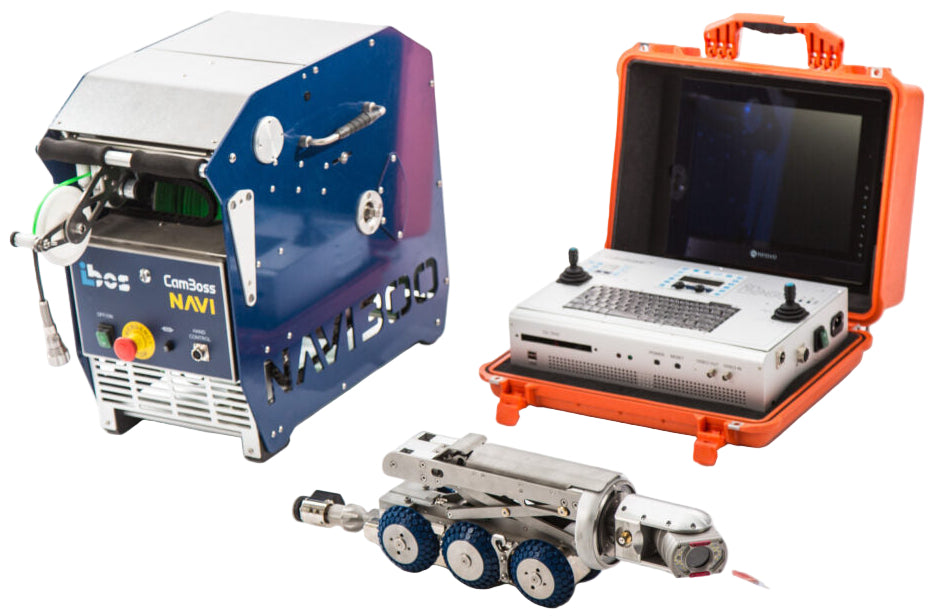

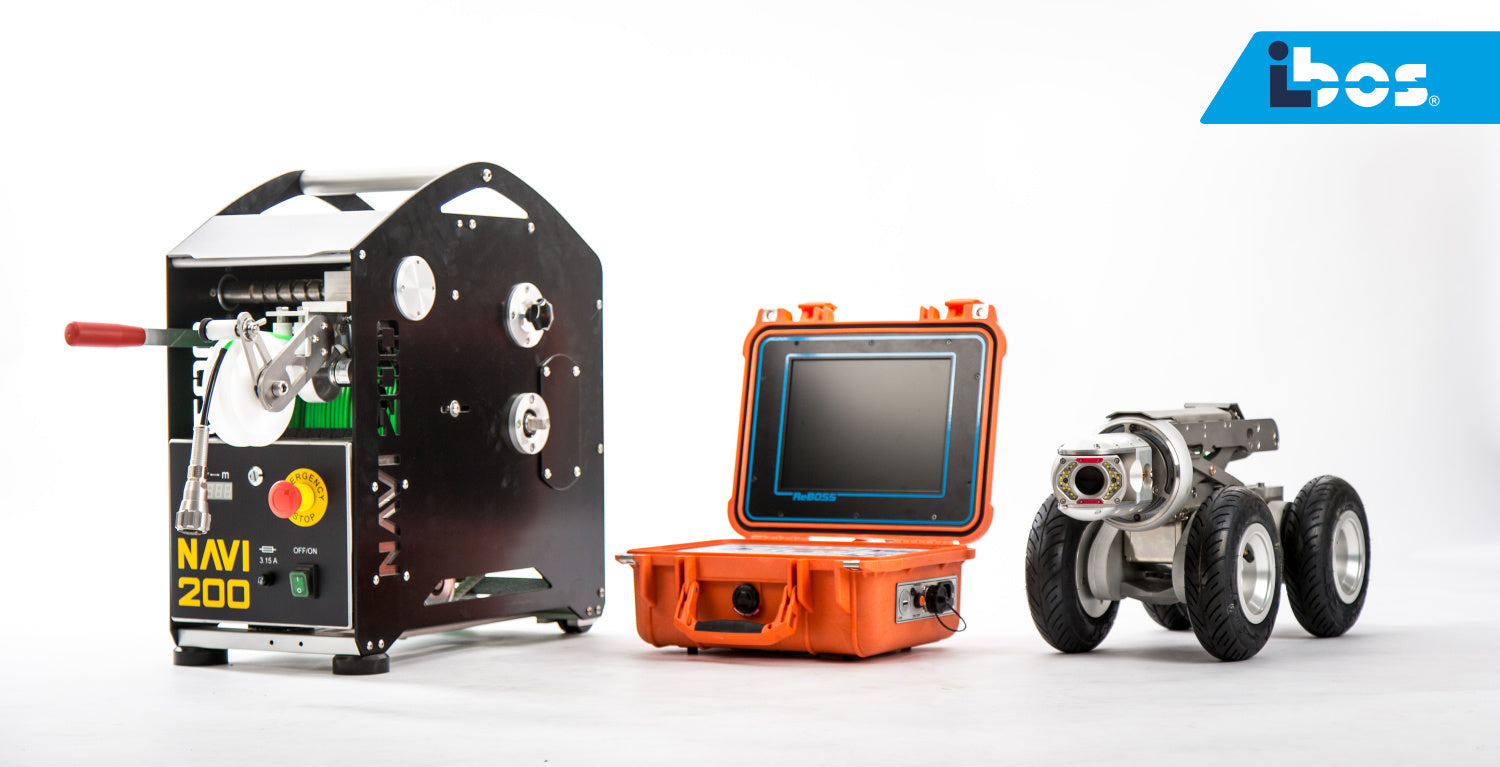

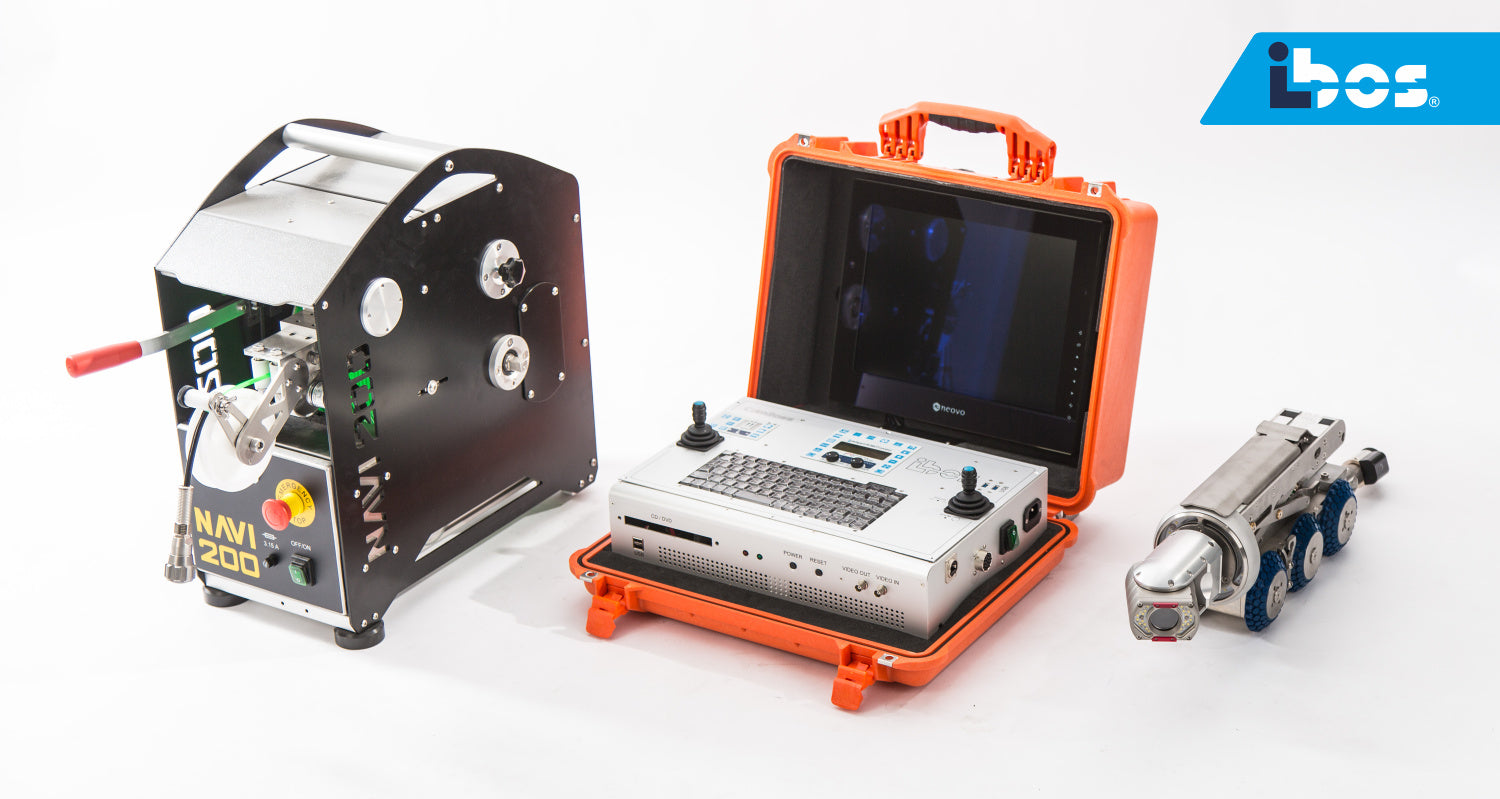

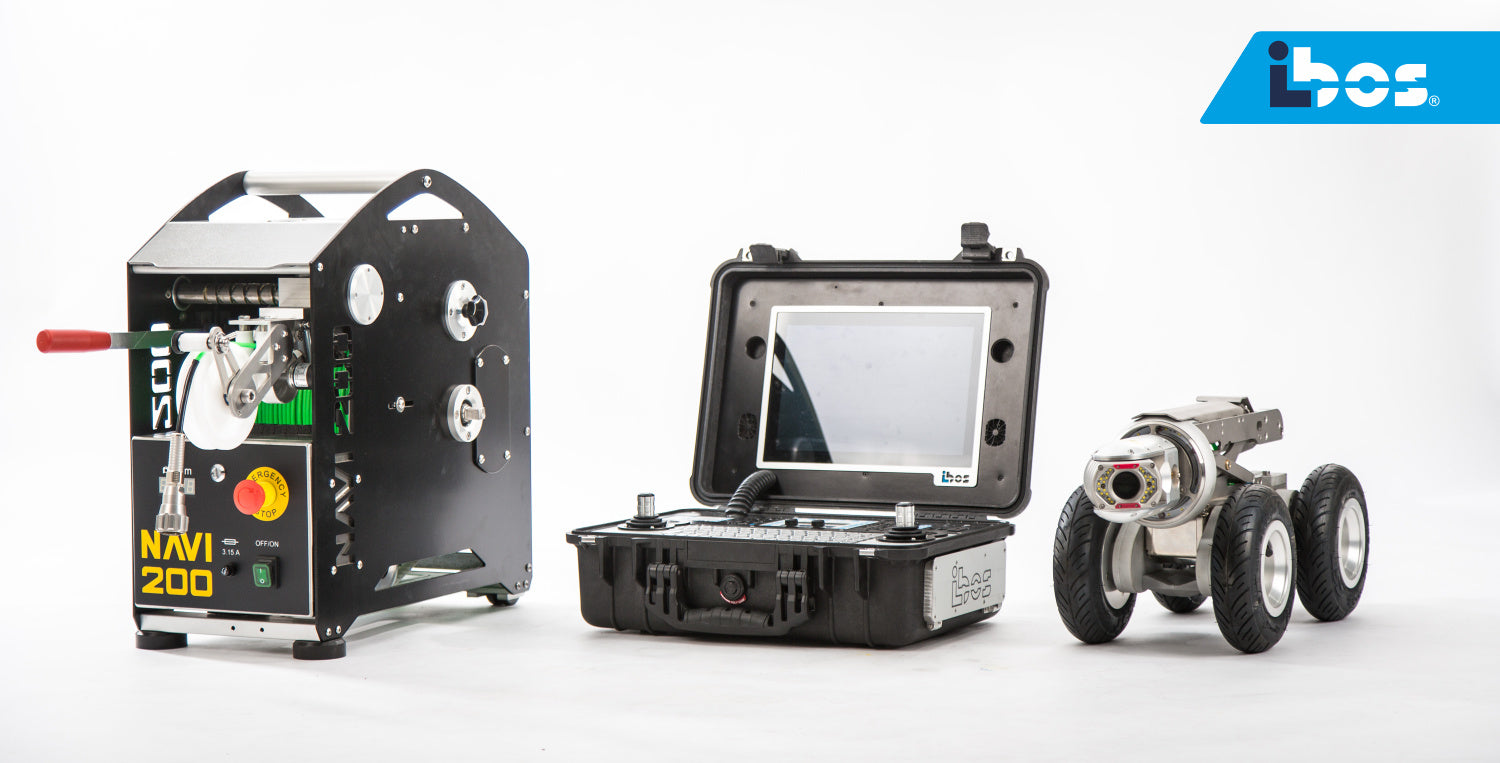

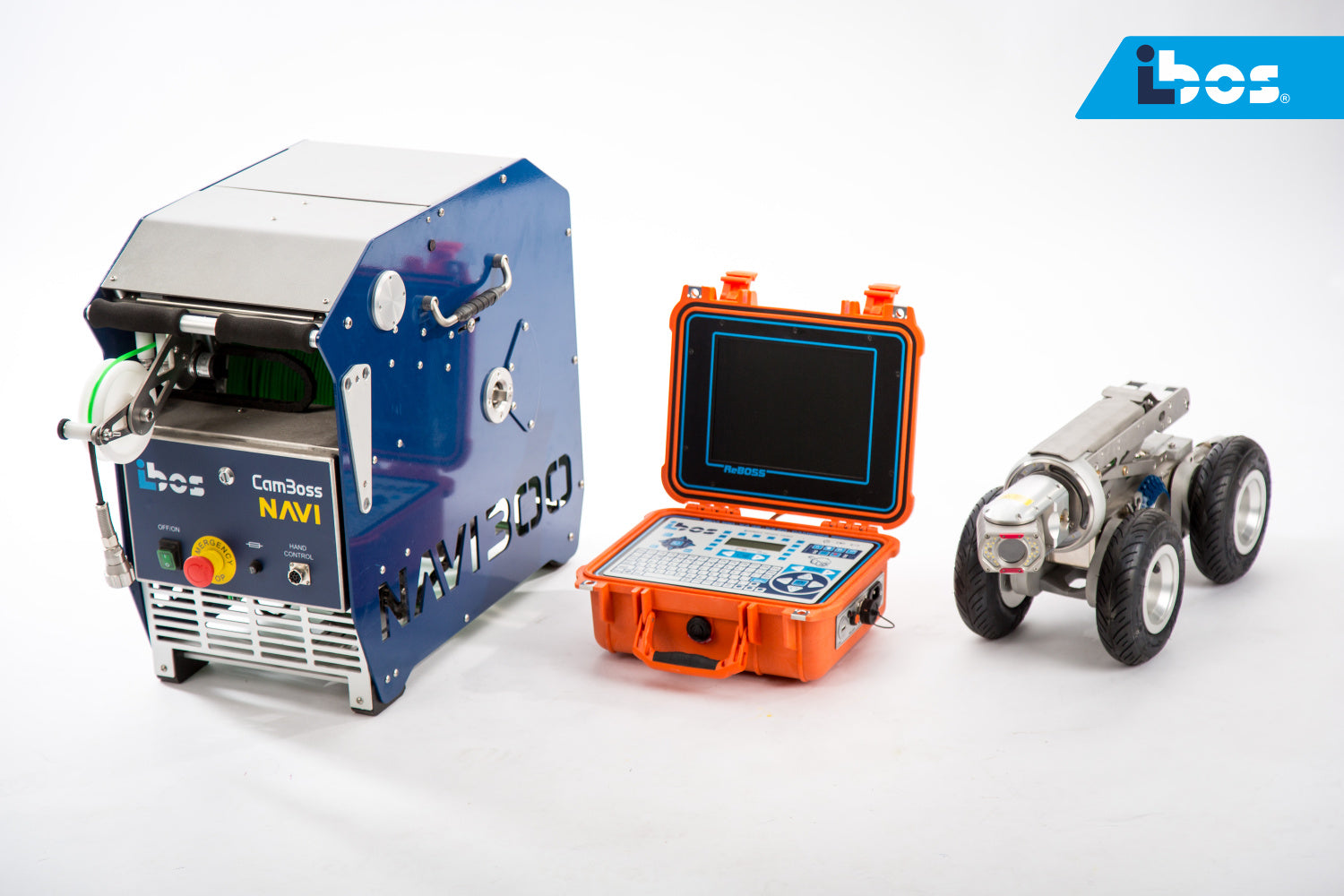

The CamBoss system offers various combinations of camera crawlers, cable drums, control units and possible accessories.
Thanks to it´s variability, each customer can choose a combination that exactly meets his requirements
The basic building blocks of the CamBoss product line are three camera carts – Boss 100, 135 and 150_IV
The top line of the IBOS camera systems – Camboss 150_IV. This camera system is designed for pipeline monitoring DN 150 – DN 1200 (possible up to DN 2000 when using special adapters)

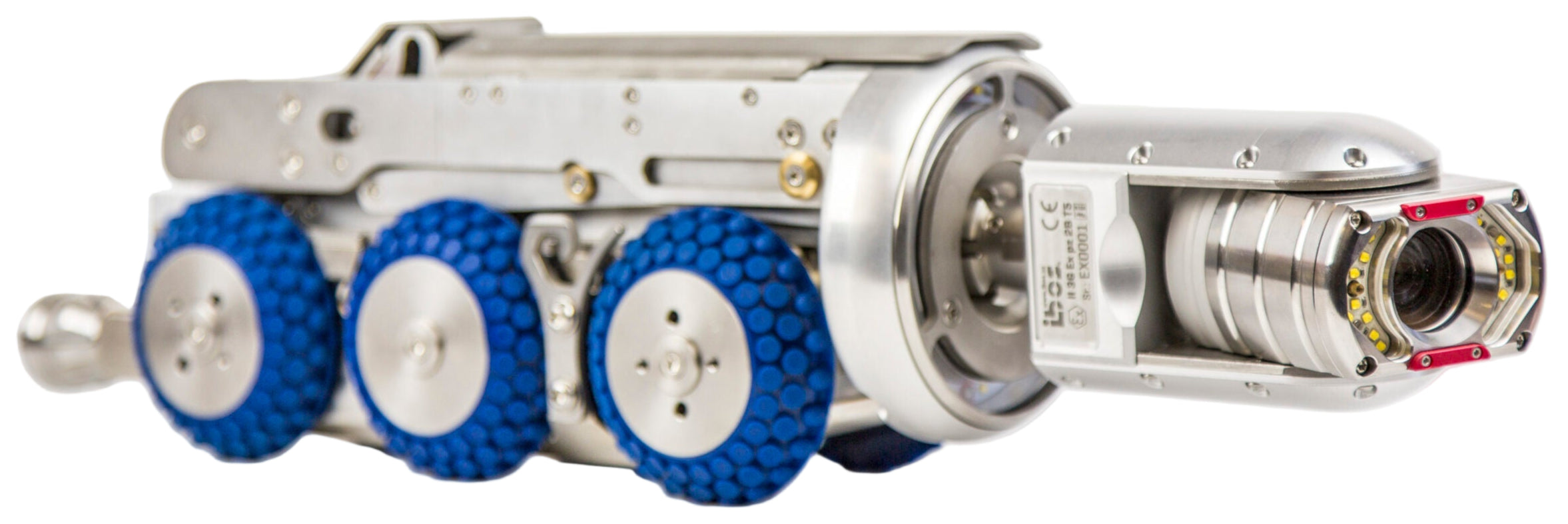

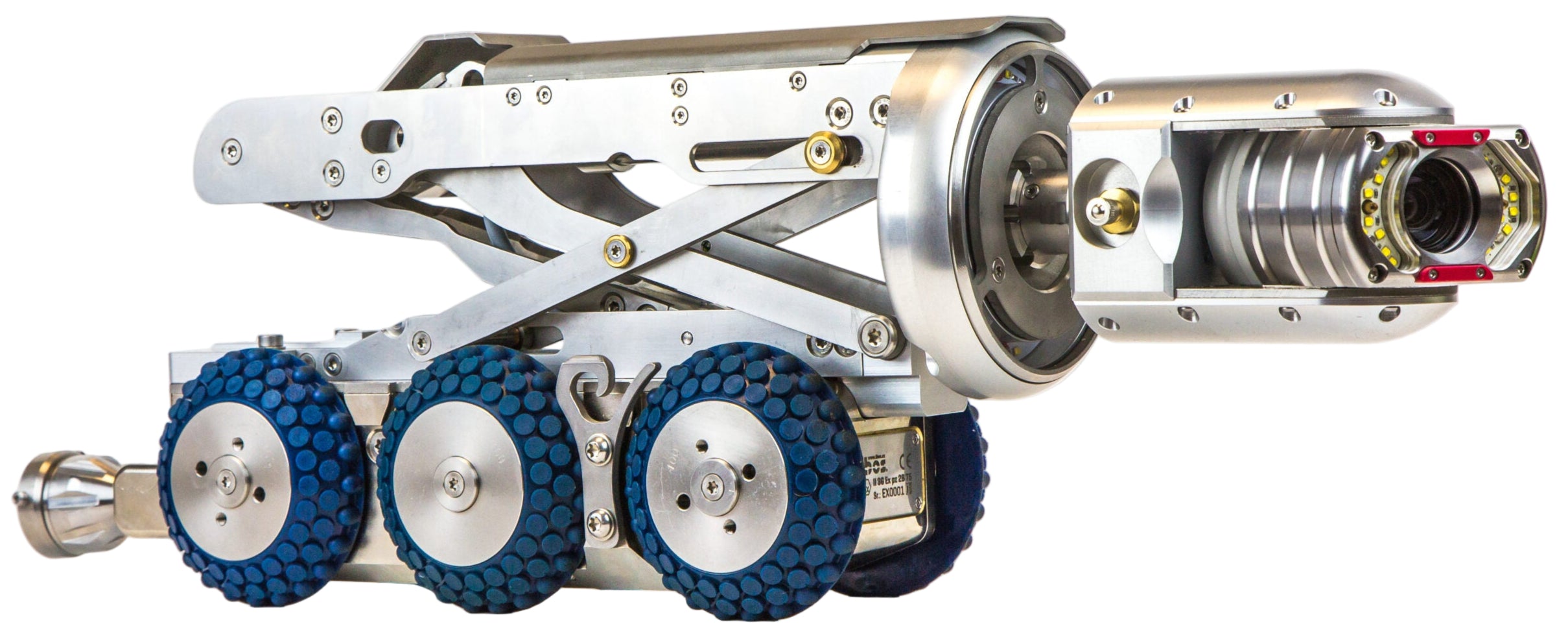

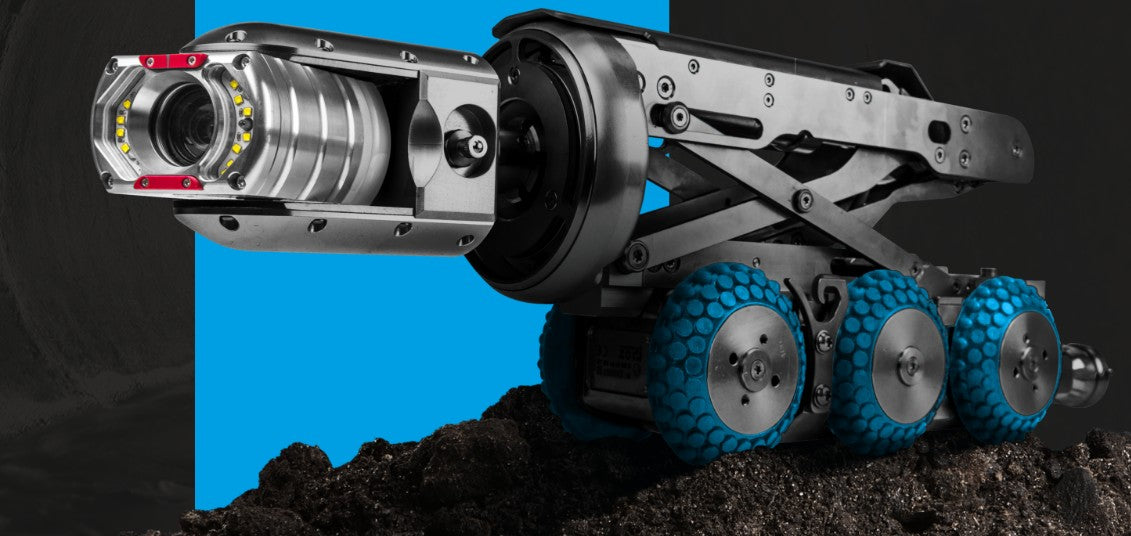

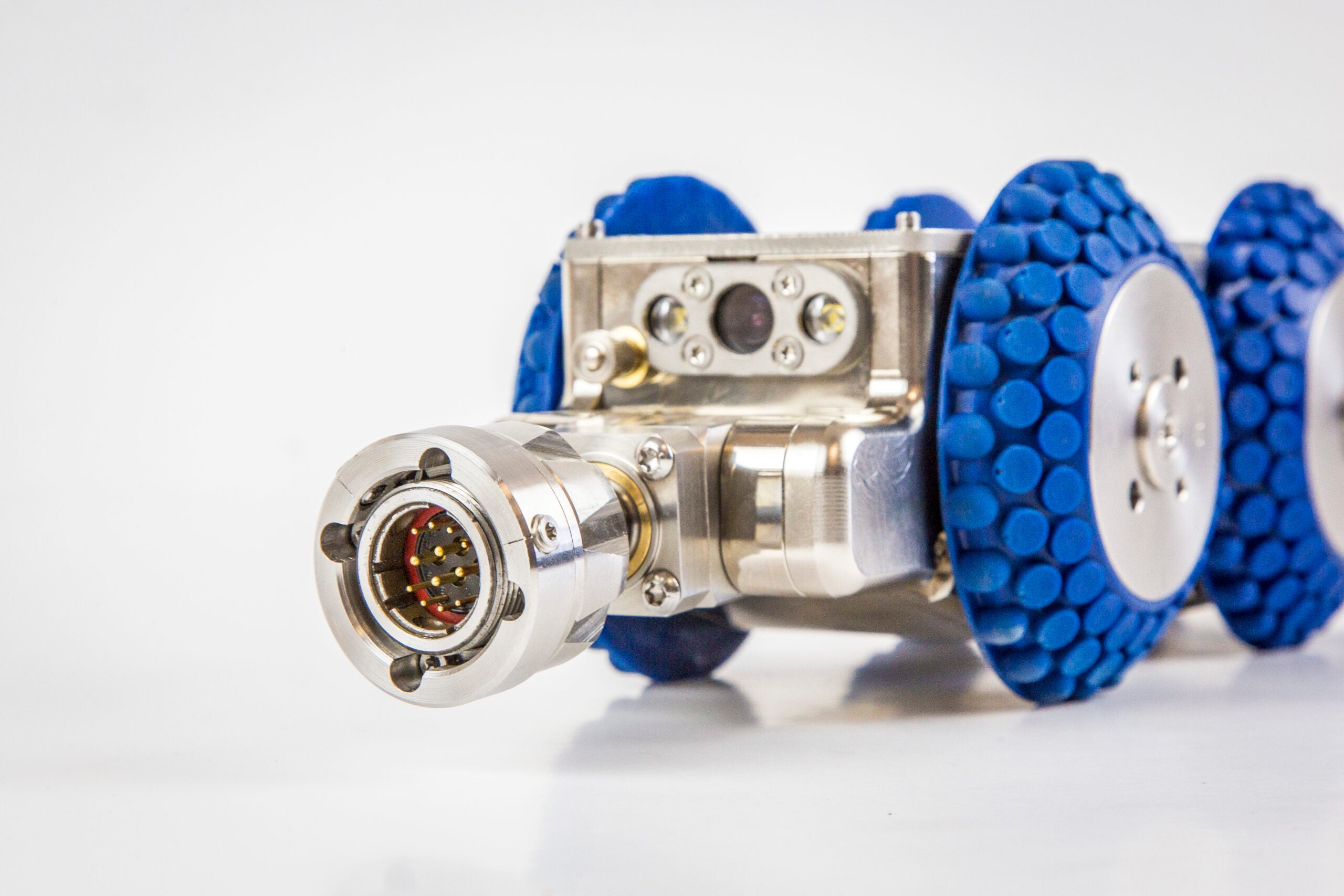

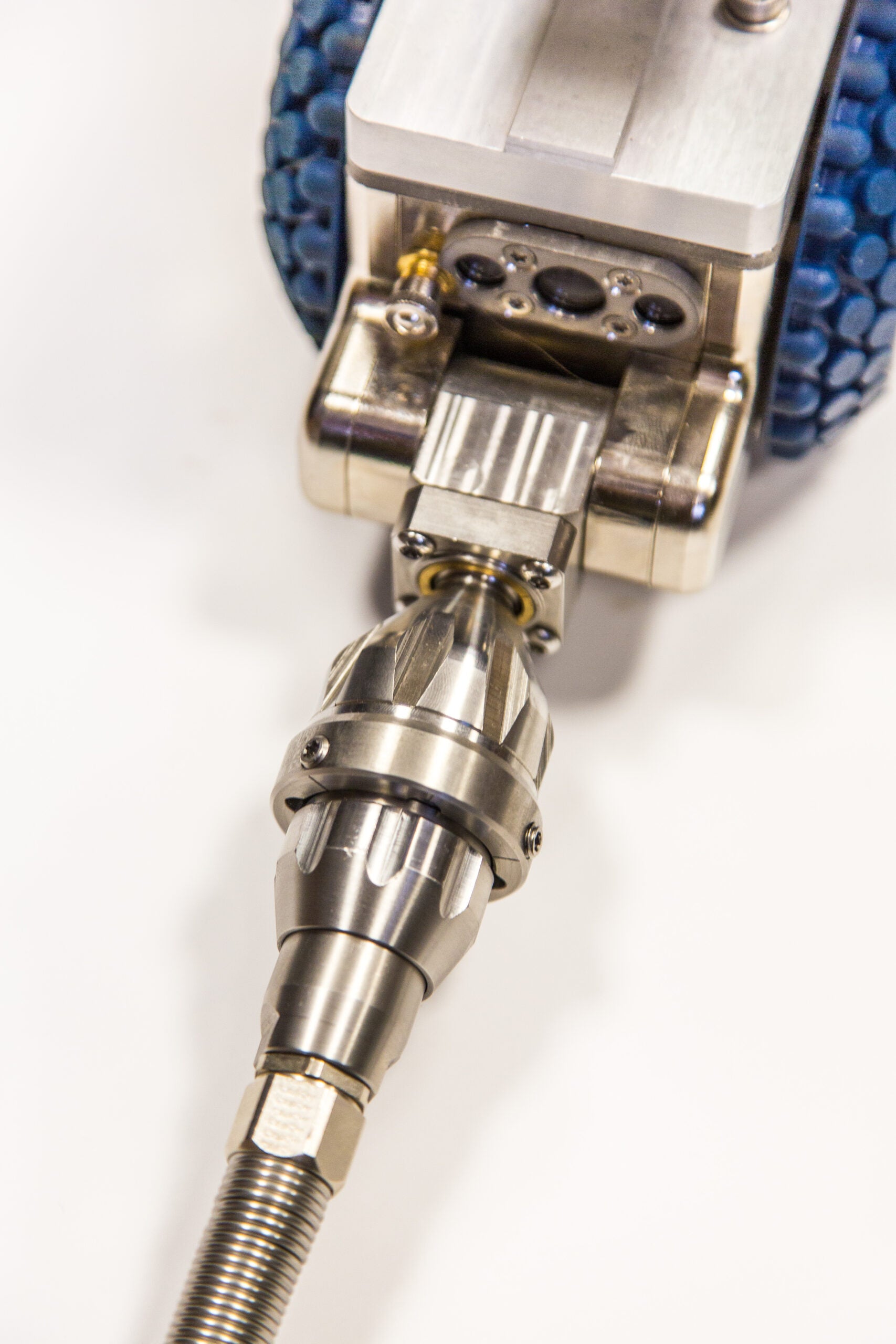

The twin-engine camera crawler CamBoss 150_IV offers high performance and a wide range of accessories, such as Quick-Lock, Trimaran, thanks to which it solves any situation quickly and efficiently

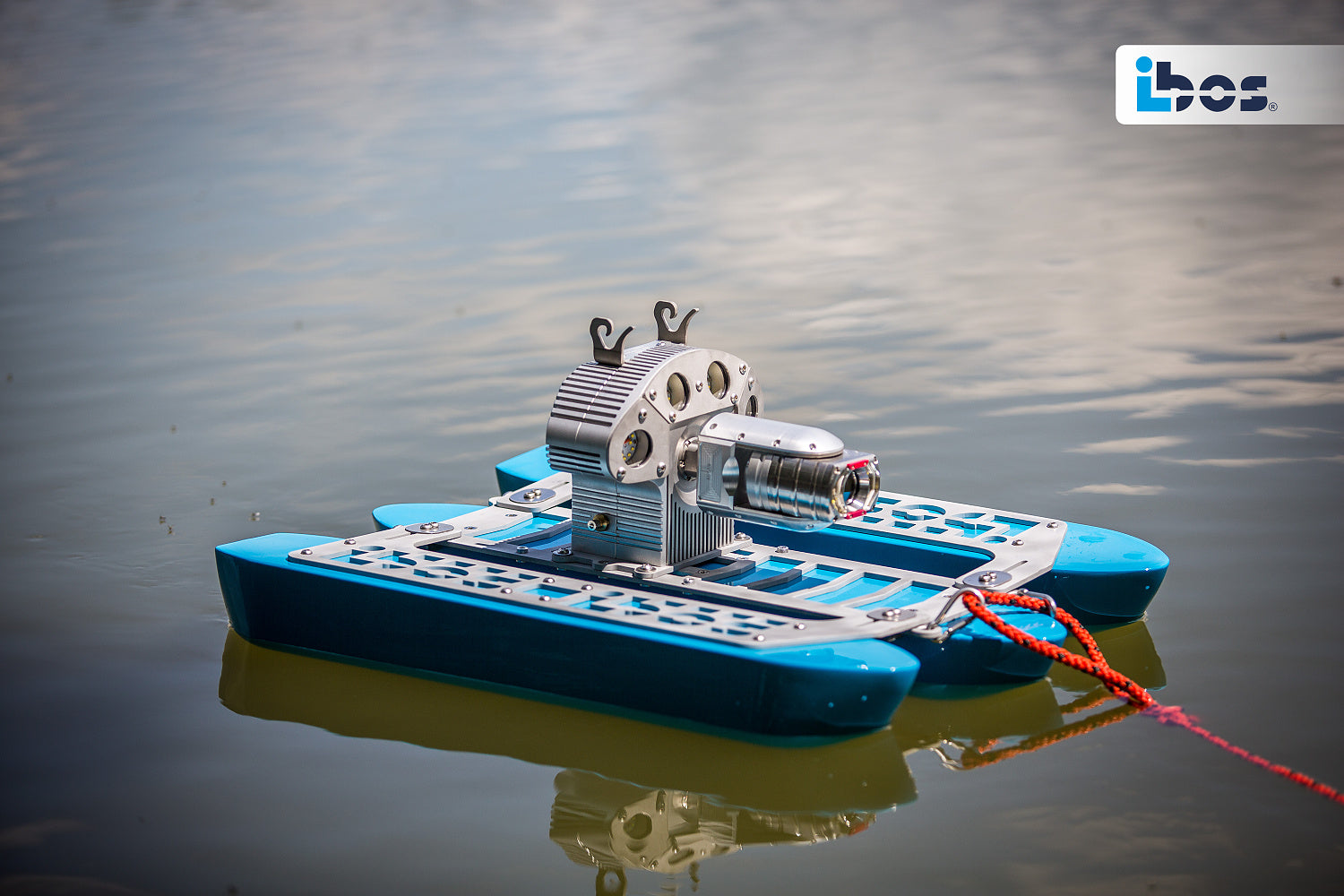

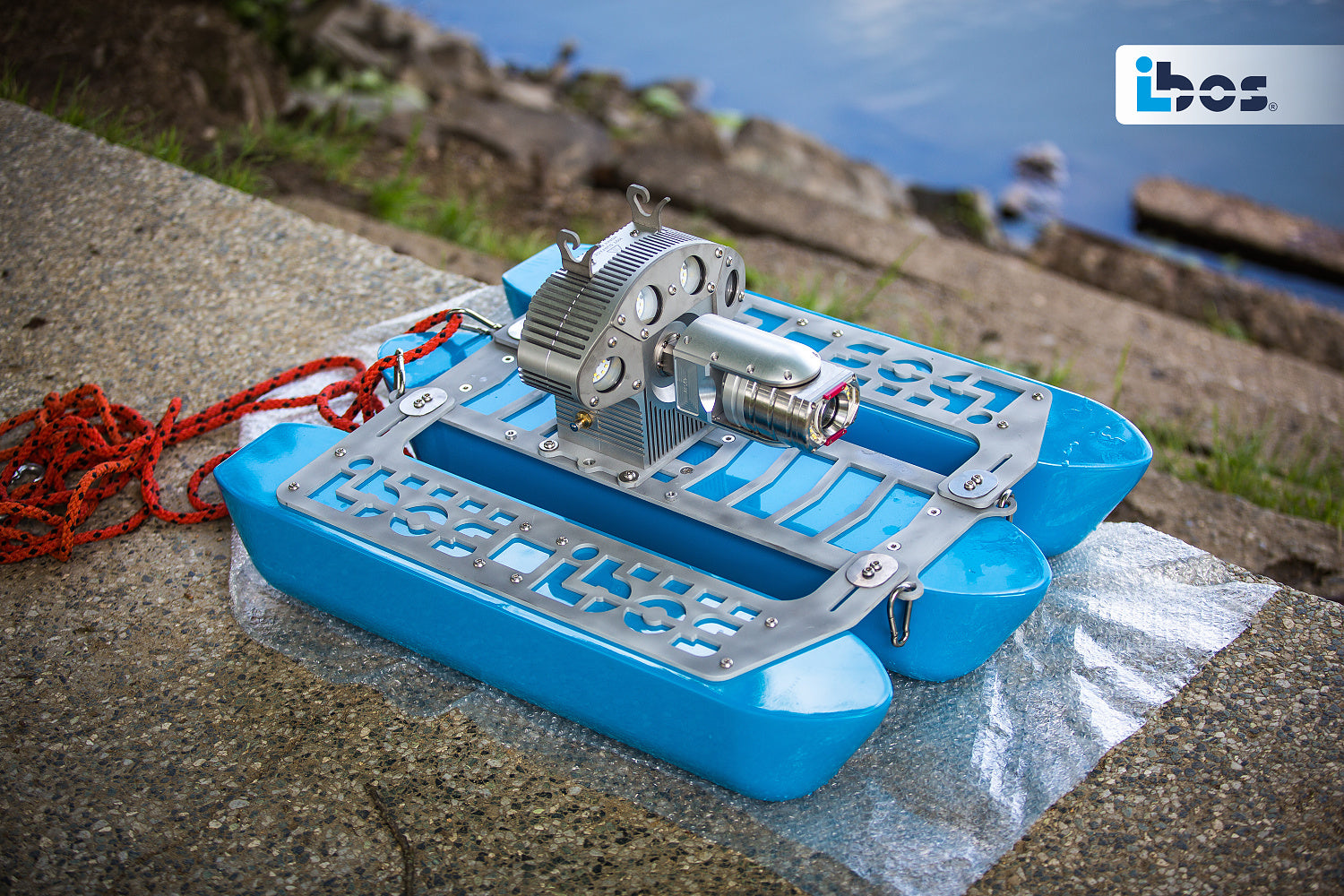

Trimaran – a floating camera base designed instead of a trolley for a pipe with a larger DN (approx. from DN 1000 and above) and a constant level (and therefore the camera trolley cannot be used)
Quick-Lock – an adapter enabling the installation of repair inserts of the same name intended for local repairs of pipe leaks
The CamBoss control unit can be supplemented with the controlling of an electric cutting robot
The CamBoss cable drum is offered with a cable length 200-500 m
You can choose a manual version or a fully automatic cable drum fitted with wheels and a retractable handle in case of a mobile system

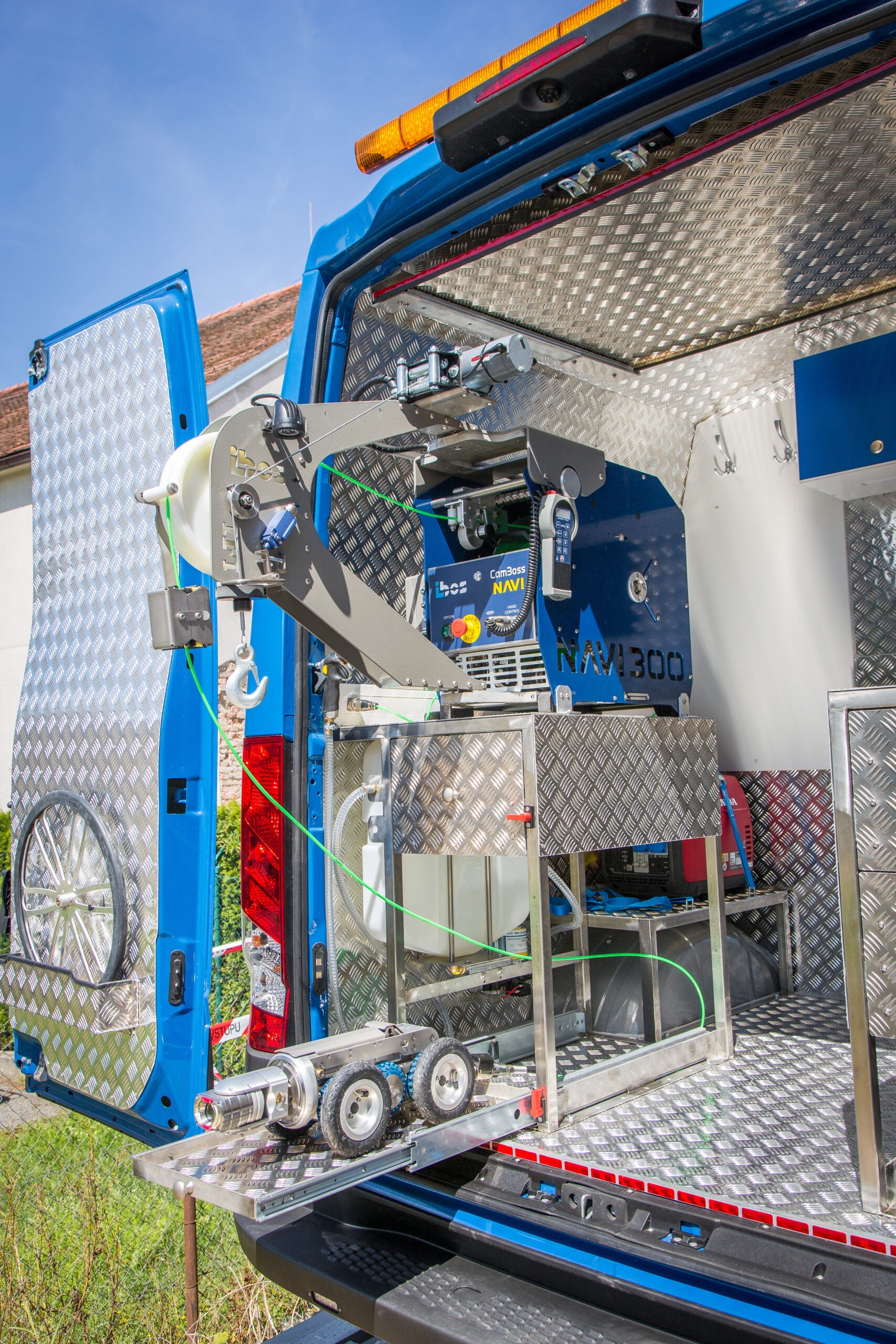

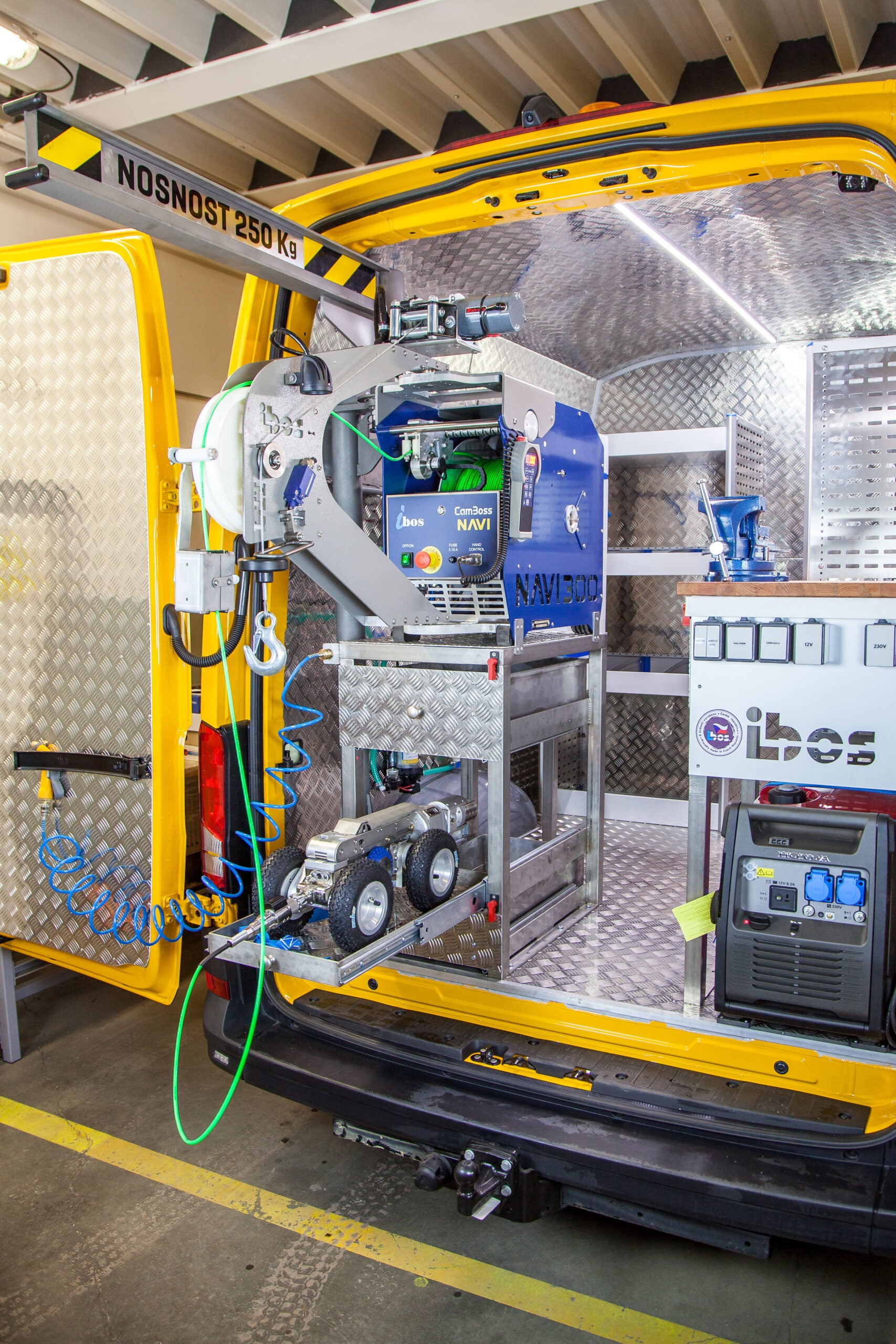

If the camera is built-into the van, it is possible to equip the cable drum with a lowering arm for a camera crawler
The control box (or built-in control unit) is controlled via a PC, equipped with the necessary programs, including the DigiCAN sewage software. Alternatively, you can choose a control box without a PC suitable for inspection without the need to generate inspection reports
The necessary components can be easily and quickly replaced (polyurethane wheels, “tractor” wheels, manual arm, manual cable drum)

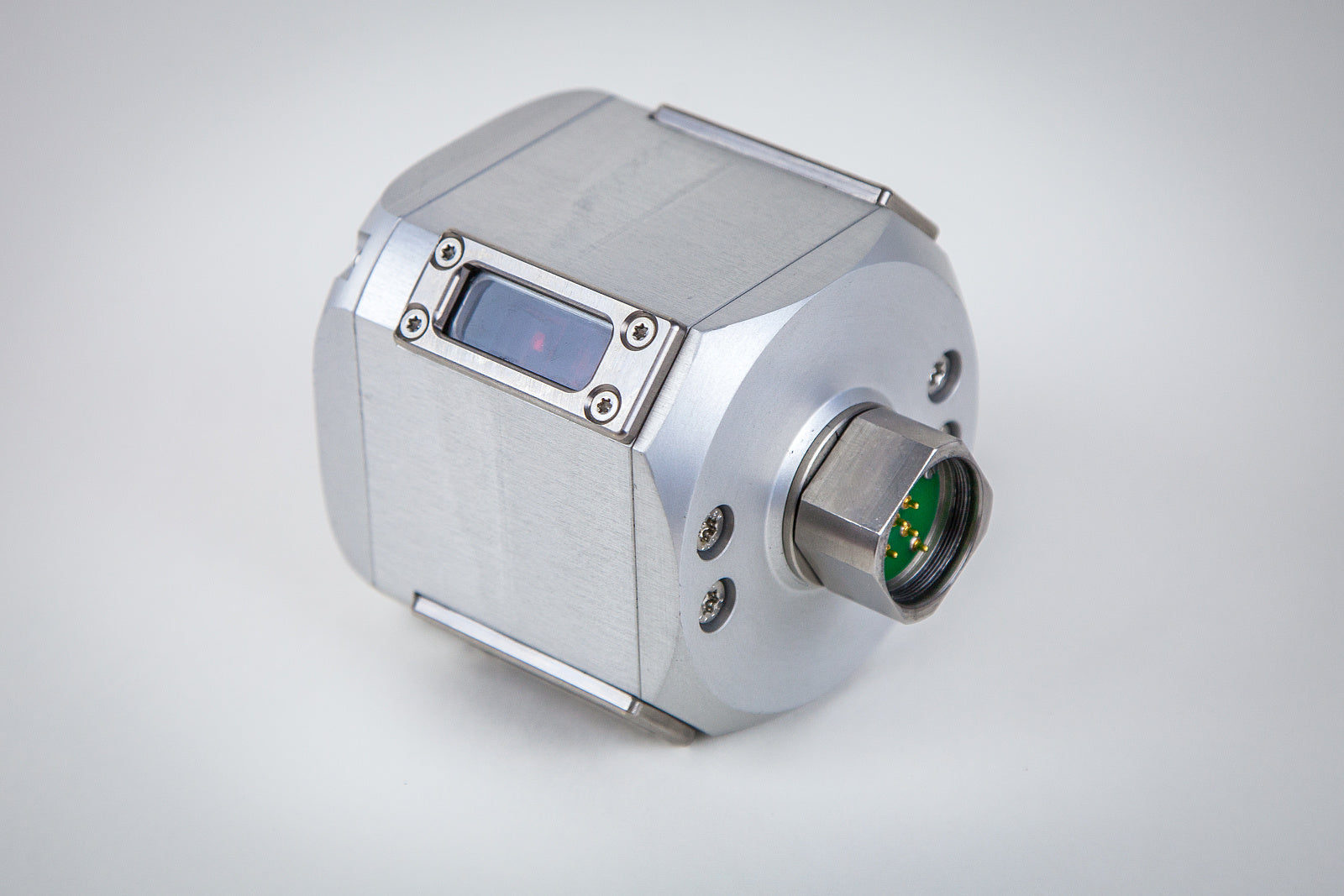

The crawler can be equipped with a satellite superstructure for connections monitoring
The system can also be supplied in an ATEX version for explosive environments
