iBos HD350 drain camera system with HD resolution for DN 50-300 mm pipes includes 80 m push-rod cable

iBos HD350 drain camera system with HD resolution for DN 50-300 mm pipes includes 80 m push-rod cable

General description:
New generation HD-resolution 80 m push-rod camera for detailed sewer inspections
Suitable for pipelines from DN 50 to DN 300 mm
Camera heads:
Two interchangeable heads: Axial HD46 and Rotary HD60
Full HD resolution (1920 × 1080 px)
Integrated 33 kHz probe
Built-in pressure sensor
Push-Rod and Reel:
Wheeled reel with telescopic handle for portability
Capacity for up to 80 m of 7.6 mm push-rod cable (available in 50 m, 60 m, and 80 m lengths)
Control options:
HD350 C (Cable):
Controlled via HD Box unit with touch panel and integrated PC
Internal battery for portable use
Runs DigiCan PRO software for inspection reporting
HD350 W (Wireless):
Controlled wirelessly via Samsung tablet
Powered by two replaceable 5 Ah batteries
Runs DigiCan or HD Can software
Summary Table:
Pipeline Range: DN 50 – DN 300 mm
Camera Heads: Axial (HD46) & Rotary (HD60), Full HD
Additional Tools: 33 kHz probe, pressure sensor
Cable Reel Capacity: 80 m of 7.6 mm cable
Mobility Features: Wheels and telescopic handle
Control Variants: HD Box (C) or Wireless Tablet (W)
Software: DigiCan / DigiCan PRO / HD Can

The new generation of IBOS plug-in cameras has an image in HD resolution
A higher quality output from such a camera provides better possibilities for evaluating the inspection and a greater chance of detecting possible defects and damage to the pipeline system
A new generation of push-rod camera with an axial or rotary camera head with FULL HD resolution for detailed sewer inspection in the range of DN 50 – DN 300 mm

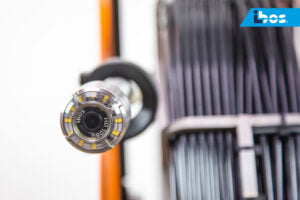

Axial camera head HD46 and rotary HD60 offer a resolution of 1920 x 1080 pix (Full HD image) and are equipped with an integrated 33 kHz probe and pressure sensor

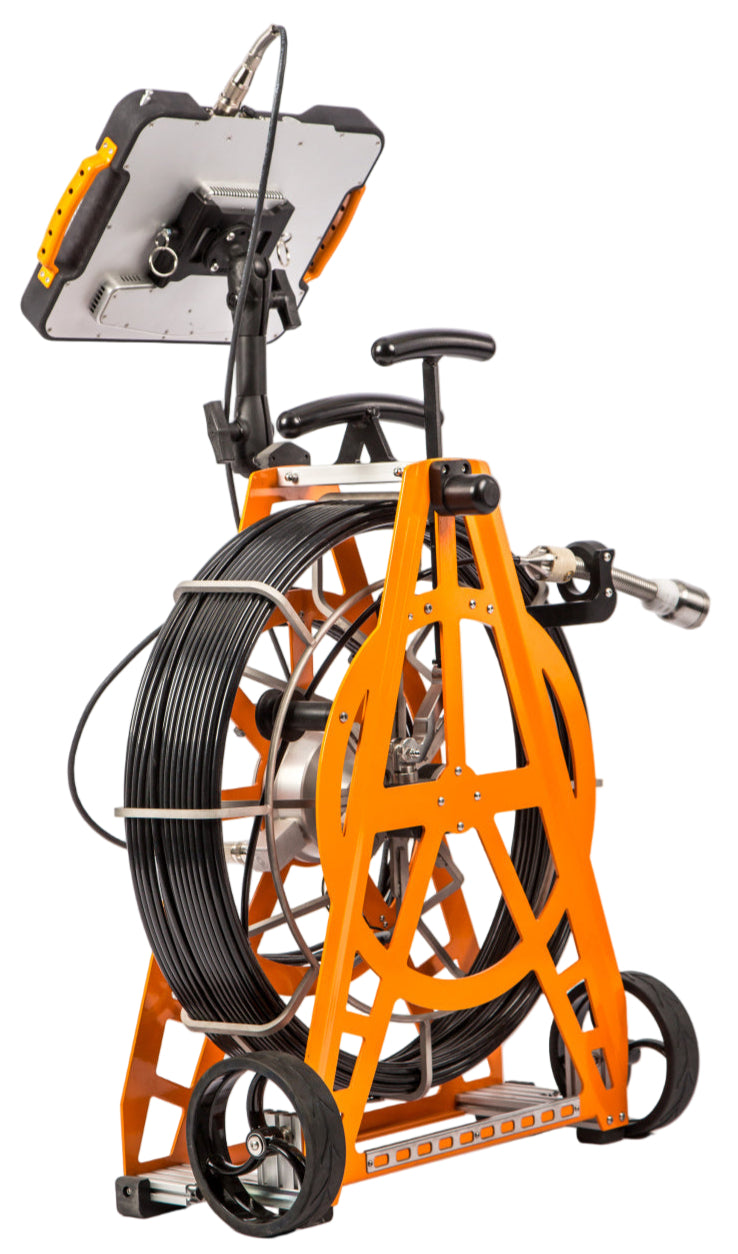

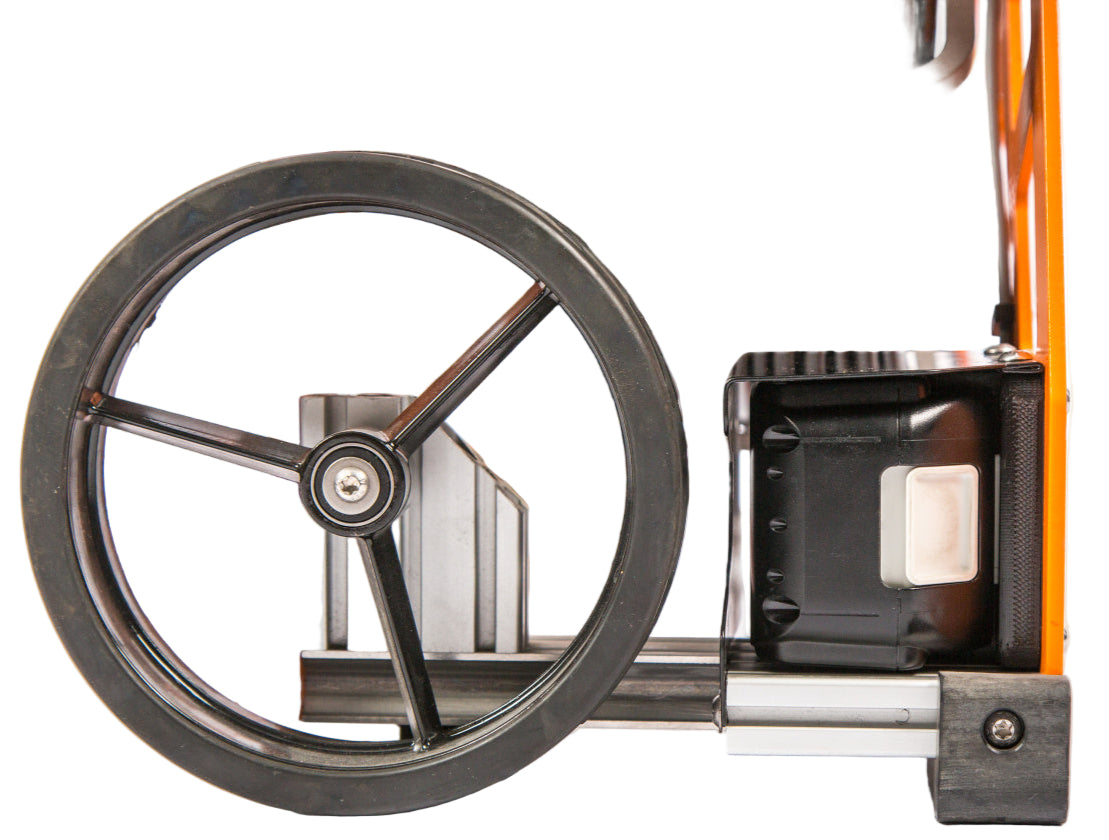

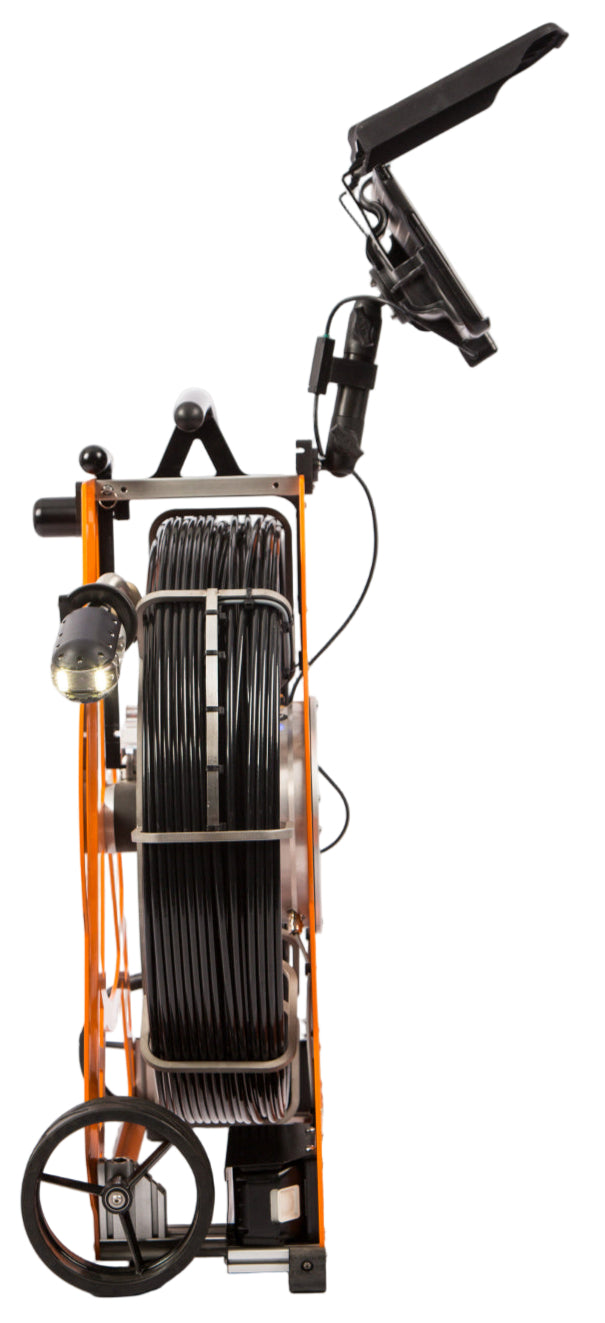

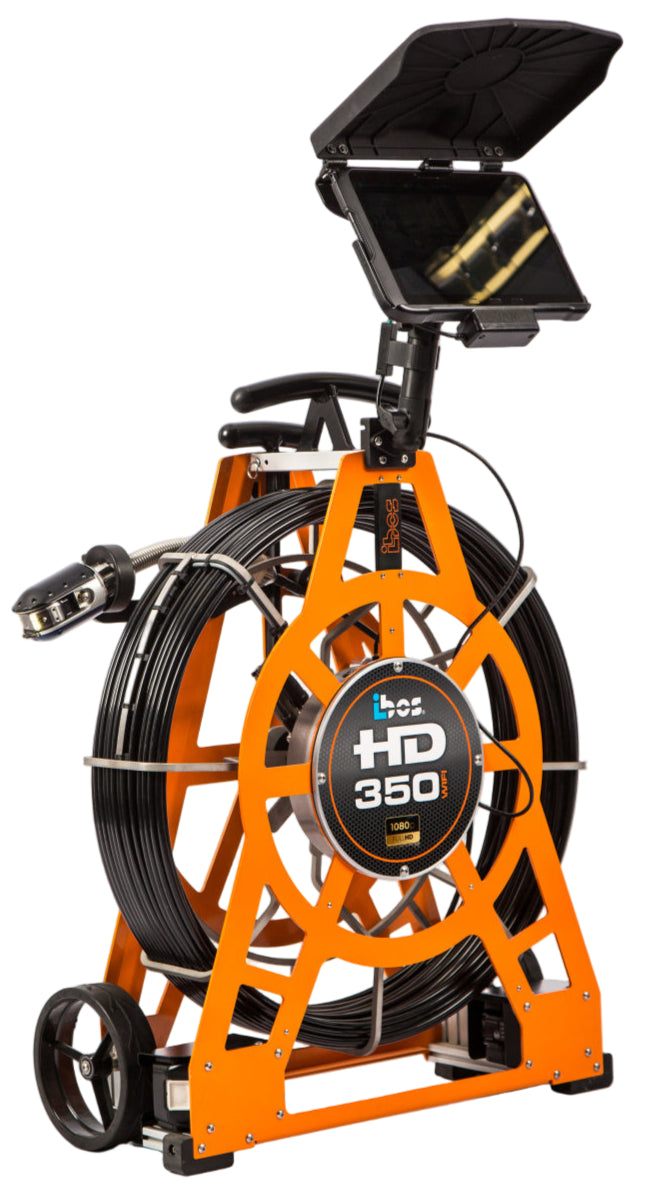

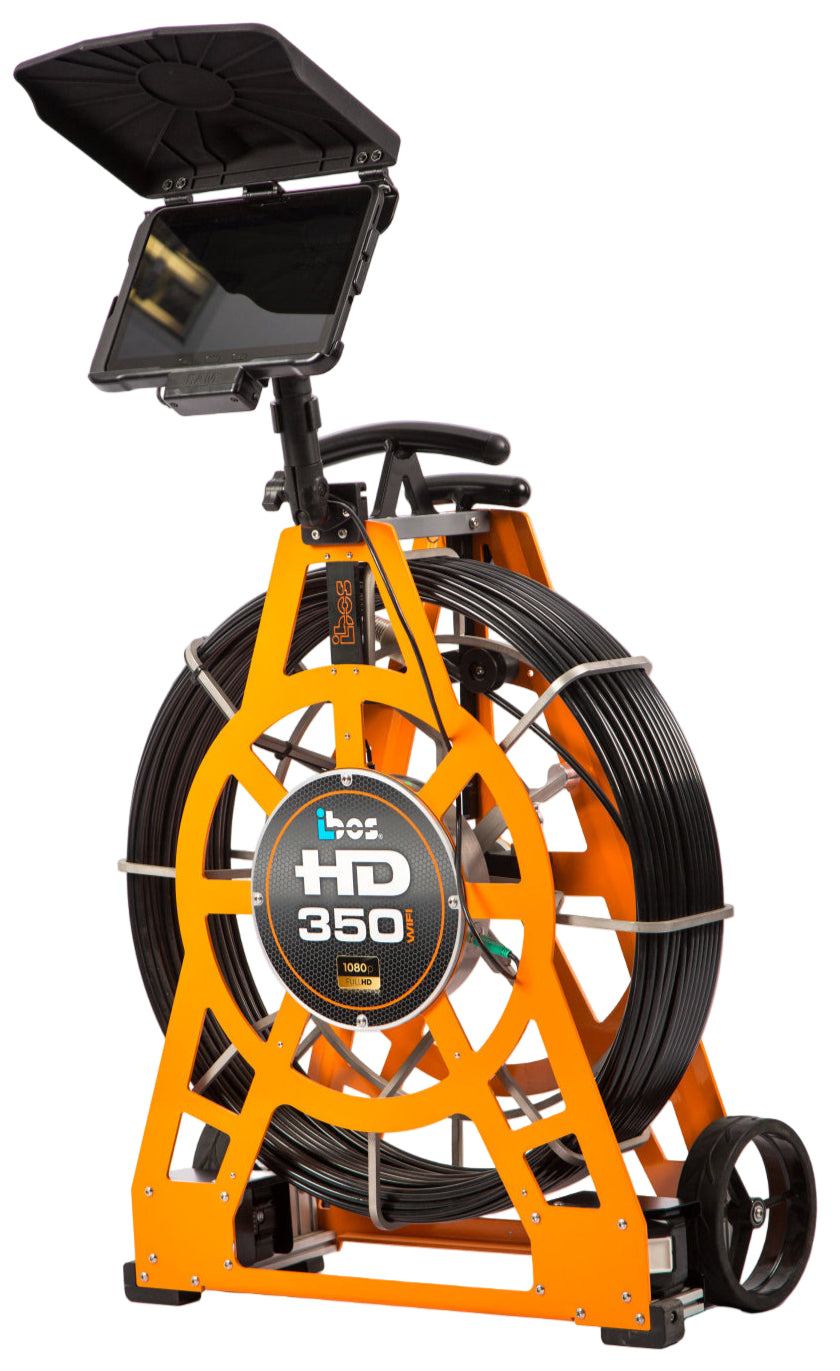

The cable reel is equipped with wheels and telescopic handle for easy manipulation
The capacity of the HD350 reel is 80m of 7,6mm push-rod cable (standard push-rod lengths 50, 60 and 80 m)

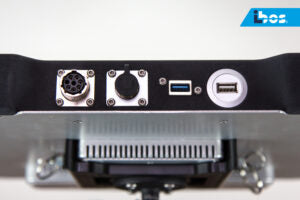

variant HD350 C: the camera is controlled by the HD Box control unit with touch control panel, integrated PC and battery
Thanks to the integrated PC, the control unit can be equipped with DigiCan PRO software for creating protocols from camera inspections
The system is powered by the control unit, or its accumulators variant HD350 W: the camera is controlled using a Samsung tablet, which is connected wirelessly
The system is powered by two 5 Ah replaceable batteries. Software – DigiCan or HD Can
