Home » Ketta 1-1/2 inch FKT twin impeller fire pump pedestal mounted with 3/4 inch keyed input shaft 300 lpm 90 m head
Ketta

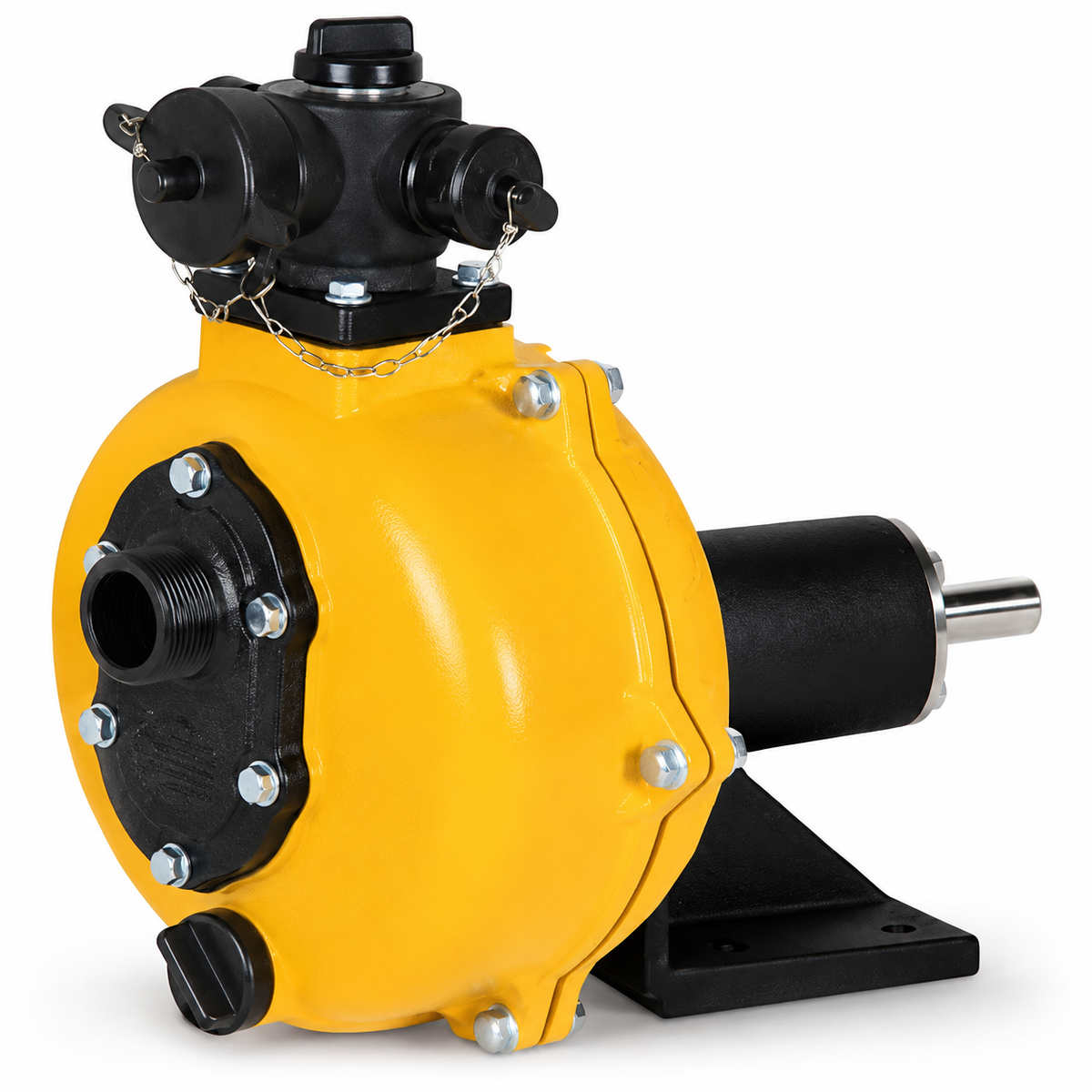

Ketta 1-1/2 inch FKT twin impeller fire pump pedestal mounted with 3/4 inch keyed input shaft 300 lpm 90 m head

Available
SKU: 10.1315
$1,470.00 NZD excl GST
Ketta FKT Yellow twin impeller pump

High-pressure twin impeller pump

Ketta FKT Yellow twin impeller pump

A compact, self-priming high-pressure pump for irrigation, wash-down, high-head water transfer and firefighting. Input shaft is 3/4 inch diameter keyed.

300 lpmMaximum flow
90 mMaximum head
9 barMaximum pressure
Ketta FKT Yellow twin impeller pump

Applications

Irrigation
Wash-down
High-head transfer
Firefighting

Specifications

Pump type
Twin impeller, self-priming
Maximum flow
300 lpm (79 gpm)
Maximum head
90 m
Maximum pressure
9 bar (130 psi)
Maximum suction lift
7.5 m (25 ft)
Inlet
40 mm (1-1/2 inch) BSP(M)
Primary outlet
40 mm (1-1/2 inch) BSP(M)
Side outlets
2 × 25 mm (1 inch) BSP(M)

Performance curve

High pressure across the operating range

The twin-impeller design develops up to 90 m head for long hose runs, elevated delivery points and demanding wash-down or firefighting duties.

Performance curve is indicative and based on the supplied pump data. Actual performance varies with engine speed, suction conditions, hose size, fittings and installation losses.
