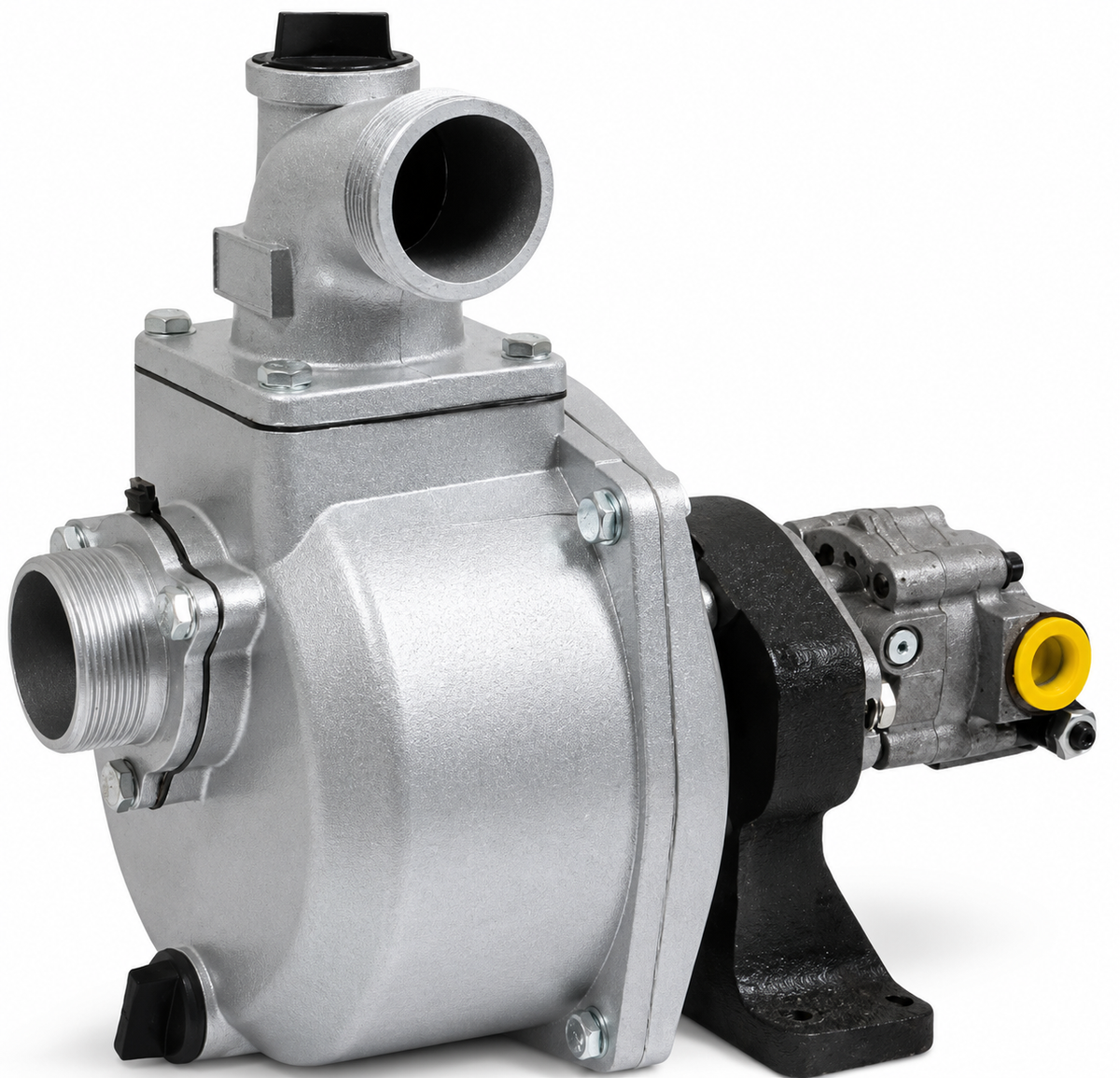

Ketta 7040SG 3 inch BSP(F) hydraulic driven semi-trash pump 980 lpm 34 m head

Ketta 7040SG 3 inch BSP(F) hydraulic driven semi-trash pump
3 inch NPT(M) ports
Heavy duty Silicone Carbide mechanical seal
Close coupled hydraulic motor
Cast iron pedestal mount base with 4 x hole mount plate
Performance:
980 lpm
34 m head
Self-priming to 7.0 m
Hydraulic motor data:
12 hp hydraulic motor
Compatible with open or closed hydraulic systems
23 to 38 lpm (6 to 10 gpm) hydraulic fluid requirement
34 to 138 bar (500 to 2000 psi) hydraulic pressure requirement
Parker Gresen MGG20025 hydraulic motor data:
Displacement: 0.580 in.3 (9.5 cm3)
Max rpm: 5000
Rated flow per 1000 rpm (nominal): 21.51 gpm (9.5 lpm)
Max rated pressure (continuous): 2000 psi (138.0 bar)
Max rated pressure (intermittent): 2500 psi (172.5 bar)
Dimensions: 430 x 270 x 370 mm (L x W x H)
