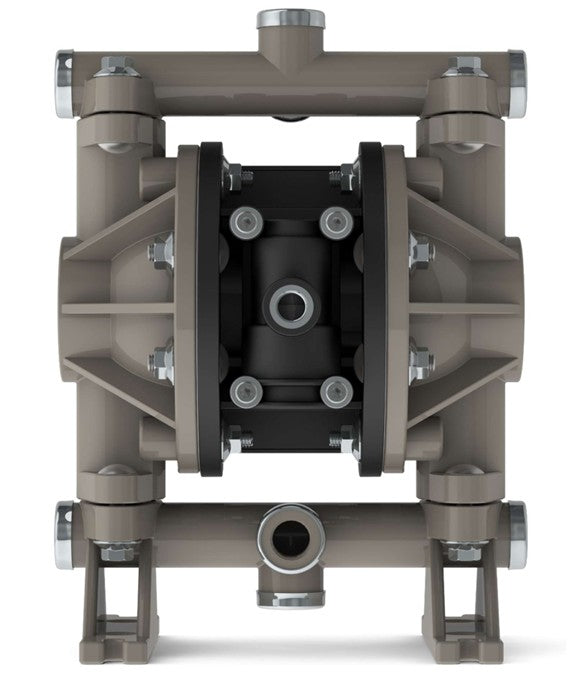

Ketta AOD150AF 13 mm 1/2 inch BSP(F) poly air operated diaphragm pump 49 lpm 6.9 bar (100 psi) - all options
Couldn't load pickup availability
Regular price
$862.00 NZD
excl GST
Ketta AOD150AF 13 mm 1/2 inch BSP(F) poly air operated diaphragm pump - all options
Suction and discharge size: 1/2 x 1/2 BSP(F)
Air inlet size: 6 mm (1/4 inch)
Pump body: MOC Polypropylene
Diaphragm material options: Buna-N, Neoprene, Santoprene, Hytrel, PTFE, Polyurethane
Ball materials: PTFE, Neoprene, 316SS

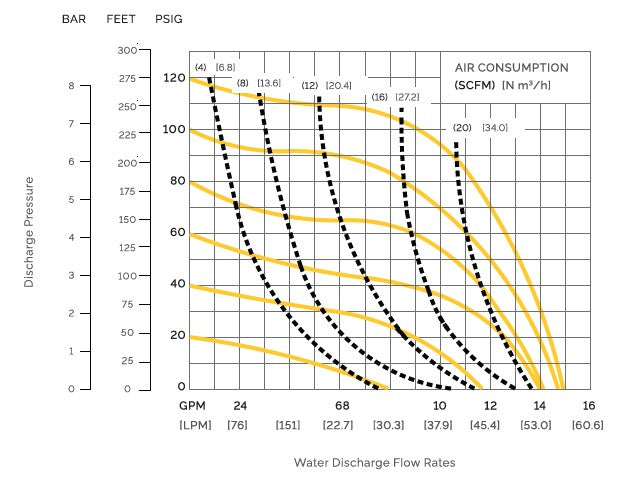

Performance: 49 lpm (13 gpm), 6.9 bar (100 psi)
Maximum solids size: 2.4 mm (3/32 inch)
Suction lift from dry: 4.5 m (15 ft)
Height: 293.2 mm (11.54 inch)
Width: 215.5 mm (8.48 inch)
Depth: 165 mm (6.49 inch)
