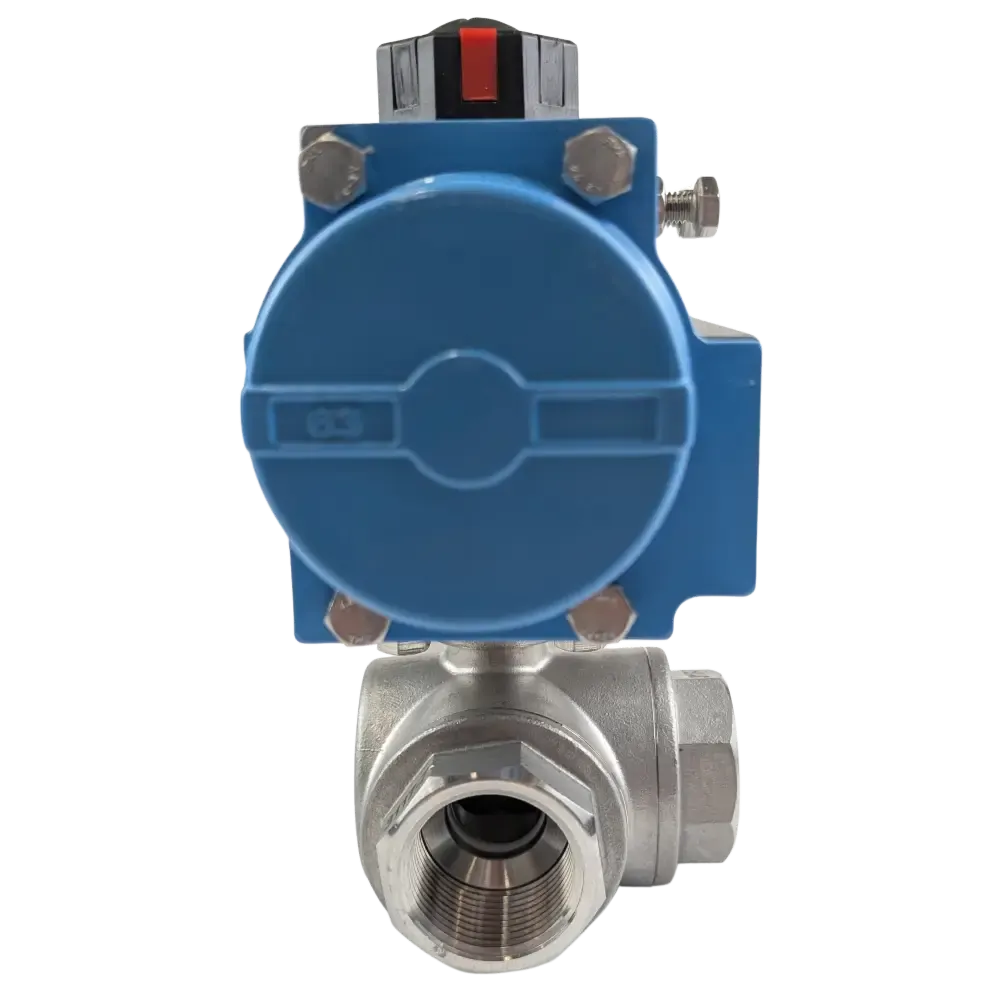

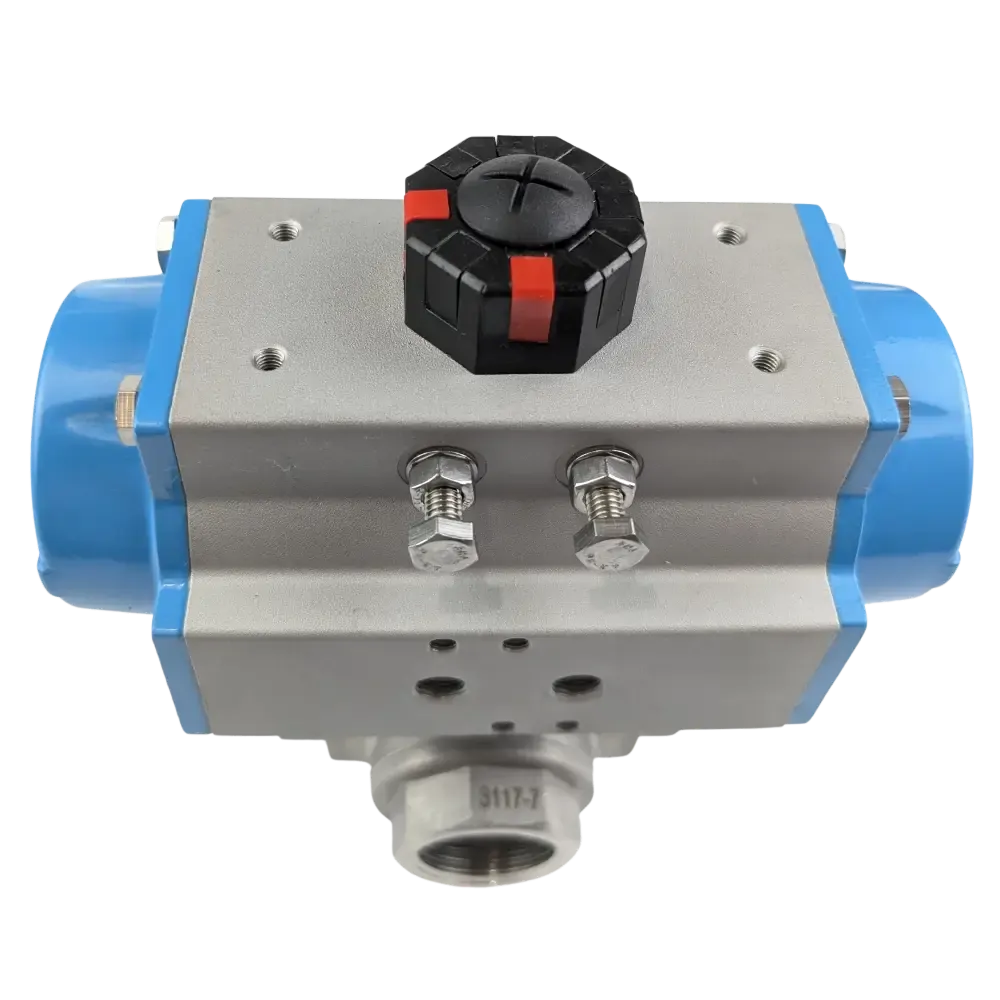

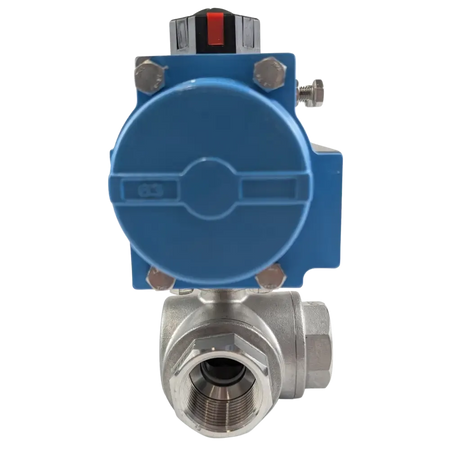

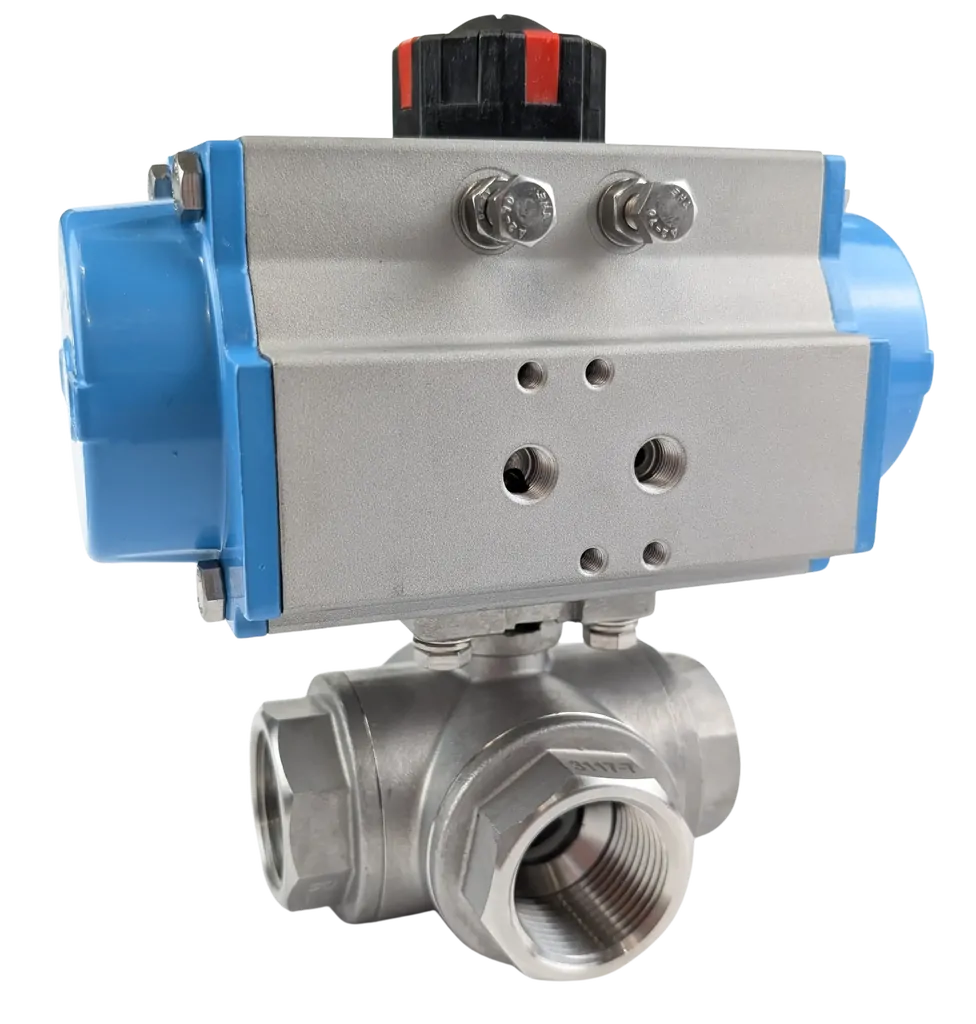

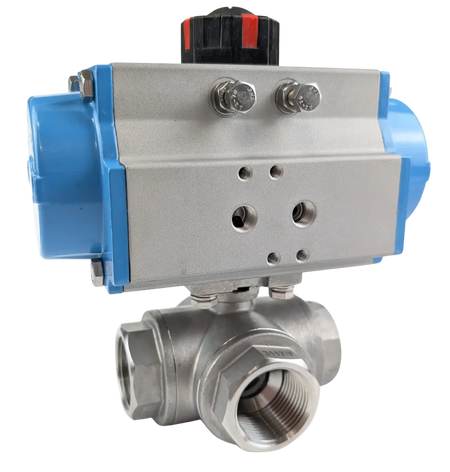

Ketta BLS3DR series pneumatic air operated 3 way stainless steel ball valve (double acting) 63 bar (900 psi) - all sizes

Ketta BLS3DR series pneumatic air operated 3 way stainless steel ball valve (double acting) 63 bar (900 psi) - all sizes
Sizes: 1/4 inch to 3 inch BSP(F)
Body: 316 Stainless Steel
Seat: reinforced PTFE
Pressure: 63 bar (900 psi) max
Temperature: -20°C to 180°C
Actuation: double acting pneumatic
Watermark approved
High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and double acting pneumatic actuator
Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration
Long neck to minimise any thermal transfer from valve to actuator
Reinforced PTFE seats for temperatures up to 180°C
Typical applications include water treatment, chemical, marine, petrochemical and general industry
