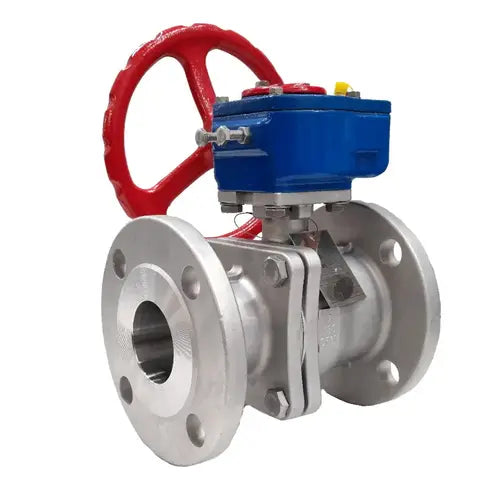

Ketta BLSF ball valve gearbox type 316 stainless steel ANSI 150 flanged 20 bar (290 psi) -20°C to 180°C - all sizes

Ketta BLSF ball valve gearbox type 316 stainless steel ANSI 150 flanged 20 bar (290 psi) -20°C to 180°C - all sizes
Size 15 mm to 300 mm
Body 316 Stainless Steel
Seat PTFE
Pressure 20 bar (290 psi) ambient
Temperature -20°C to 180°C
Actuation: gearbox
Fire Safe Approved
Two piece two way ANSI 150 lb flanged fire safe approved ball valve, lockable lever operation
316 Stainless Steel body, R-PTFE seats, FKM backing ring, live loaded packing and anti static device
Firesafe Approved API607 Sixth Edition, Cert. No 230679. ISO5211 Mounting Pad allowing direct coupling of actuation
Great for fuel applications, pipelines, water treatment and general industry
If you are using these on steam or other high temperature applications (above 120°C) and do not need the fire safe certification, we recommend going with a 50/50 stainless steel/PTFE seat to extend your valve life
Please note that AGA (Australian Gas Approval) is only rated at -20°C to 80°C
Design and Manufacture to ANSI B16.34
Face to Face comply with ANSI B16.10
Flange Ends comply with ANSI  B16.5
Inspection and testing in accordance with API598
