32–50 mm
Recommended pipe diameter
10 m
Enclosed flexible shaft
1,800–2,500 rpm
Recommended drill speed
9.5 mm
Approximate shaft diameter
Features
- Powered by a suitable electric or cordless variable-speed drill
- High-speed flexible shaft cleans around the full internal pipe wall
- Enclosed casing improves portability, storage and worksite cleanliness
- Flexible shaft negotiates bends in small waste-pipe systems
- Manual shaft feeding gives the operator direct control
- Compact carry handle for convenient transport between jobs
- Suitable for maintenance cleaning and clearing soft blockages
Technical data
| Model |
D-406 |
| Product code |
7655.D-406 |
| Drive |
Electric or cordless drill |
| Pipe capacity |
32–50 mm |
| Flexible-shaft length |
10 m |
| Shaft outer diameter |
Approximately 9.5 mm |
| Recommended speed |
1,800–2,500 rpm |
| Shaft feed |
Manual |
| Machine dimensions |
Approximately 480 × 150 × 380 mm |
| Machine weight |
Approximately 7 kg |
| Warranty |
12 months |
Typical applications
- Kitchen waste pipes
- Bathroom drains
- Basins, sinks, showers and baths
- Grease, soap and sludge deposits
- Preventative drain maintenance

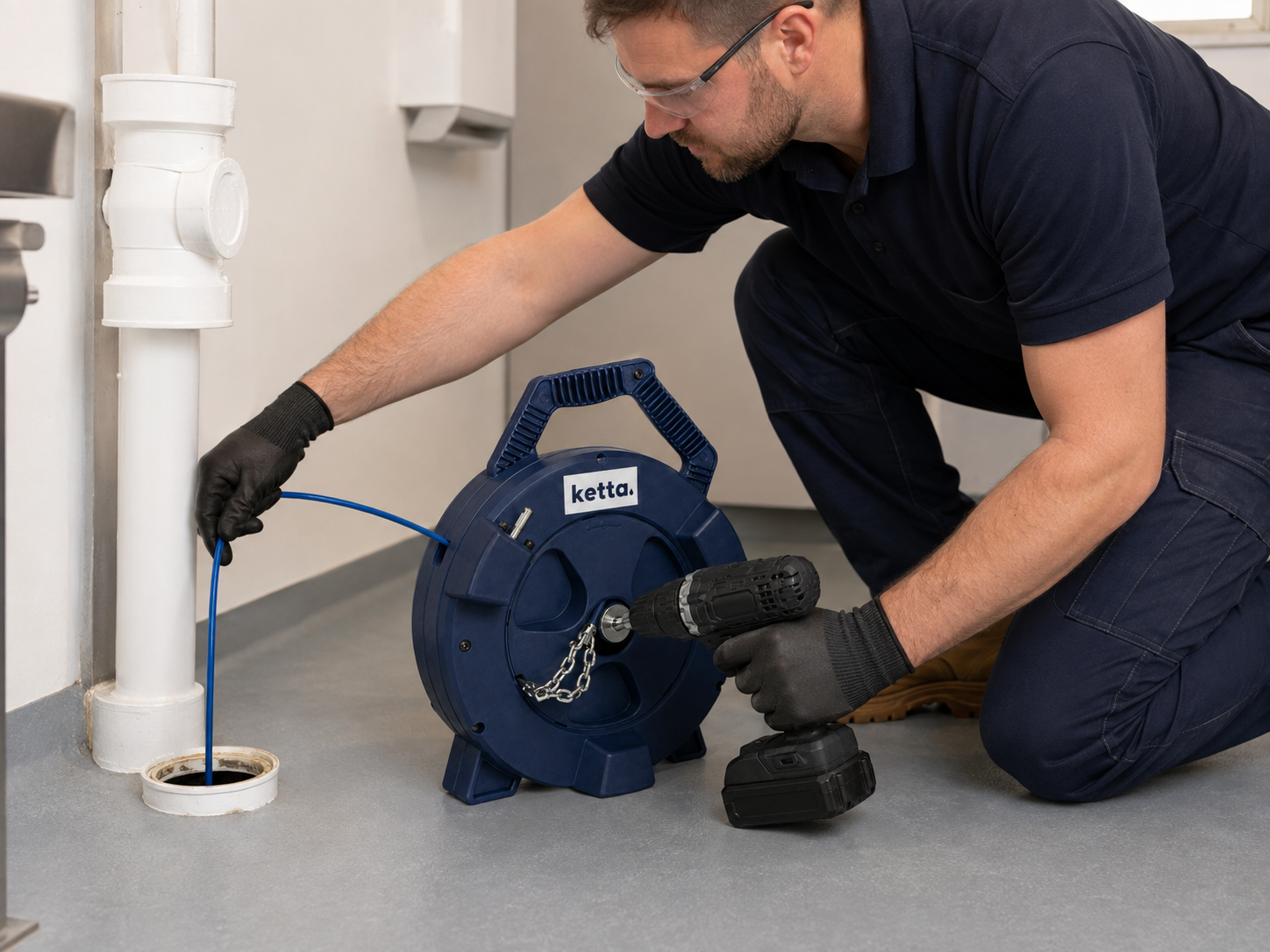

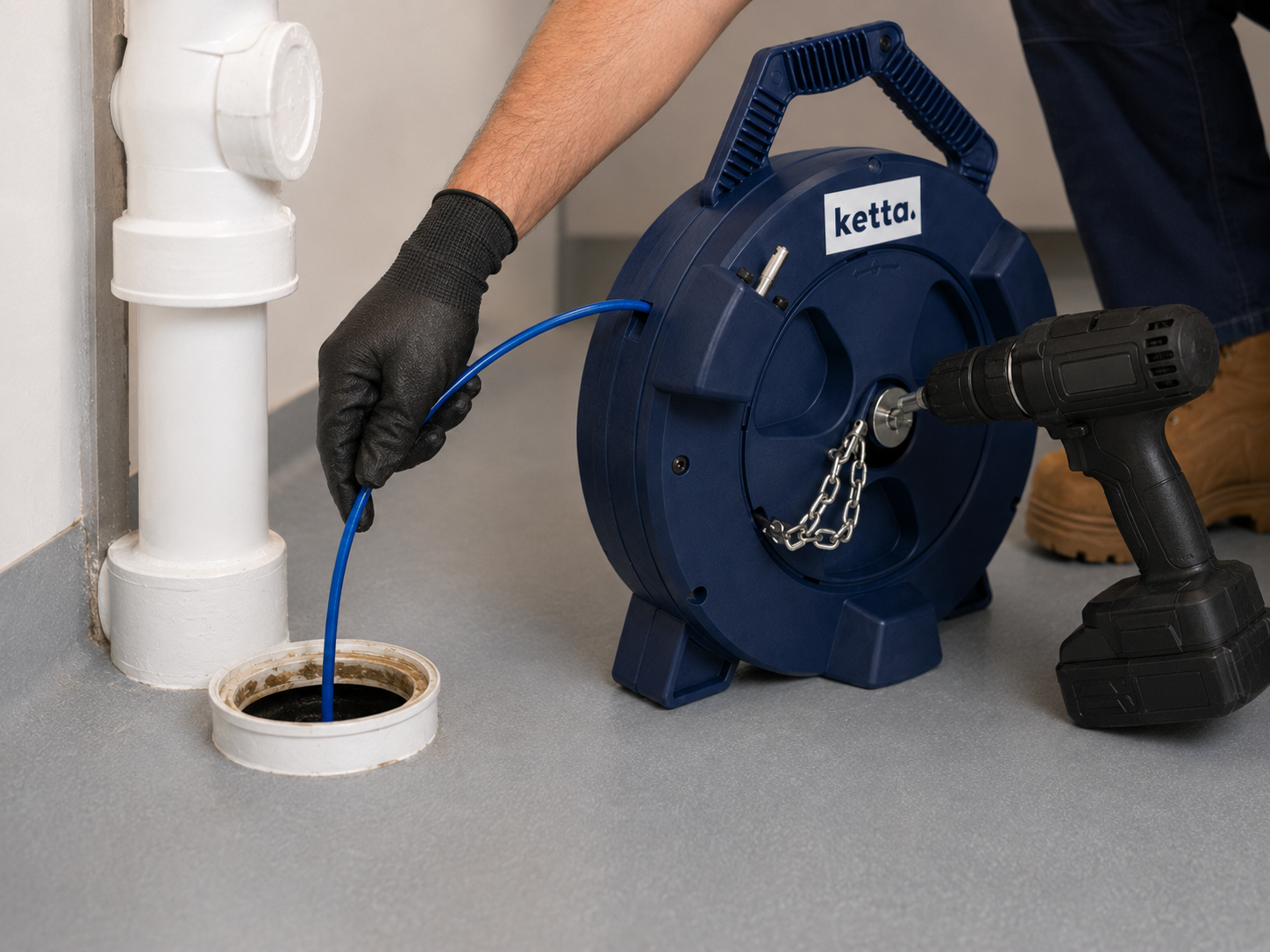

Basic operation
- Fit the correct cleaning attachment for the pipe and blockage.
- Feed the flexible shaft into the drain opening.

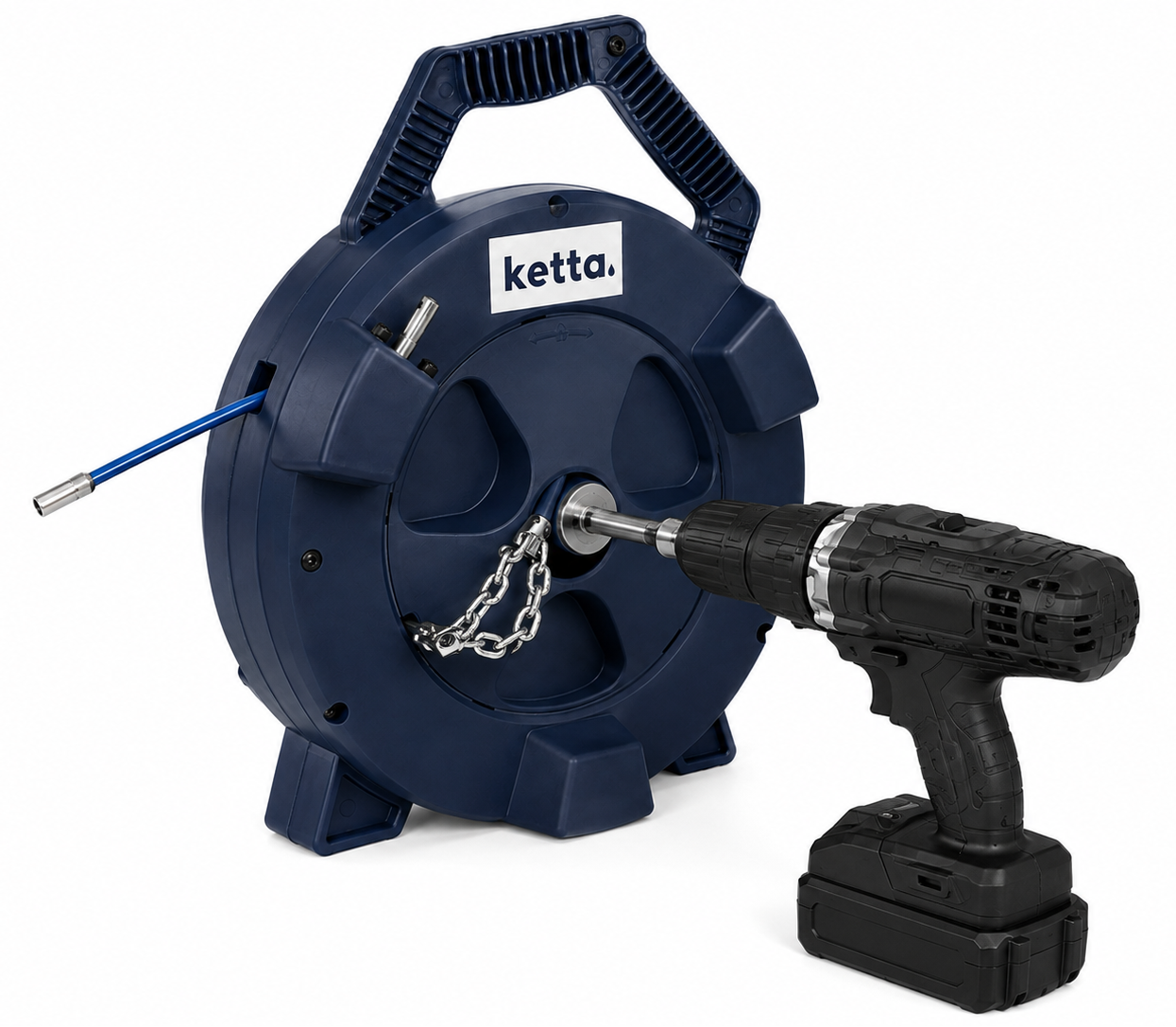

- Secure a suitable variable-speed drill to the machine drive.
- Run within the recommended speed range while feeding the shaft gradually.
- Work through the deposit, then withdraw and clean the flexible shaft.
Important: Drill is not included. Use a suitable variable-speed drill and the correct cleaning attachment for the pipe material, diameter and type of blockage. Wear suitable eye and hand protection and follow the operating instructions.
