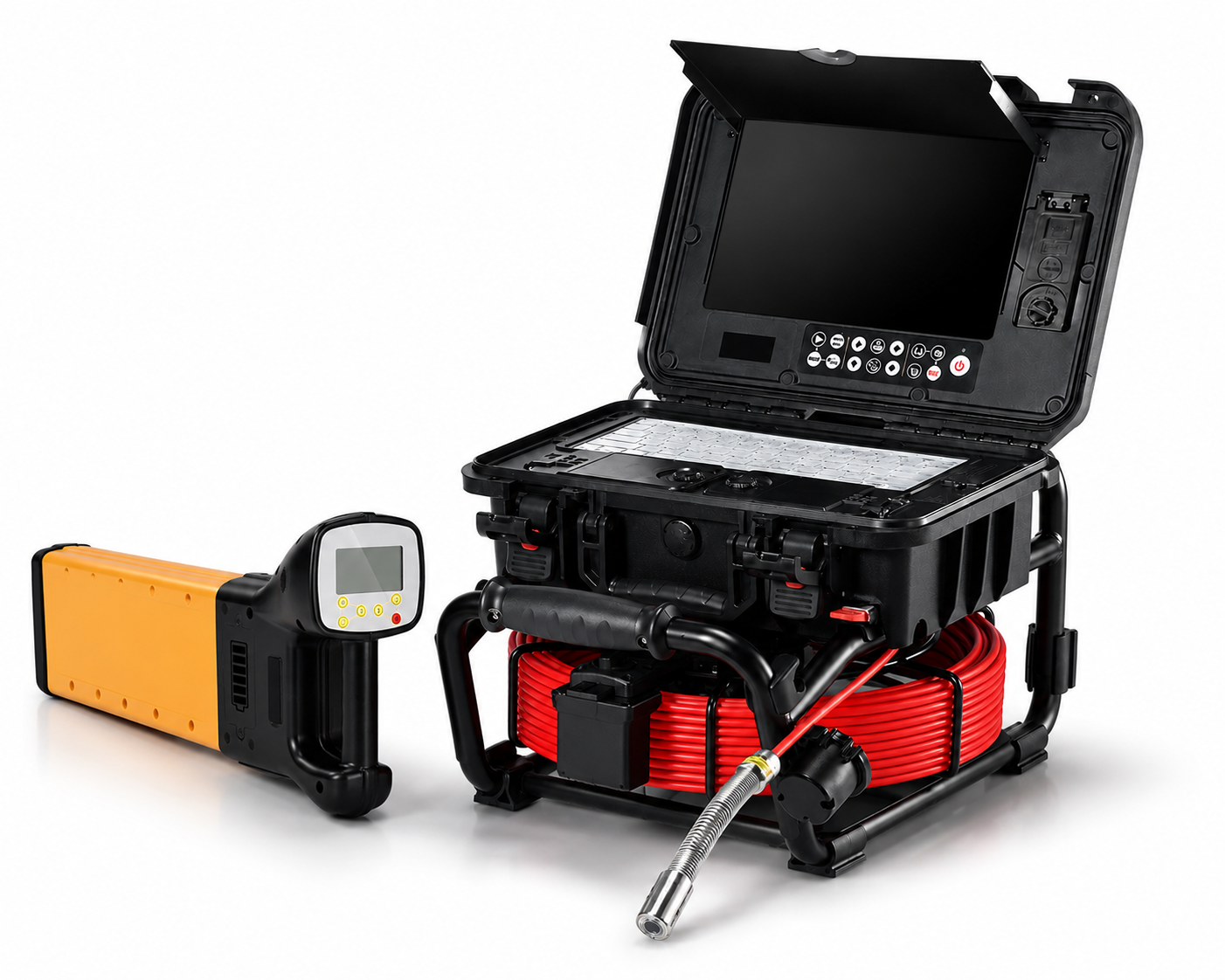

Ketta DrainTracer 3599FB-10 Rain-Proof drain camera with Sonde and DrainTracer 42 power line locator
Couldn't load pickup availability
Regular price
$5,500.00 NZD
excl GST
Ketta pipe inspection system
Ketta DrainTracer 3599FB-10All-in-one video drain camera with 254 mm display, DVR recording, distance counter and sonde
A portable inspection system for viewing, recording and documenting the internal condition of drains and pipelines. The integrated reel, monitor, recording controls and rechargeable battery are housed in one rain-resistant field unit.
254 mm10 inch colour display
23 mmStainless steel camera head
130°Wide viewing angle
Up to 6 hRechargeable battery operation
Key features
Video and still-image recordingIntegrated DVR function with one-touch recording and SD card storage.
Built-in sondeSupports above-ground location of the camera head with a compatible locator.
On-screen distance counterDisplays push-rod distance to help identify the inspection position.
Clear inspection imageCMOS camera, sapphire glass lens cover and 15 high-intensity white LEDs.
Adjustable lightingDedicated controls allow the camera-head LED brightness to be adjusted.
Image rotationMonitor control rotates the displayed image for easier viewing.
Text and audio notesEnglish keyboard for text entry plus microphone for local audio recording.
Smart reel brakingIntegrated braking system helps control the fiberglass push rod during inspection.
Rain-resistant field unitIPX3-rated system for outdoor operation; camera head rated IP68.
Pipe-bend capabilityDesigned to negotiate 90-degree bends in pipes from 50 mm diameter, subject to pipe condition.
Technical data
- Model
- DrainTracer 3599FB-10
- Display
- 254 mm / 10 inch colour monitor
- Recording
- Video and still images to SD card
- Camera type
- CMOS, 130-degree viewing angle
- Camera head
- 23 mm diameter, stainless steel
- Camera protection
- IP68
- Lens cover
- Sapphire glass
- Camera lighting
- 15 adjustable high-intensity white LEDs
- Push rod
- 6.8 mm diameter fiberglass cable
- Cable options
- 20, 30 or 40 m
- Camera guides
- 46 mm and 80 mm
- Distance display
- On-screen counter
- Text input
- English keyboard
- Audio
- Microphone for local audio recording
- Battery life
- Up to 6 hours
- System protection
- IPX3 rain resistant
- Carton dimensions
- 550 × 440 × 350 mm
- Carton weight
- 14 kg
Included equipment
All-in-one inspection unitIntegrated display, DVR controls, cable reel, battery and protective enclosure.
Camera-head guides46 mm and 80 mm guides supplied for centring the camera in larger pipes.
SondeIncluded for compatible locating work.
KeyboardAllows inspection notes to be entered on screen.
The camera head is rated IP68. The complete inspection system is rated IPX3 for rain resistance; keep the enclosure closed when protection from water is required. Bend performance varies with pipe diameter, condition, junction geometry and cable length.
