Ketta FKT 1-1/2 inch hydraulic driven twin impeller pump 300 lpm 90 m head
Regular price
$4,319.00 NZD
excl GST
Couldn't load pickup availability
High-pressure twin impeller pump

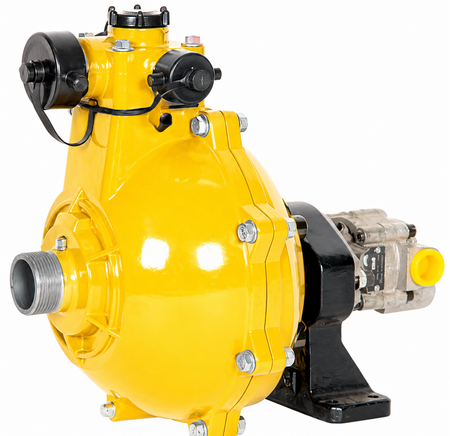

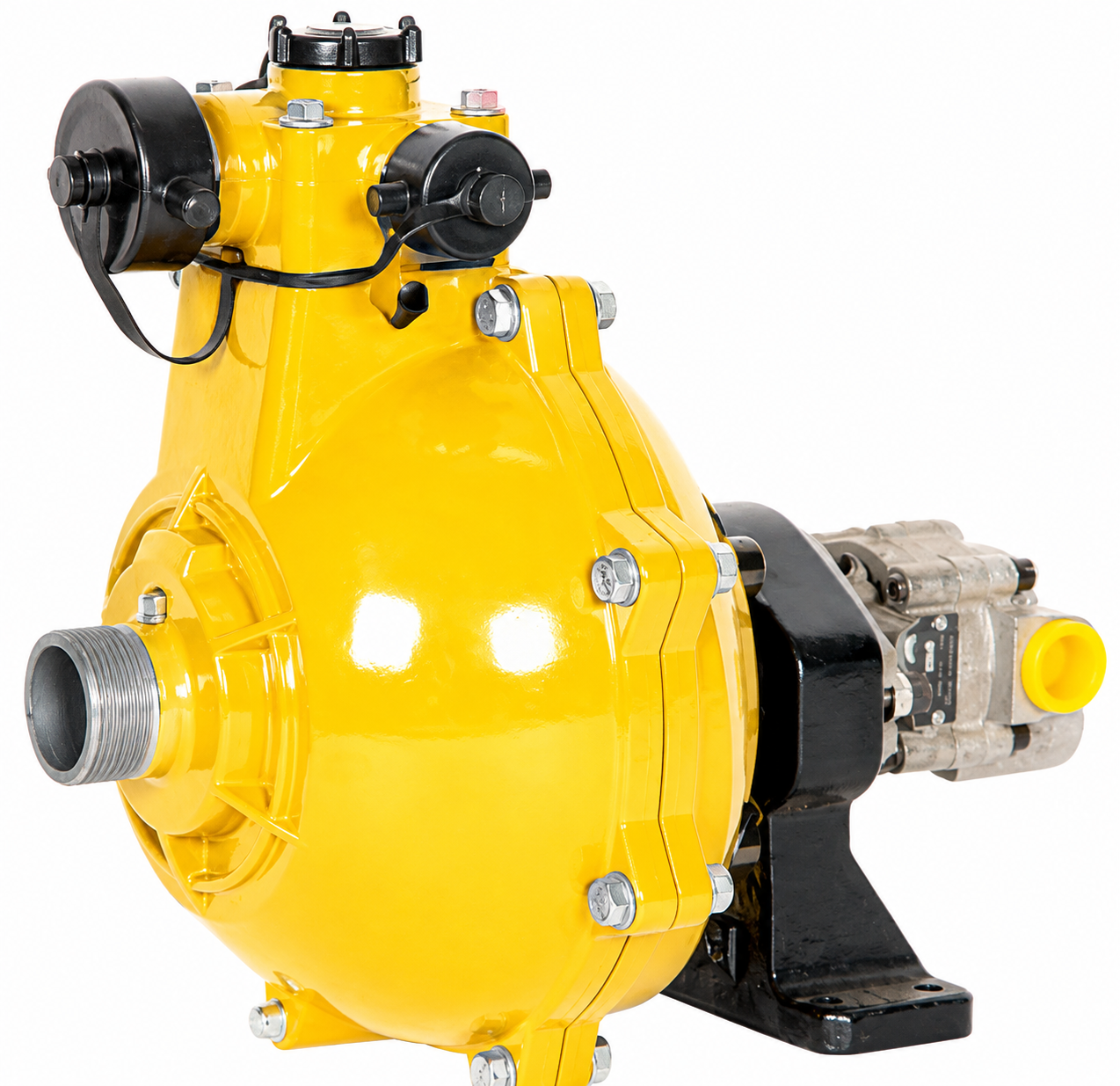

Ketta FKT Yellow twin impeller pump
A compact, self-priming high-pressure pump for irrigation, wash-down, high-head water transfer and firefighting.
300 lpmMaximum flow
90 mMaximum head
9 barMaximum pressure
Applications
Irrigation
Wash-down
High-head transfer
Firefighting
Specifications
- Pump type
- Twin impeller, self-priming
- Maximum flow
- 300 lpm (79 gpm)
- Maximum head
- 90 m
- Maximum pressure
- 9 bar (130 psi)
- Maximum suction lift
- 7.5 m (25 ft)
- Inlet
- 40 mm (1-1/2 inch) BSP(M)
- Primary outlet
- 40 mm (1-1/2 inch) BSP(M)
- Side outlets
- 2 × 25 mm (1 inch) BSP(M)
Hydraulic motor data
- Hydraulic motor power
- 12 hp
- Hydraulic system compatibility
- Open or closed systems
- Hydraulic fluid flow
- 23–38 lpm (6–10 gpm)
- Hydraulic fluid pressure
- 34–138 bar (500–2000 psi)
- Pump performance
- 300 lpm, 90 m head
- Maximum pump pressure
- 9 bar (130 psi)
Parker Gresen MGG20025 motor
- Displacement
- 0.580 in³ (9.5 cm³)
- Maximum speed
- 5000 rpm
- Rated flow per 1000 rpm
- 2.51 gpm (9.5 lpm), nominal
- Continuous rated pressure
- 2000 psi (138.0 bar)
- Intermittent rated pressure
- 2500 psi (172.5 bar)
Performance curve
High pressure across the operating range
The twin-impeller design develops up to 90 m head for long hose runs, elevated delivery points and demanding wash-down or firefighting duties.
Performance curve is indicative and based on the supplied pump data. Actual performance varies with engine speed, suction conditions, hose size, fittings and installation losses.
