Home » Ketta GA15 40 mm (1-1/2 inch) ANSI Polypropylene air operated diaphragm pump 378 lpm 8.3 bar (120 psi) - all options
Ketta

Ketta GA15 40 mm (1-1/2 inch) ANSI Polypropylene air operated diaphragm pump 378 lpm 8.3 bar (120 psi) - all options

Available
SKU: 2888.GA15-03-3EB-C
$2,958.00 NZD excl GST
Select option

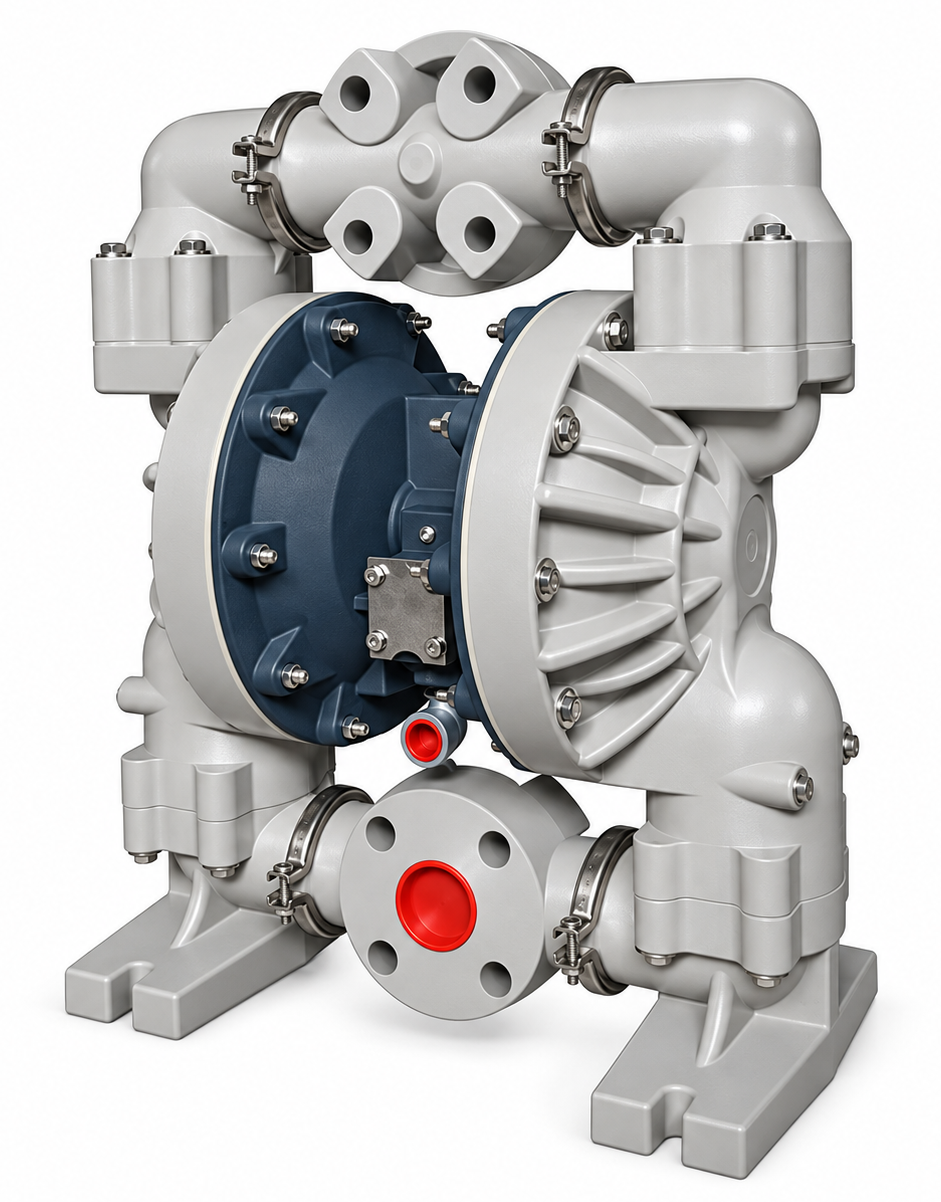

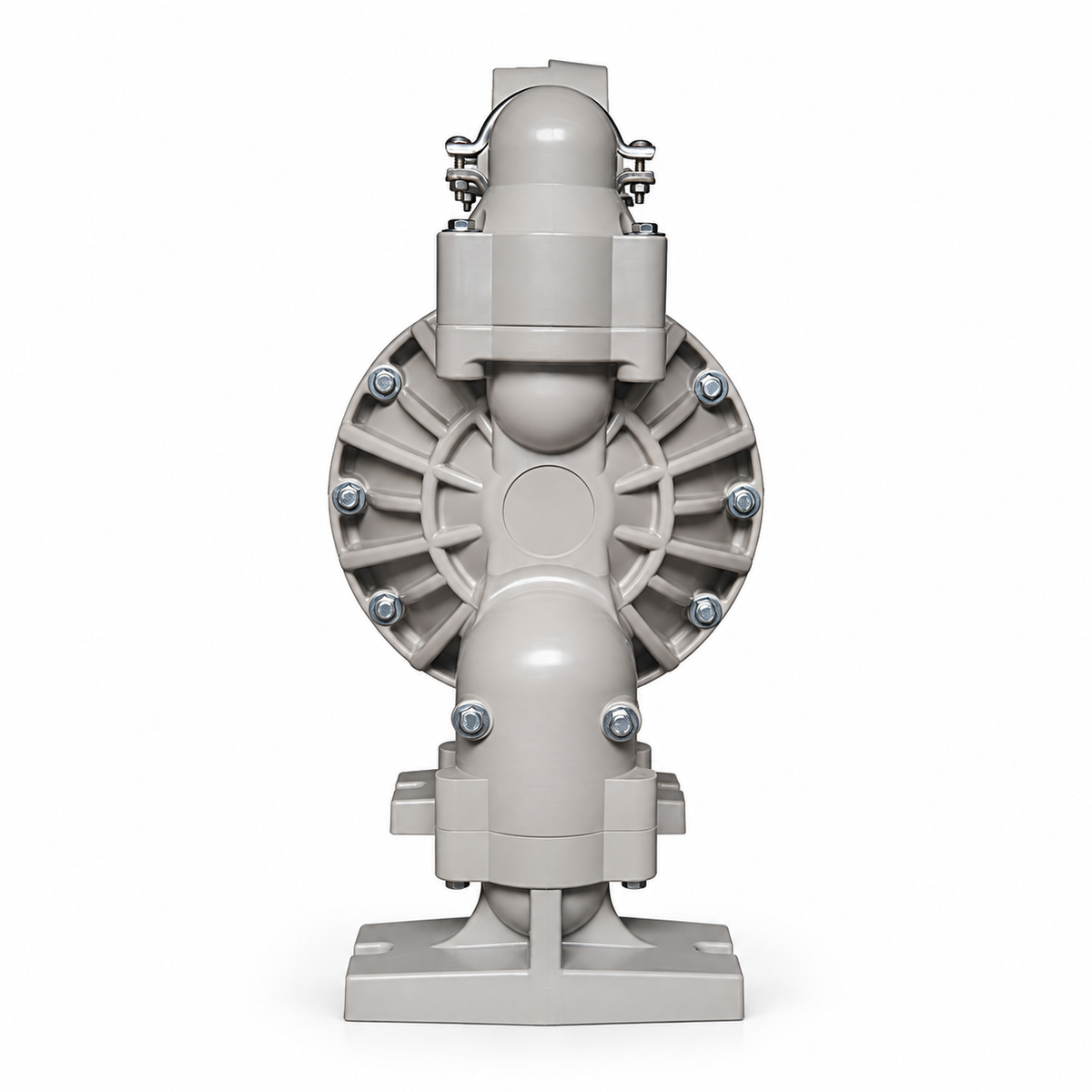

Ketta GA15 40 mm (1-1/2 inch) ANSI Polypropylene air operated diaphragm pump
Performance: 378 lpm, 8.3 bar (120 psi)
Self priming (dry) to 4.3 m
Ratio: 1:1
Displacement per cycle: 2.54 litres
Air inlet (female): 40 mm 1/2 inch NPT(F)
Fluid inlet/outlet: 40 mm 1-1/2 inch ANSI / DIN flange
(Note: 40 mm 1-1/2 inch BSP NPT(F) threaded flanges available on request)
Suspended solids to 6 mm max
Sound level: 77.7 db(A)

GA15-03-3EB-C - 6661T3-3EB-C
GA15-03-2EB-C - 6661T3-2EB-C
GA15-03-344-C - 6661T3-344-C
GA15-03-244-C - 6661T3-244-C
