Ketta GA1F 25 mm (1 inch) ANSI flange poly air operated diaphragm pump 178 lpm 8.3 bar (120 psi) - all options

Available
SKU: 2888.GA1F-03-3EB-C
$1,341.00 NZD excl GST
Select option

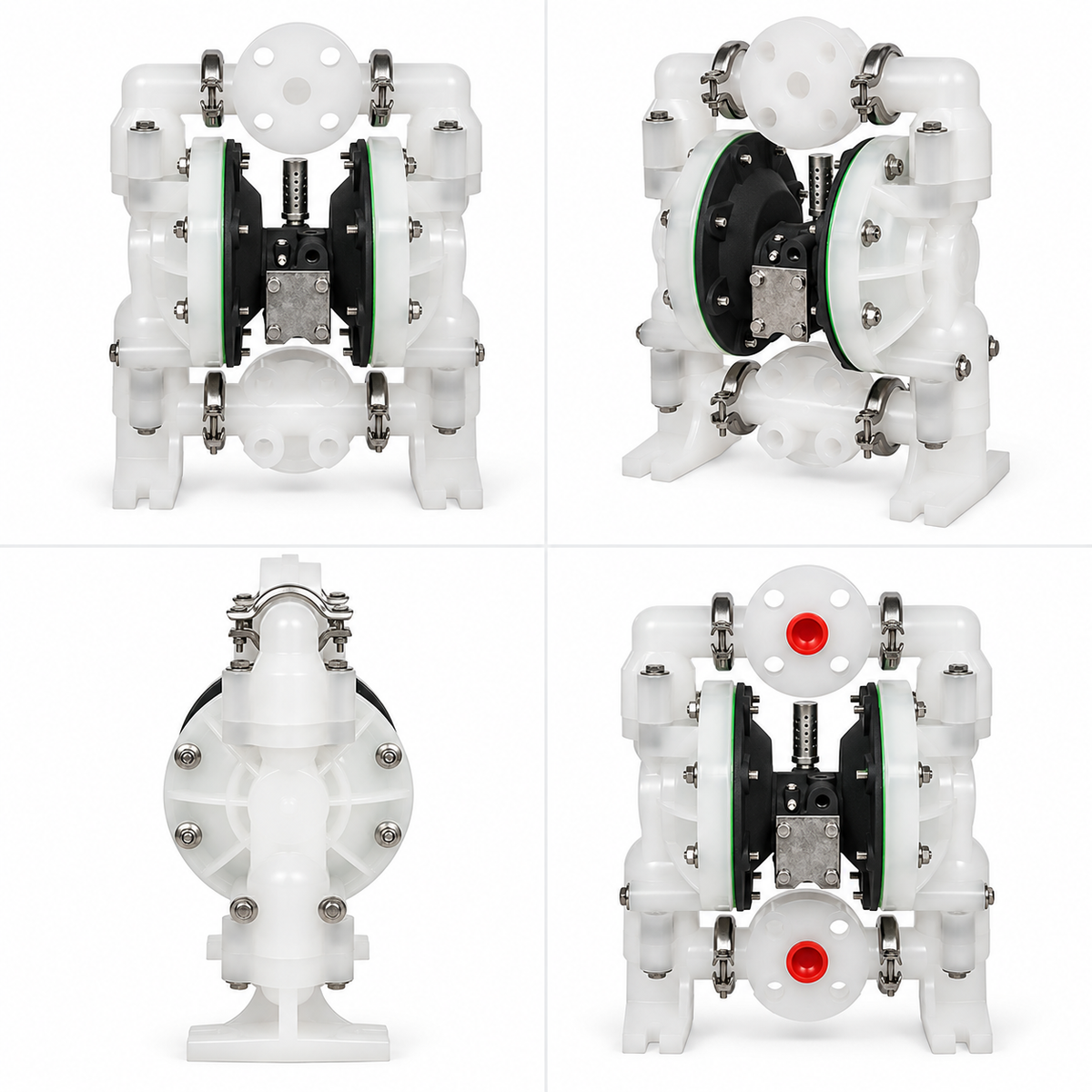

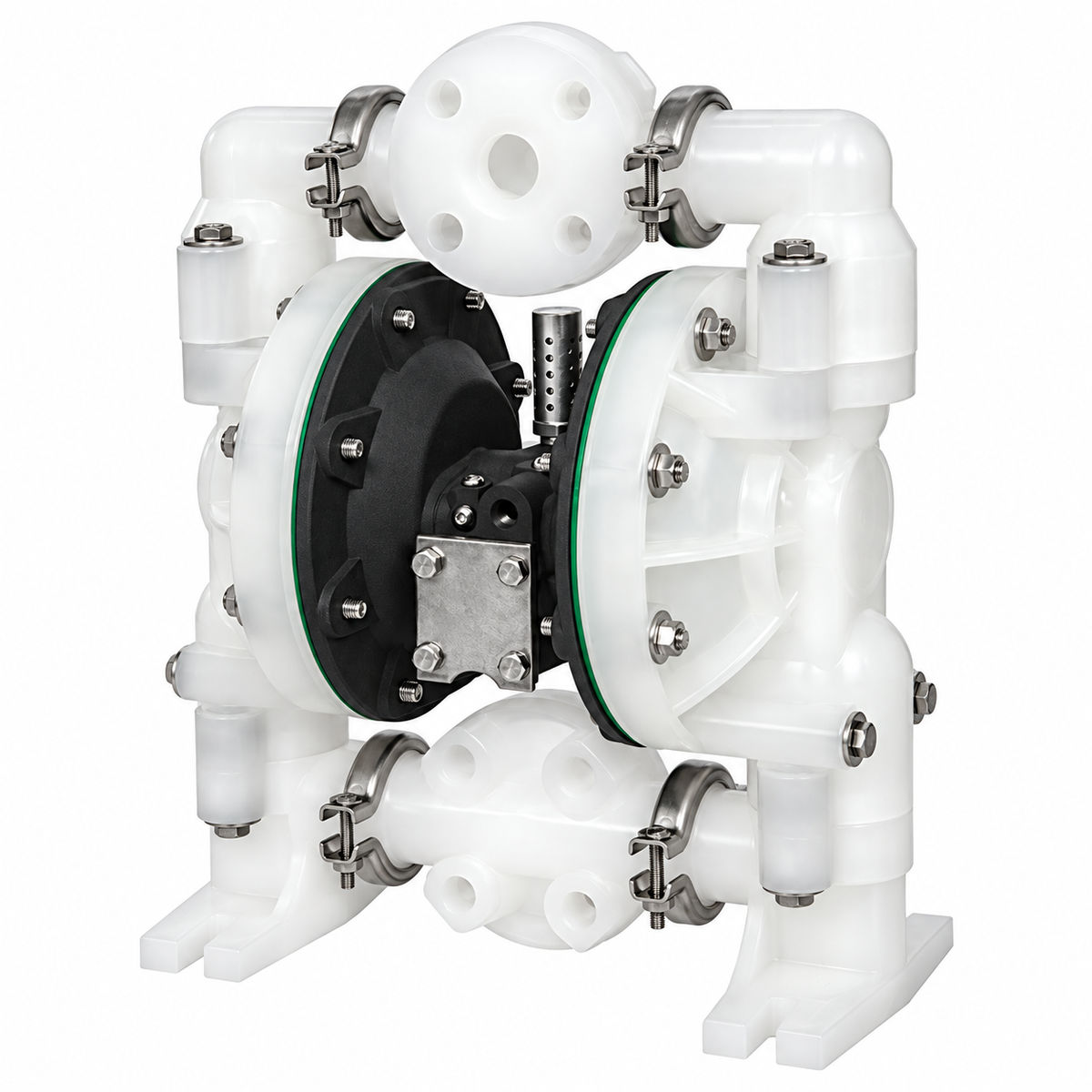

Ketta GA1F 25 mm (1 inch) ANSI flange Polypropylene air operated diaphragm pump
Performance: 178 lpm, 8.3 bar (120 psi)
Self priming (dry) to 4.6 m
Ratio: 1:1
Displacement per cycle: 0.64 litres
Suspended solids to 3.2 mm max
Sound level: 64.5 db(A)
Liquid temperature range 2° to 79°C (35° to 175°F)
Air inlet (female) port: 1/4 inch - 18 PTF SAE short
Fluid inlet/outlet ports: 25 mm 1 inch ANSI flange
