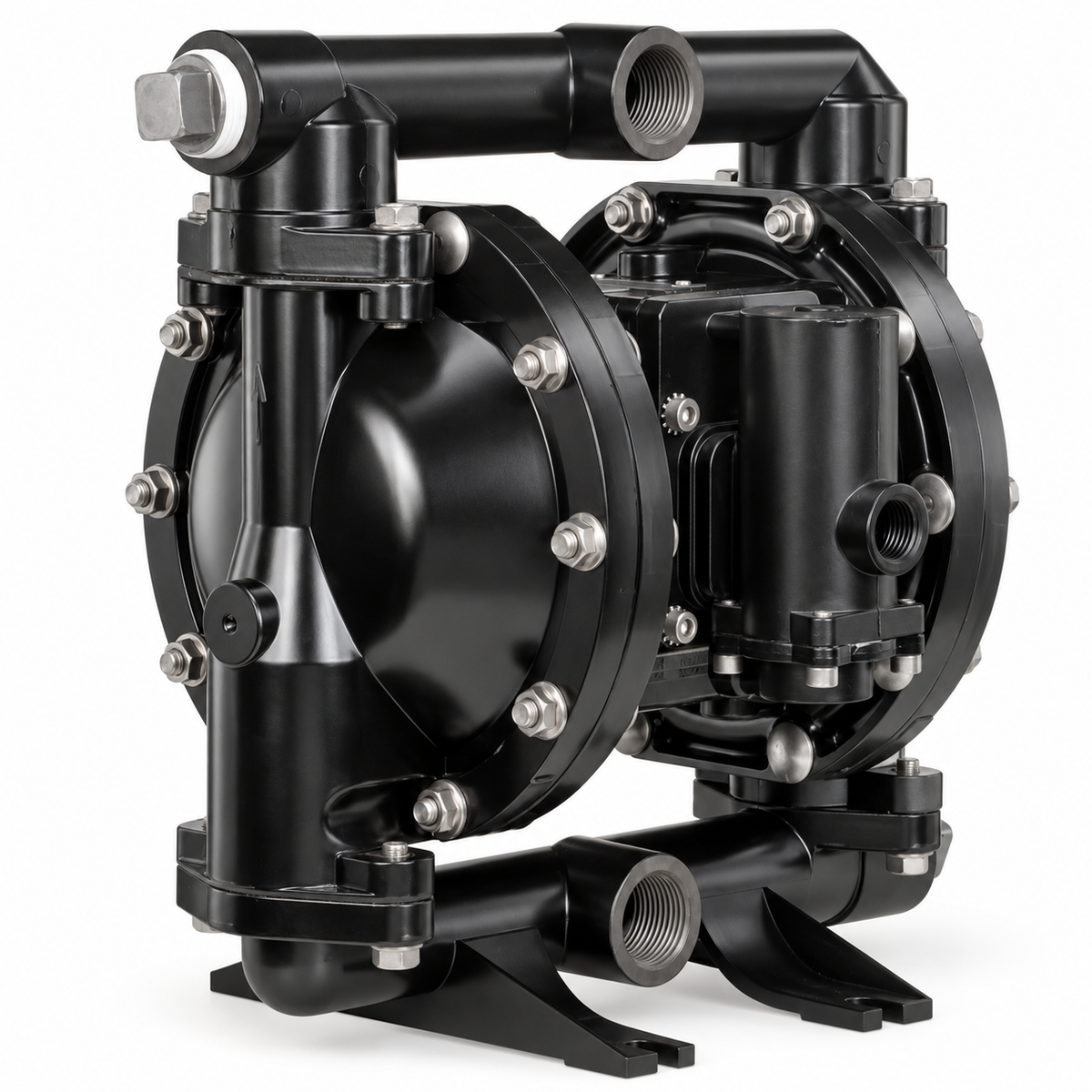

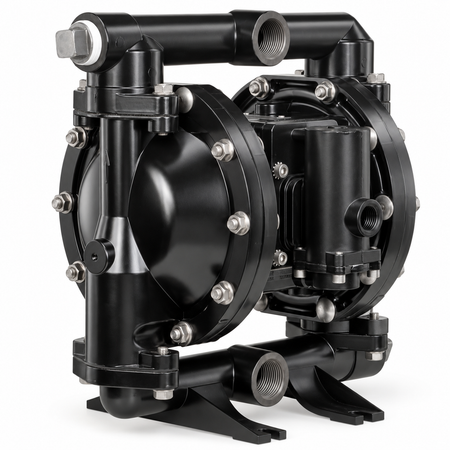

Ketta GD10A 25 mm (1 inch) BSP(F) aluminium air operated diaphragm pump 197 lpm 8.3 bar (120 psi)
Regular price
$1,688.00 NZD
excl GST
Couldn't load pickup availability
Ketta GD10A 25 mm (1 inch) BSP(F) aluminium air operated diaphragm pump
25 mm 1 inch BSP(F) fluid ports
1/4 inch NPT(F) air port
For oil, diesel, water and more
Ratio: 1:1
Performance:
197 lpm (52 gpm) max
8.3 bar (120 psi) max
Self-priming to 5.7 m dry
Solds handling to 3.3 mm (1/8 inch)
Displacement per cycle 0.88 litres (0.232 gallons)
Materials:
Aluminium centre section
Aluminium pump body
Buna-N diaphragms
Nitrile balls and seats
GD10A-BAP-GGG - PD10A-BAP-GGG
