Ketta HL420 engine 14 hp with 1 inch keyed shaft (recoil and electric start)
Couldn't load pickup availability
Regular price
$690.00 NZD
excl GST
Ketta petrol engine

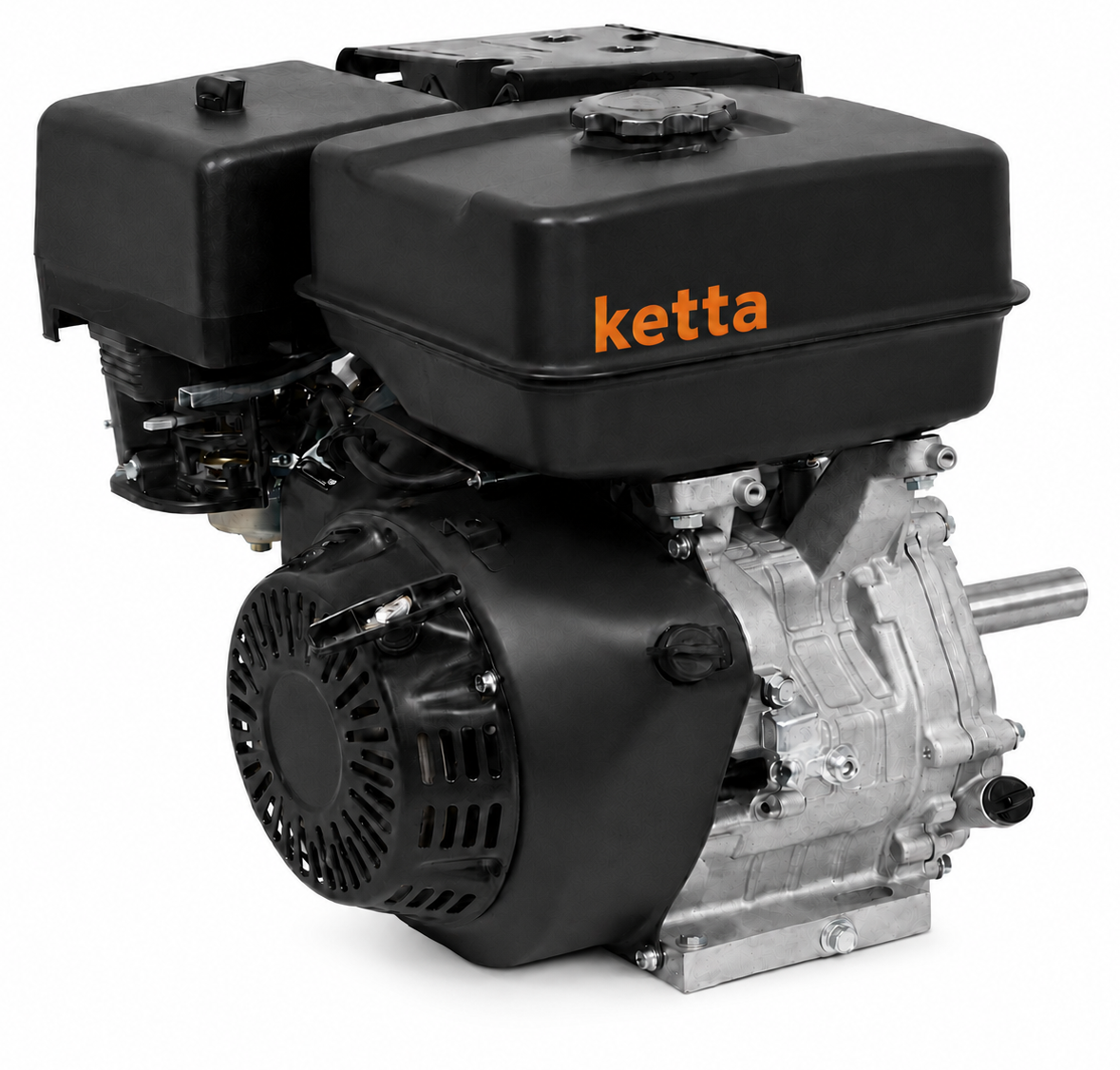

HL420 14 hp ohv petrol engine
A robust, general-purpose 420 cc engine for pumps, generators and industrial equipment, supplied with a 1 inch keyed output shaft and a choice of recoil or electric starting.
420 ccEngine displacement
14 hpMaximum output at 3,600 rpm
1 inchKeyed output shaft
30 kgApproximate net weight
Features
Heavy-duty ohv designSingle-cylinder, four-stroke petrol engine.
Forced-air coolingCompact air-cooled construction for equipment installations.
Starting optionsAvailable with recoil start or electric start.
Standard drive shaft1 inch diameter keyed shaft for straightforward coupling.
Reliable ignitionTransistorised magneto ignition system.
Versatile power sourceSuitable for pumps, generators and general industrial equipment.
Technical data
- Model
- HL420
- Engine type
- Single-cylinder, four-stroke, air-cooled ohv petrol engine
- Displacement
- 420 cc
- Bore × stroke
- 90 × 66 mm
- Maximum output
- 14 hp at 3,600 rpm
- Output shaft
- 1 inch diameter keyed shaft
- Starting system
- Recoil start or electric start options
- Ignition system
- Transistorised magneto ignition
- Spark plug
- F7TC
- Fuel
- Petrol
- Fuel consumption
- ≤370 g/kWh
- Net / gross weight
- 30 / 32 kg
- Dimensions
- 450 × 405 × 443 mm
Specifications may vary slightly by production configuration. Confirm shaft dimensions and start configuration when ordering.
