50–200 mm
Pipe diameter range
50 m
Maximum working length
1,100 watt
Electric motor
Up to 700 rpm
Spiral speed
Features

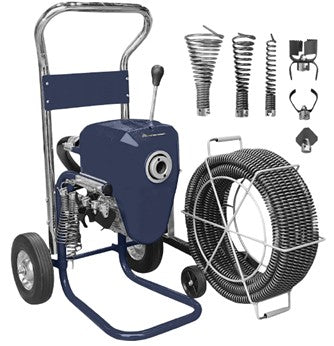

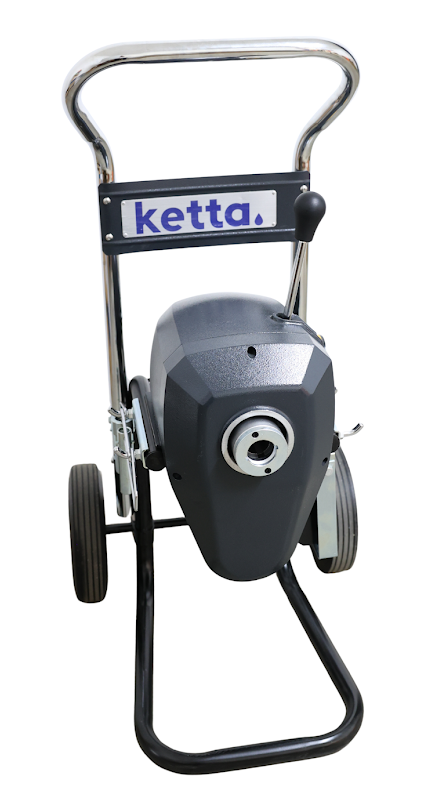

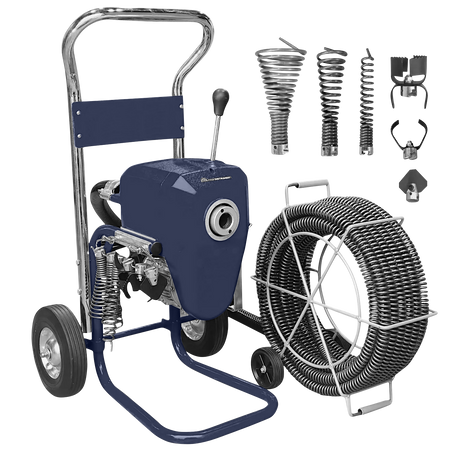

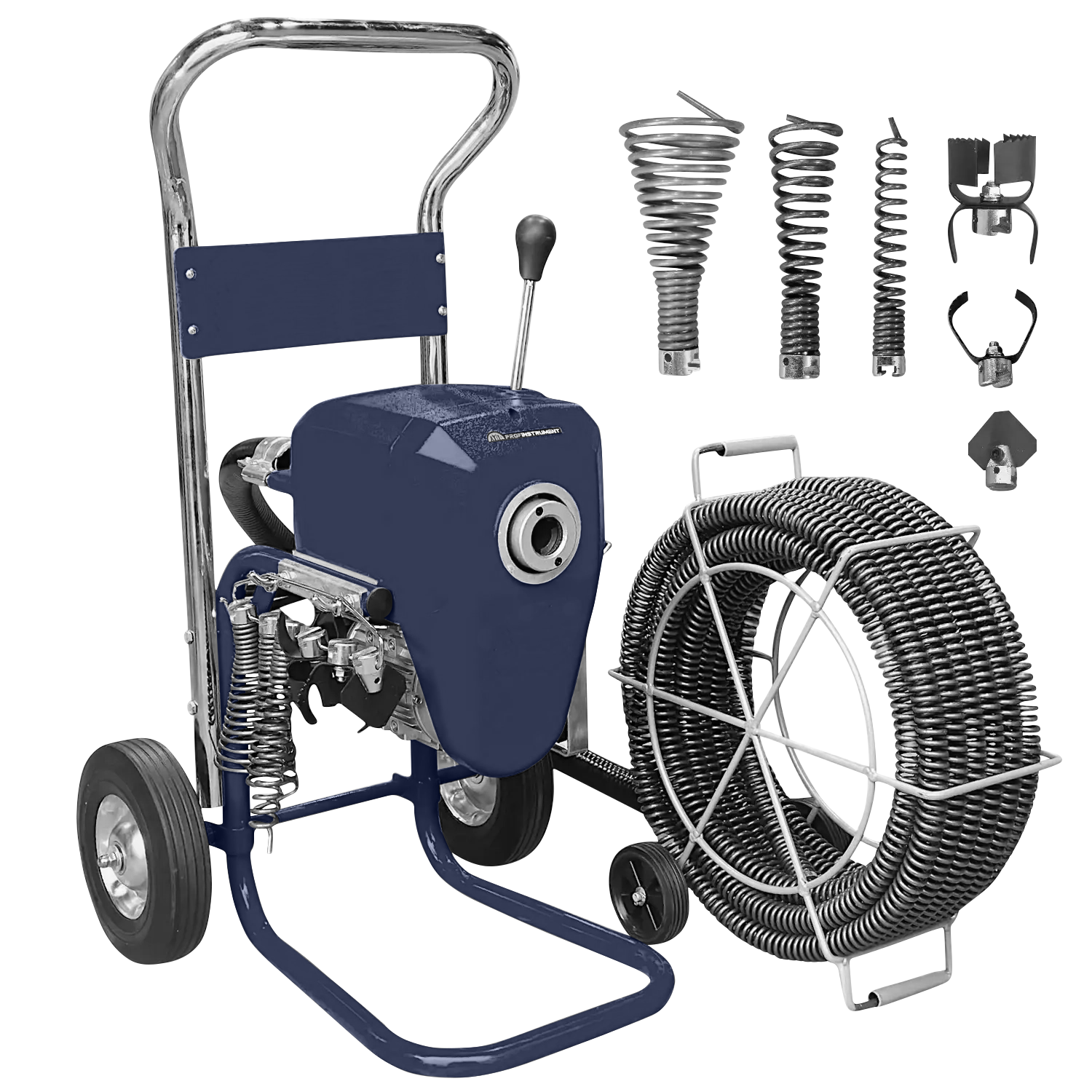

- Heavy-duty machine for professional drain and pipe cleaning
- Suitable for 50–200 mm (2–8 in) pipes
- Maximum working length of 50 m
- Sectional spirals can be added as greater reach is required
- Clutch-controlled drive stops the spiral when the handle is released
- Wheels on the machine and spiral carrier assist one-person transport
- Dedicated accessory shelf keeps tools organised and accessible
Technical data
| Model |
K-200-1A |
| Product code |
7655.K-200-1A |
| Power supply |
230 V |
| Motor power |
1,100 watt (1.1 kW) |
| Pipe capacity |
50–200 mm (2–8 in) |
| Maximum working length |
50 m |
| Standard spiral diameter |
30 mm |
| Optional spiral compatibility |
16 and 22 mm with supplied adapter |
| Maximum spiral speed |
700 rpm |
| Drive control |
Manual clutch handle |

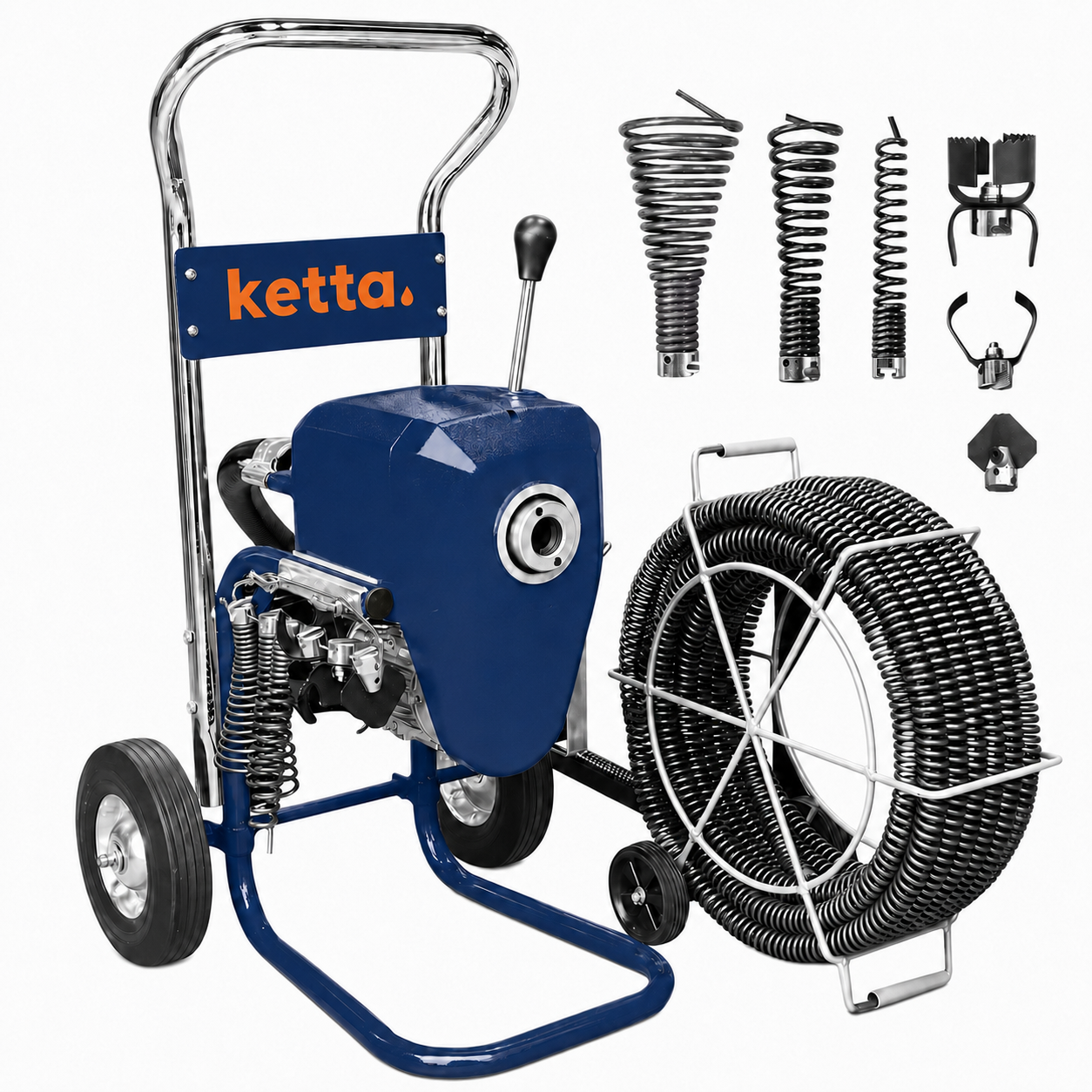

Spiral flexibility

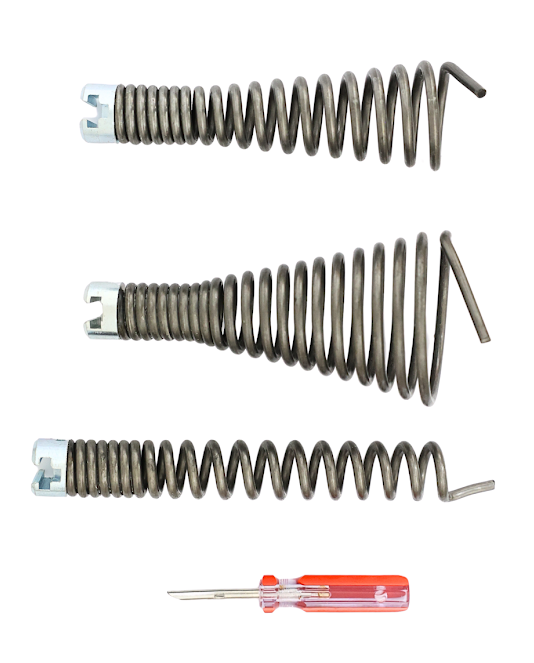

- Designed for standard 30 mm sectional spirals
- Supplied adapter allows operation with 16 and 22 mm spirals
- Different spiral sizes broaden the machine's pipe and blockage capability
- Sectional construction makes transport, cleaning and storage easier

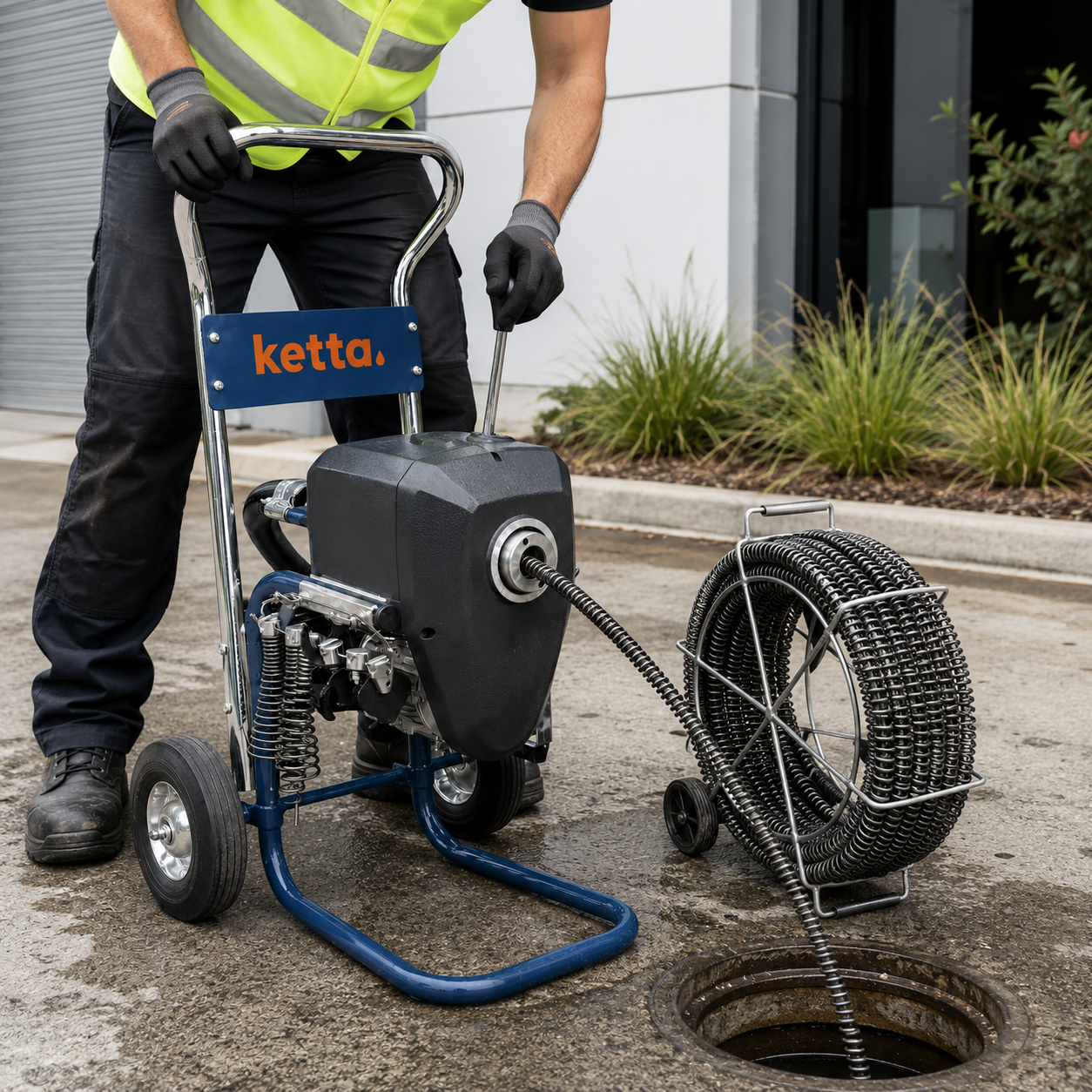

Typical applications
- Outdoor drains and sewer lines
- Commercial and industrial drainage systems
- Grease, sludge and accumulated deposits
- General drain maintenance and blockage removal
- Long pipe runs requiring sectional spiral extension

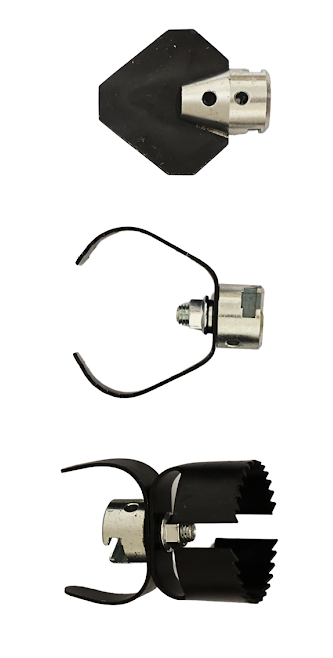

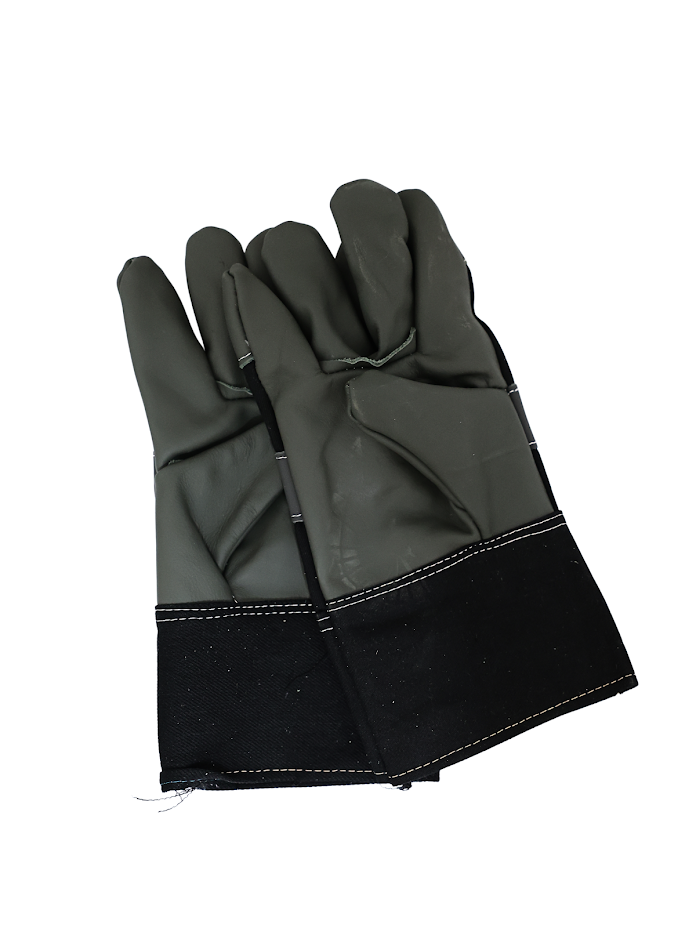

Operator safety: Select the correct spiral and cleaning attachment for the pipe and blockage. Wear suitable eye and hand protection, keep guards fitted and follow the supplied operator manual.
