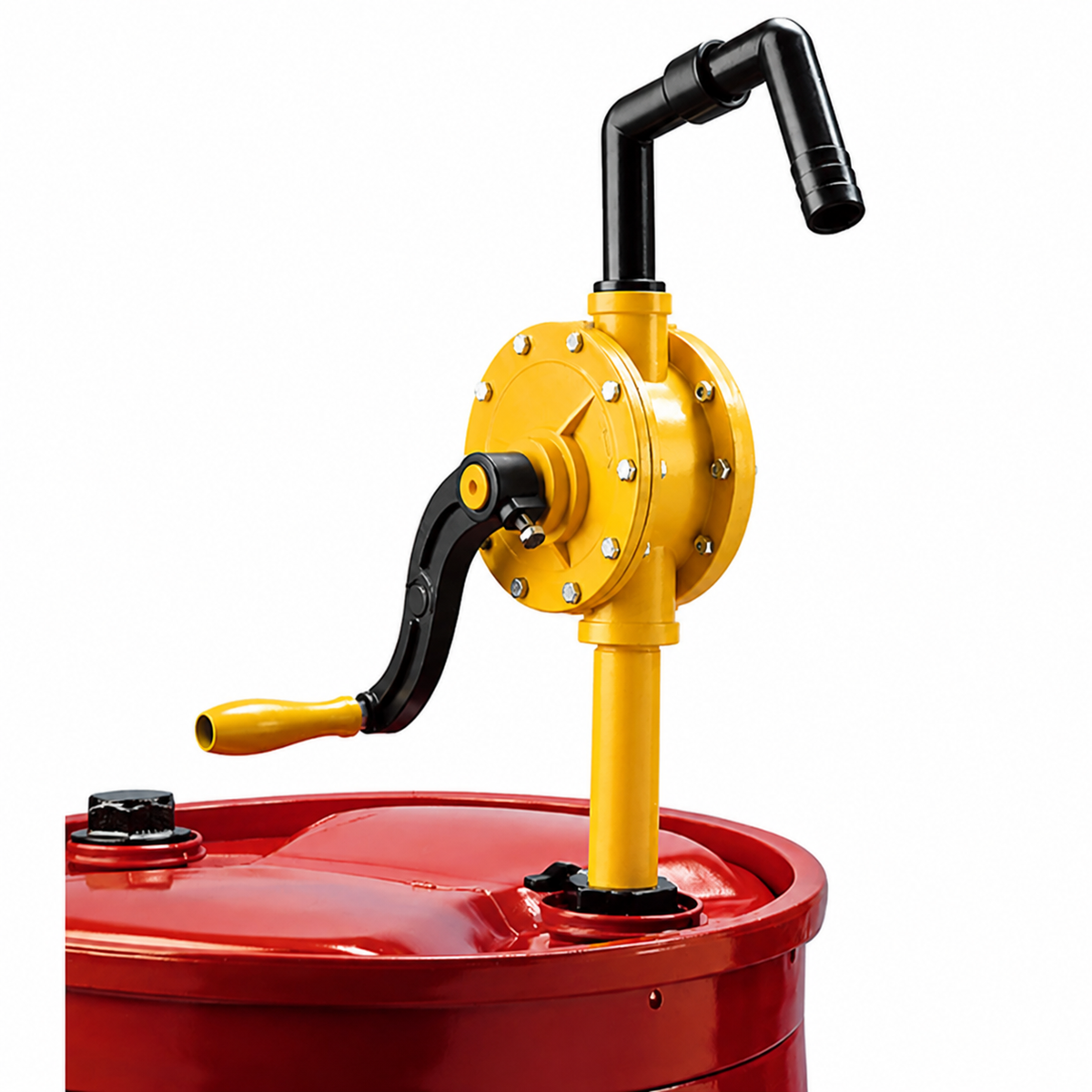

Heavy-duty hand-operated rotary vane pump for dispensing compatible chemicals, fuels, oils and water from standard drums.
Performance
Flow rate
Up to 20 lpm
Delivery per rotation
Approximately 300 ml
Maximum suction lift
5 m
Maximum viscosity
2,000 SSU
Maximum liquid temperature
54°C
Construction
Pump type
Hand-operated rotary vane pump
Pump body
Corrosion-resistant yellow polypropylene
Seals
Viton
Vanes
Ryton
Inlet
32 mm (1-1/4 in) OD
Outlet
25 mm (1 in) OD curved spout
Drum connection
50 mm (2 in) NPT(M) bung adaptor
Key features
✓ Heavy-duty rotary vane design
✓ Corrosion-resistant construction
✓ Outlet rotates through 360°
✓ Viton seals and Ryton vanes
✓ Three-piece suction tube included
✓ Maximum suction-tube length of 1 m
✓ Drum bung adaptor included
✓ Suitable for common drum sizes
Drum compatibility
Primary drum size
Standard 205 litre drums
Other drum sizes
Most standard 15, 30 and 55 US gallon drums
Compatible-liquid applications
Chemicals
Hydrochloric acid, ethanol, trichloroethylene, detergents, acids, alkalis, alcohol and antifreeze
Fuels and oils
Diesel, petrol and machine oil
General liquids
Water and other compatible liquids
Important: Always confirm chemical compatibility with the pump materials before use. Suitability can vary according to concentration, temperature and operating conditions.
