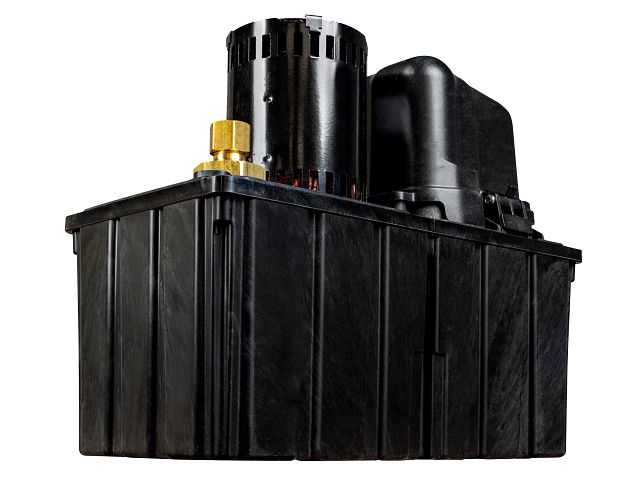

Little Giant HT-VCL-30-P series high-temp condensate pump 230v 23 lpm

Little Giant HT-VCL-30-P series high-temp condensate pump 230v 23 lpm

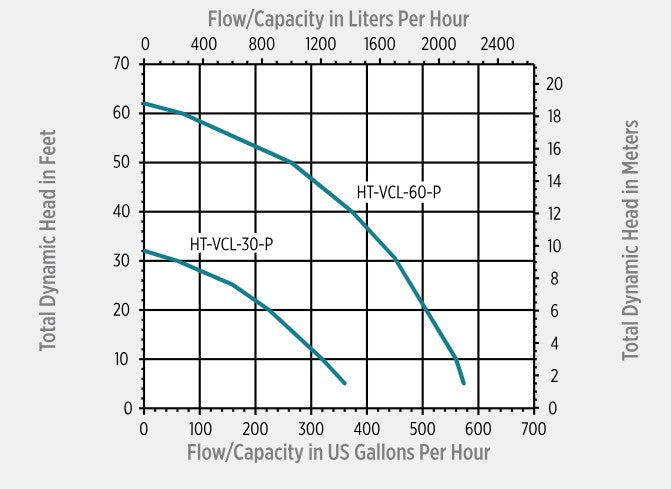

Capacity: 350 gph @ 5'
Shut Off: 32' (9.1 m)
Max. Liquid Temp: 212 °F (100 °C)
Discharge: 1/2" Compression Fitting (12.7 mm)
Impeller: Glass-filled Polypropylene
Electrical: 115 V, 60 Hz, 1.9 A 208-230 V, 60 Hz, 1.1 A 277 V, 60 Hz, 0.9 A
Operation: Automatic
1/8 horsepower motor
1-gallon collection tank
Stainless steel motor shaft
Maximizes HVAC system performance and safety
Rated for water temperatures up to 212 °F (100 °C)
UL 2043 Plenum Rated
Engineered with a hydraulic design to produce high volume flow with high-lift capability, the HT-VCL Series high-temp condensate pump is the ideal solution to handle high-temperature applications
It includes a float-activated switch for automatic high-level water detection
This pump automatically removes condensate from an air conditioner evaporator coil, refrigeration equipment coil, condensing furnace, dehumidifiers, condensing boiler, or steam-generated humidifier
Little Giant HT-VCL Series are low-profile, high-temp condensate pumps rated for up to 212 degrees Fahrenheit
Designed for use in plenum applications, these pumps are ideal for steam humidifiers and boiler applications
They also boast a higher flow rating and increased shut-off versus competitive products
This Series is compliant with UL standard UL2043, "Fire Test for Heat and Visible Smoke Release for Discrete Products and Their Accessories Installed in Air-handling Spaces"
