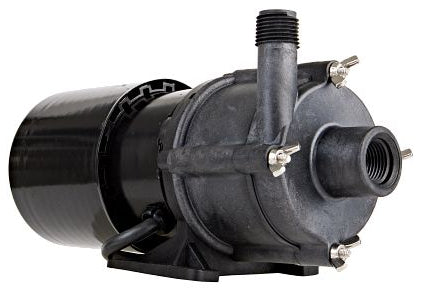

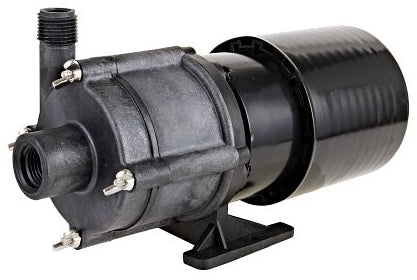

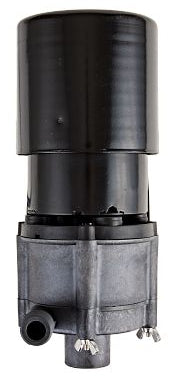

Little Giant TE-3-MD-HC magnetic drive pump 230v 37 lpm

Little Giant TE-3-MD-HC magnetic drive pump 230v 37 lpm
1/25 hp TEFC motor
Glass-filled polyphenylene sulfide magnet housing and volute
1.1 specific gravity
Fluoroelastomer (FKM) O-ring
Ceramic thrust washers and shaft
Run dry capability up to 8 hours

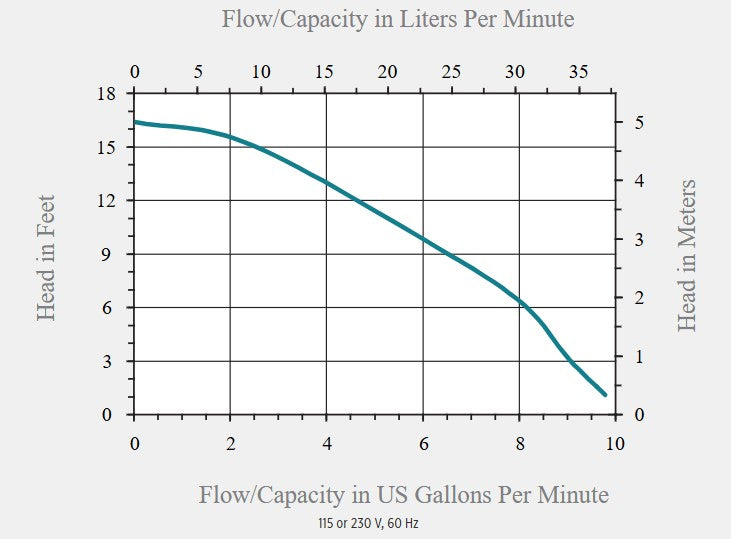

Capacity: 9.8 gpm @ 1'
Shut Off: 16.3' (4.9 m)
Max. Liquid Temp: 200 °F (93.3 °C)
Discharge: 1/2" MNPT (12.7 mm)
Impeller: Glass-filled polyphenylene sulfide w/ carbon bushing
Electrical: 230 V, 50/60 Hz, 1.1/0.8 A
Operating reliability and flexibility are the hallmarks of the Little Giant TE-3-MD-HC Series chemical transfer pumps
Typical industrial applications include corrosive solutions and solvents with high abrasive concentrations
This pump also features a 1/25 hp enclosed, fan-cooled (TEFC) motor for added safety and heavy-duty performance
The TE-3-MD-HC's motor is totally enclosed fan-cooled (TEFC) for use in dusty, dirty, and damp environments
The glass-filled polyphenylene sulfide magnet housing and volute components provide an added layer of protection and strength
Magnets turn the impeller to eliminate seal wear and leakage
The result is a long service life that's important when dealing with highly corrosive fluids
