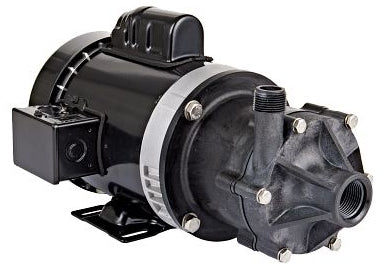

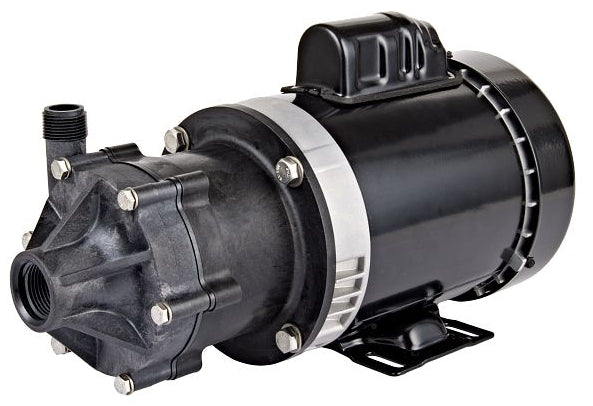

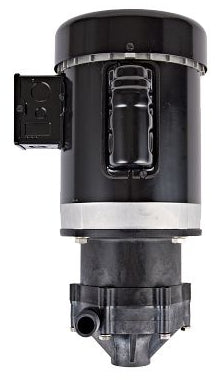

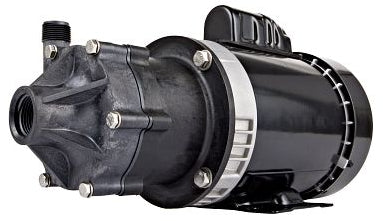

Little Giant TE-6-MD-HC series 230v magnetic drive pump 144 lpm 15 m head

Little Giant TE-6-MD-HC series 230v magnetic drive pump 144 lpm 15 m head
Highly corrosive chemical transfer pump
1/2 hp TEFC split phase motor
Glass-filled polyphenylene sulfide volute and backplate
1.1 specific gravity
Fluoroelastomer (FKM) oring
Ceramic thrust washers and shaft
Run-dry capability up to 8 hours

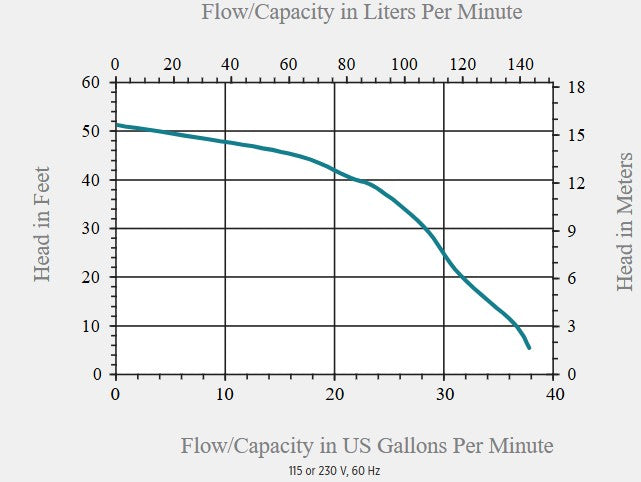

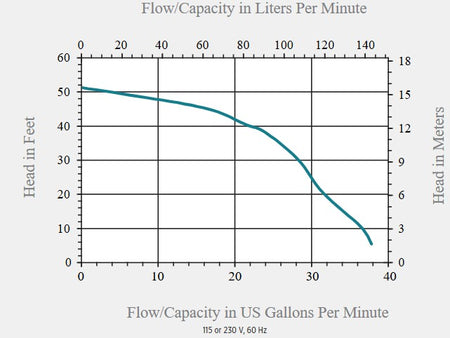

Capacity: 38 gpm @ 1'
Shut off: 51' (15.5 m)
Max. liquid temp: 180 °F (82.2 °C)
Discharge: 3/4" MNPT (19 mm)
Impeller: Glass-filled polyphenylene sulfide w/ carbon bushing
Electrical: 115 V, 50/60 Hz, 11.6/9.4 A 230 V, 50/60 Hz, 5.8/4.7 A
The TE-6-MD-HC is designed to transfer highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions compatible with the pump's material construction
The pump also utilizes pure carbon bushing in the impeller to enable the pump to run dry for periods up to eight hours
The rigorous TE-6-MD-HC is designed to handle highly corrosive fluids with superior efficiency
This chemical transfer pump is capable of producing up to 38GPM at 22.1 PSI maximum pressure
This pump utilizes a glass-reinforced polypropylene housing that is designed with a 1/2 hp thermally-enclosed, fan-cooled split-phase motor, Fluoroelastomer (FKM), and 1" FNPT fittings
