Little Giant VCL-24ULS series high-capacity condensate pump 230v 17 lpm

Little Giant VCL-24ULS series high-capacity condensate pump 230v 17 lpm

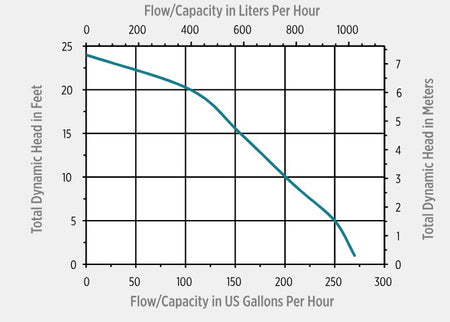

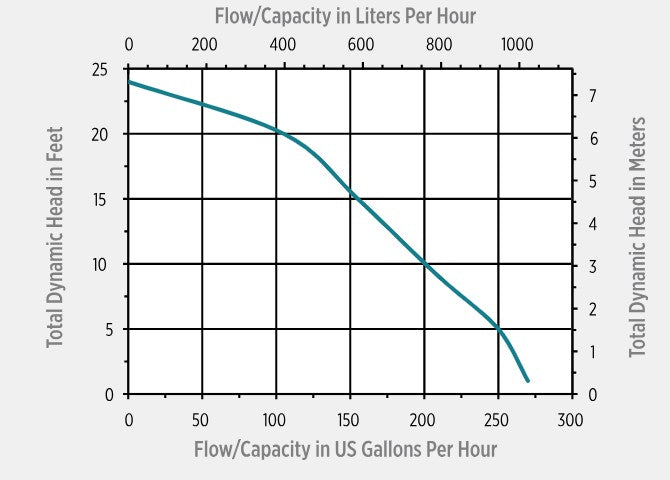

Capacity: 270 gph @ 1'
Shut Off: 24' (7.3 m)
Max. Liquid Temp: 120 °F (49 °C)
Discharge: 3/8" barbed (9.5 mm)
Impeller: Glass-filled Polypropylene
Electrical: 115 V, 60 Hz, 2.5 A 230 V, 50/60 Hz, 1.2 A
Operation: Automatic
1/18 hp, fan-cooled, concentric motor
Galvanized steel tank cover
ABS tank, volute, and switch cover
1-gallon tank capacity
Stainless steel shaft
Thermally protected to protect overheating and potential motor damage

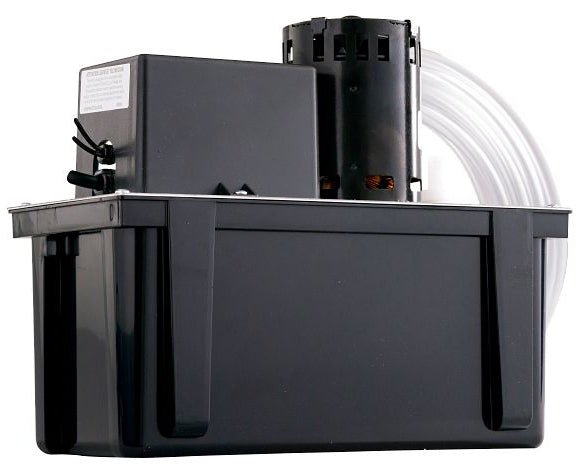

The VCL-24ULS condensate pump is ideal for the removal of condensate from air conditioners
Its robust design is also suitable for high-efficiency oil or gas-fired condensing furnaces and condensing boiler equipment
It includes a 1-gallon collection tank to handle large-scale applications
The VCL-24-ULS 1/18 hp Condensate Removal Pump features a safety switch, 1 gallon ABS plastic tank, and 6-foot power cord
The included safety switch can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
The discharge is a 1/4" FNPT or 3/8" O.D. barbed tubing adapter
The pump is controlled by a float/switch mechanism which turns the pump on when approximately 3-1/2" of water collects in the tank and automatically switches off when the tank drains to approximately 2"
