Mini-Cam HD Pipe Inspection Crawler System

Genuine 1080p Full HD, End-to-End | DN140–DN600 | Cradle-Ready to DN1050

The Mini-Cam HD Pipe Inspection Crawler System is a premium, survey-grade CCTV platform delivering genuine 1080p Full HD from camera to recording.

Unlike systems that combine HD components with a standard-definition inspection platform, Mini-Cam's HD system is purpose-built for Full HD throughout. The camera, crawler, cable reel and control unit work together as a complete 1080p inspection system, delivering exceptional image quality for detailed pipeline condition assessment and professional reporting.

Designed for pipework from DN140–DN600 as standard, the system can be configured with additional cradle equipment for larger-diameter inspections up to DN1050.

Genuine Full HD – From Camera to Recording

Image quality matters when identifying fine cracks, joint defects, infiltration, corrosion and other pipeline issues.

The Mini-Cam HD platform records in true 1920 × 1080 resolution, giving operators significantly greater visual detail when carrying out high-level condition surveys.

This is not a standard-definition crawler with an upgraded display. The CAM090-HD camera, CRP140-HD crawler, ACR350-HD reel and MCU312 HD control unit form a dedicated end-to-end HD inspection platform.

MCU312 HD Control Unit

The MCU312 HD provides the central control, recording and reporting interface for the complete inspection system.

Features include:

• Large 12-inch sunlight-viewable touchscreen

• 1000-nit display for improved outdoor visibility

• Rugged IP65-rated construction

• Records genuine 1080p Full HD – 1920 × 1080

• Embedded WinCan ProTouch reporting

• 256 GB internal storage

• Expandable storage to 2 TB+

• Professional survey, recording and reporting capability

Operators can control the inspection and capture high-definition footage while completing professional pipeline survey reporting directly through the system.

CRP140-HD 6-Wheel-Drive Crawler

The CRP140-HD is Mini-Cam's dedicated HD crawler platform, engineered for demanding sewer, stormwater and underground pipeline inspections.

Features include:

• 6-wheel drive

• Motorised camera elevator

• Built-in multi-frequency sonde

• 512 Hz / 640 Hz / 32 kHz locating frequencies

• Integrated inclination sensor

• IP68-rated construction

• DN140–DN600 operating range as standard

The motorised elevator allows the camera position to be adjusted remotely, helping operators maintain an optimal viewing position as pipe diameter increases.

CAM090-HD – 1080p Full HD Camera

At the heart of the system is the CAM090-HD, featuring a Sony STARVIS sensor for genuine Full HD pipeline imaging.

The camera combines exceptional image quality with powerful zoom and measurement capabilities for detailed survey work.

Features include:

• Genuine 1080p Full HD

• Sony STARVIS sensor

• 120x total zoom

• 10x optical zoom

• 12x digital zoom

• Continuous 360° rotation

• 135° tilt

• Dual laser measurement

The integrated laser measurement system allows operators to perform on-site defect sizing and pipe diameter measurements, providing additional information during condition assessment and reporting.

ACR350-HD Automatic Cable Reel

The ACR350-HD automatic reel provides up to 350 metres of cable capacity, making the system particularly well suited to long-distance mainline and infrastructure inspections.

Cable payout and retrieval are fully synchronised with crawler movement, reducing manual handling and helping maintain controlled cable management throughout the survey.

Features include:

• 350m cable capacity

• Automatic cable payout

• Automatic cable retrieval

• Fully synchronised with crawler movement

• Bluetooth joystick remote included

• Purpose-built for the Mini-Cam HD platform

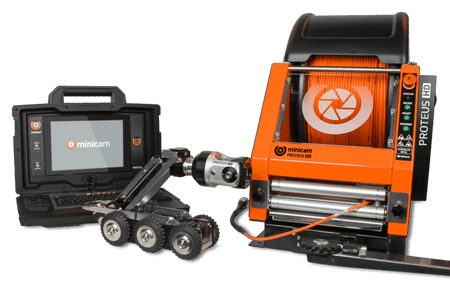

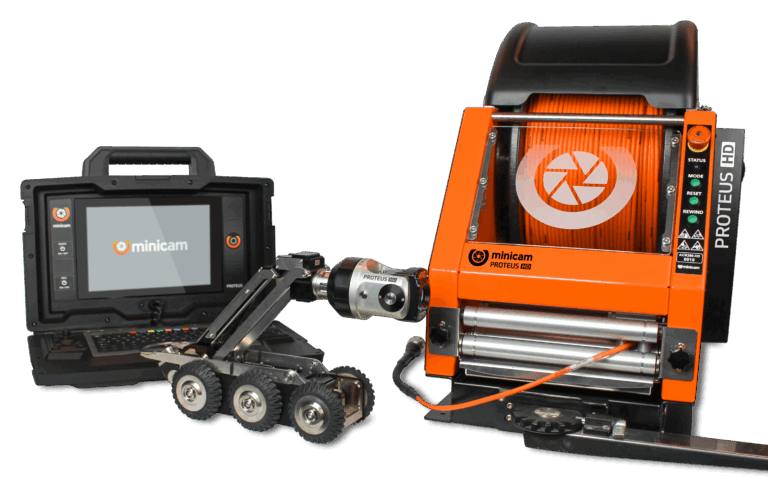

Full HD Across the Complete System

The major advantage of the Mini-Cam HD platform is that Full HD isn't limited to one component.

The system combines:

• MCU312 HD control and recording unit

• CRP140-HD 6-wheel-drive crawler

• CAM090-HD 1080p camera

• ACR350-HD automatic cable reel

• Full HD-compatible cable architecture

The result is a genuine end-to-end 1080p inspection platform, designed specifically for professional pipeline CCTV surveys.

Complete HD Crawler Package

The system includes:

• MCU312 HD 12" control unit

• CRP140-HD 6-wheel-drive crawler

• CAM090-HD Full HD pan, rotate and zoom camera

• ACR350-HD automatic reel

• Bluetooth joystick remote

• 115mm soft-rubber wheel set

• 140mm soft-rubber wheel set

• 140mm XL soft-rubber wheel set

• 5m MCU-compatible SD/HD link cable

Additional cradle configurations can be added for larger-diameter inspection applications.

Built for Professional NZ Pipeline Inspection

The Mini-Cam HD Crawler System is designed for professional CCTV inspection contractors, councils, civil contractors and infrastructure asset managers requiring superior image quality and survey capability.

Typical applications include:

• Sewer mainline CCTV surveys

• Stormwater network inspections

• Council and infrastructure asset surveys

• Detailed condition assessment

• Defect identification and measurement

• Pre- and post-rehabilitation surveys

• CIPP and relining inspections

• Large-diameter pipeline inspection

• Long-distance mainline surveys

Key Specifications

Standard Pipe Range: DN140–DN600
Extended Capability: Cradle-ready up to DN1050
Video Resolution: Genuine 1080p Full HD – 1920 × 1080
Crawler: CRP140-HD
Drive: 6-wheel drive
Camera Elevator: Motorised
Camera: CAM090-HD
Camera Sensor: Sony STARVIS
Zoom: 120x total – 10x optical / 12x digital
Camera Rotation: Continuous 360°
Camera Tilt: 135°
Measurement: Dual laser measurement
Sonde: 512 Hz / 640 Hz / 32 kHz
Inclination Sensor: Yes
Crawler Rating: IP68
Cable Reel: ACR350-HD automatic reel
Reel Capacity: 350m
Control Unit: MCU312 HD
Display: 12" / 1000 nits
Control Unit Rating: IP65
Reporting: WinCan ProTouch
Internal Storage: 256 GB, expandable to 2 TB+

See More. Capture More. Report with Confidence.

The Mini-Cam HD Pipe Inspection Crawler System is built for operators who want maximum image quality from their inspection equipment.

With true 1080p Full HD throughout the system, 120x zoom, dual laser measurement, motorised elevation, 350m reel capacity and integrated WinCan reporting, it provides a premium platform for detailed pipeline condition assessment across New Zealand.

Available in New Zealand from Ketta Pumps.

Contact the Ketta team for NZ pricing, demonstrations, system configuration, training and technical support.
