Mini-Cam Proteus Lite Crawler Inspection System

Entry-Level Lite Crawler System | DN150–DN375

The Mini-Cam Proteus Lite is a compact, cost-effective crawler inspection system designed for professional CCTV inspection of sewer mainlines and underground pipelines.

Built as an all-in-one, highly portable system, Proteus Lite provides many of the capabilities of a larger crawler system without requiring a dedicated inspection vehicle. Its compact design makes it ideal for accessing manholes in parks, reserves, backyards and other locations where vehicle-mounted systems simply can't reach.

Designed for a nominal pipe range of DN150–DN375, the Proteus Lite is an excellent entry point for New Zealand contractors looking to move into professional mainline CCTV inspection.

Innovative All-In-One System

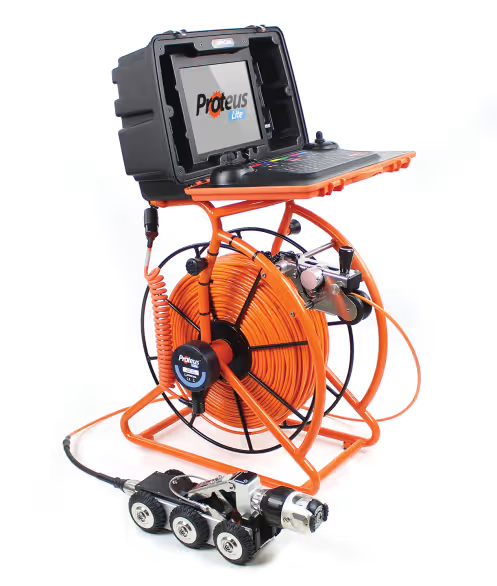

The Proteus Lite combines the crawler, camera, control unit and 250m cable reel into a practical system that can be transported and deployed by an inspection crew in the field.

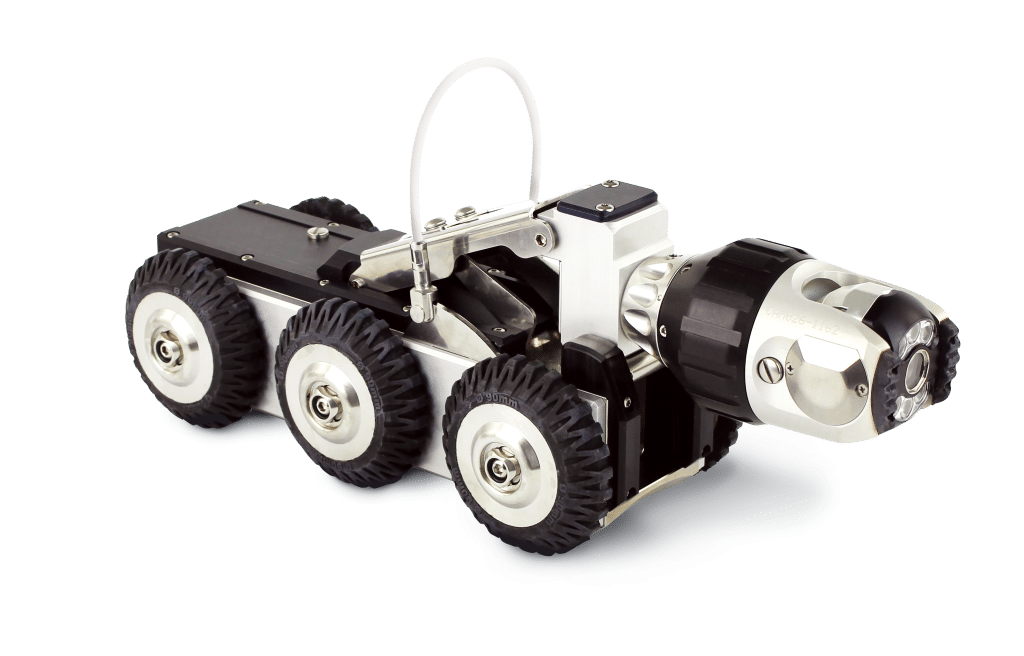

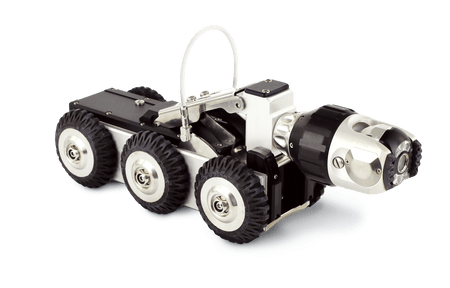

The compact CPL150 Lite crawler comfortably enters DN150 pipework, while its manual elevator and multiple wheel configurations allow the camera position to be adjusted for larger diameter pipelines.

Although the nominal system range is DN150–DN375, Proteus Lite systems are often operated in DN400–DN450 pipework in suitable conditions, giving contractors additional flexibility across a wide range of inspection applications.

Complete Proteus Lite Package

The system includes:

• RMPL250 manual cable reel with 250m cable

• Proteus control unit with 24V power supply

• CAM026 pan & rotate camera

• Endless camera rotation with ±135° pan

• CPL150 Lite crawler with manual elevator

• Complete wheel set — 90mm, 115mm and 140XL

• Multi-frequency sonde for locating

• Integrated inclination sensor

• Coiled link cable

Built for New Zealand Inspection Contractors

Proteus Lite is particularly well suited to NZ drainage contractors, CCTV operators, civil contractors and councils that need professional mainline inspection capability without investing in a full vehicle-mounted crawler system.

Its portable configuration also makes it an excellent option for locations with restricted vehicle access, allowing the system to be carried closer to the inspection point and deployed directly from the manhole.

Key Specifications

Nominal Pipe Range: DN150–DN375
Practical Extended Range: Up to DN400–DN450 in suitable applications
Cable Length: 250m
Crawler: CPL150 Lite
Camera: CAM026 Pan & Rotate
Camera Movement: Endless rotation / ±135° pan
Elevation: Manual elevator
Wheel Sizes: 90mm, 115mm & 140XL
Sonde: Multi-frequency
Inclination Sensor: Yes
Reel: RMPL250 manual cable reel
Power Supply: 24V

Professional Crawler Inspection Without the Full-Sized Setup

For contractors wanting to step up from push cameras into mainline crawler inspection, the Proteus Lite offers an excellent balance of capability, portability and investment.

With 250m of cable, pan-and-rotate camera functionality, multiple wheel configurations, sonde locating and inclination measurement, it provides a serious inspection platform in a compact package.

Available in New Zealand from Ketta Pumps.

Contact the Ketta team for NZ pricing, demonstrations, training and technical support.
