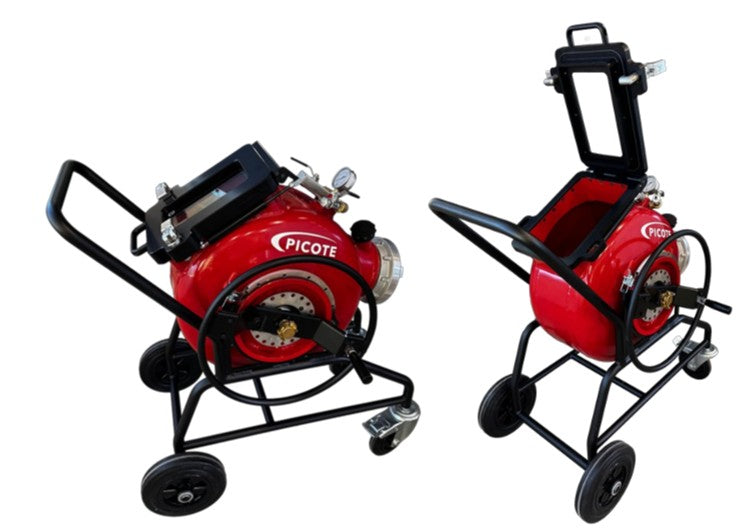

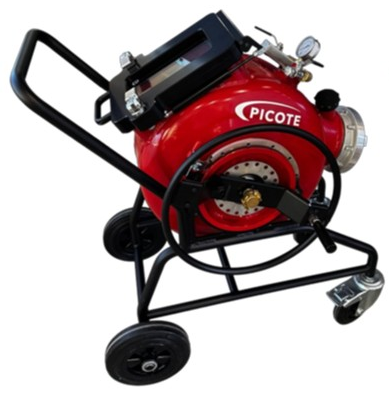

Picote 550 Inversion Lining Drum for up to 45 m x DN100 liner - all models

Picote 550 Inversion Lining Drum for up to 45 m x DN100 liner - all models
The NEW Picote Lining Drums are packed with functionality and with a host of convenient design features, offering contractors an easy and practical solution for installing CIPP lining.
Designed by CIPP experts who've lost count of the pipes they've lined, you won't find a more user-friendly drum on the market.
All Picote Lining Drums are CE certified.
We are a certified A2 Class pressure vessel manufacturer.
2 Stage Fast-Action Door: Fast, safe and secure opening and locking

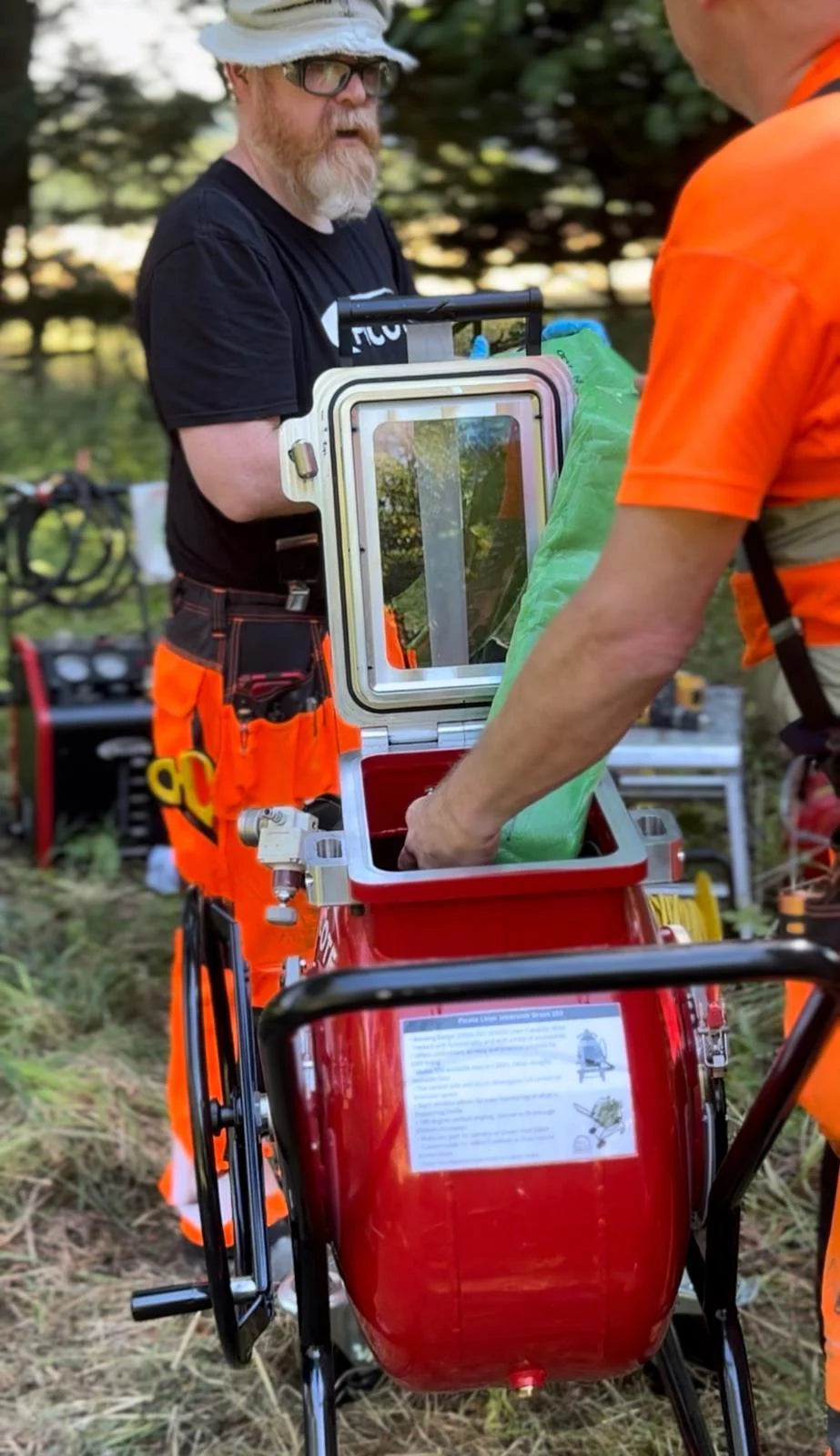

Oversized rectangular hatch with large viewing window for easier loading and to see clearly inside without opening door.
Expanded Capacity: Lining Drum 550 has a capacity of up to 45 m (147 ft) of DN100 (4 inch liner)
Removable support baffles inside drum.
More liner can be fitted inside when these are removed.
Side-to-side switchable turning wheel with foldable handle.
Heavy duty friction bands giving unlimited stepless orientation of nozzle (can withstand 20 kg/44 lbs suspended 50 cm/1.6 ft in front of front wheel).

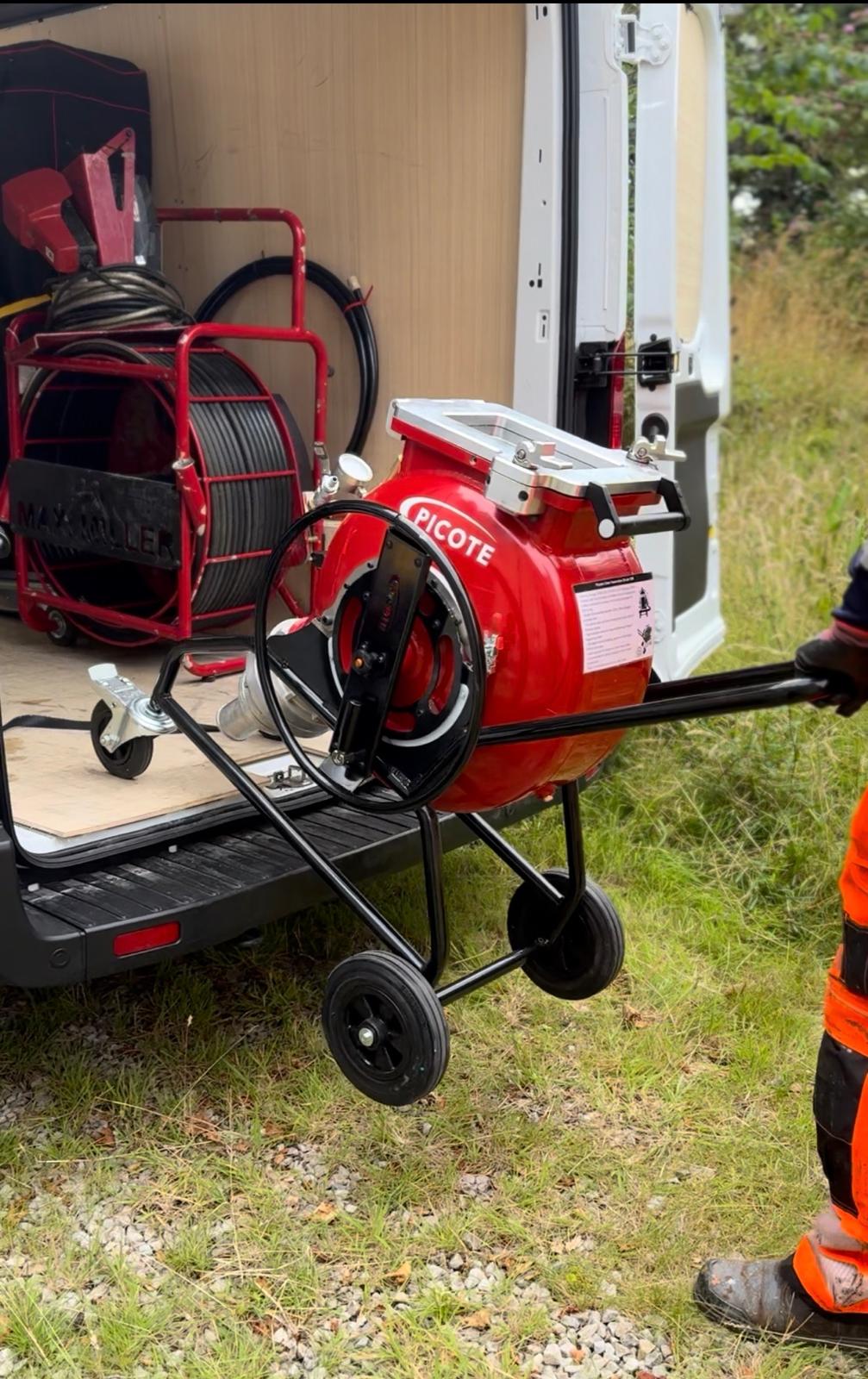

Quick-release of drum from trolley with dual-purpose securing bands.
Good ground clearance for navigating steps and doorsills.
Large diameter wheels for rolling on softer surfaces.
Sturdy trolley with offset centre of gravity/front wheels located further forward, to balance heavier UV curing rigs/equipment.
Lightweight: 550 is 50 kg (110 lbs)
Narrow: designed to fit through doorways
High Operating Pressure: 1.7 bar/25 psi
Multiport for CCTV, Smart Heat cable or steam application
Easy to adapt to either 6 inch Storz or 6 inch camlock
