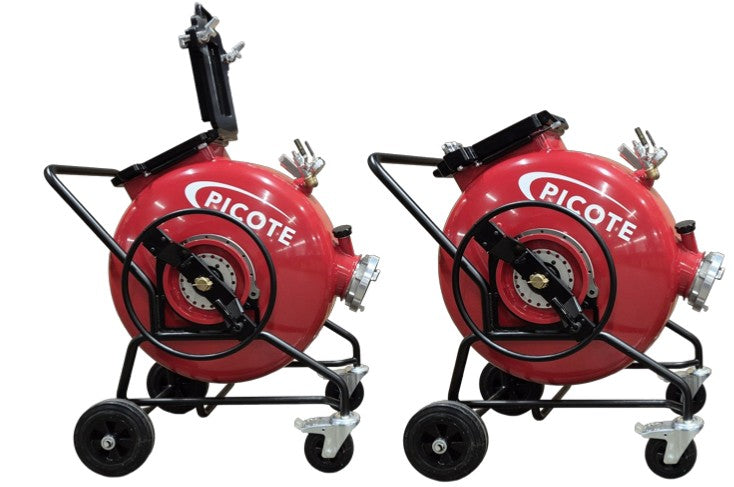

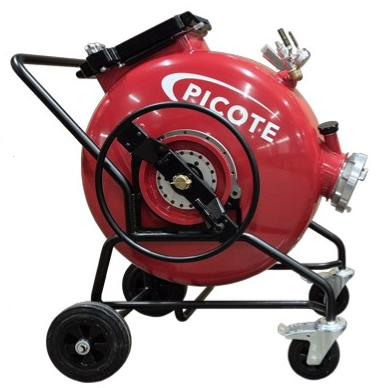

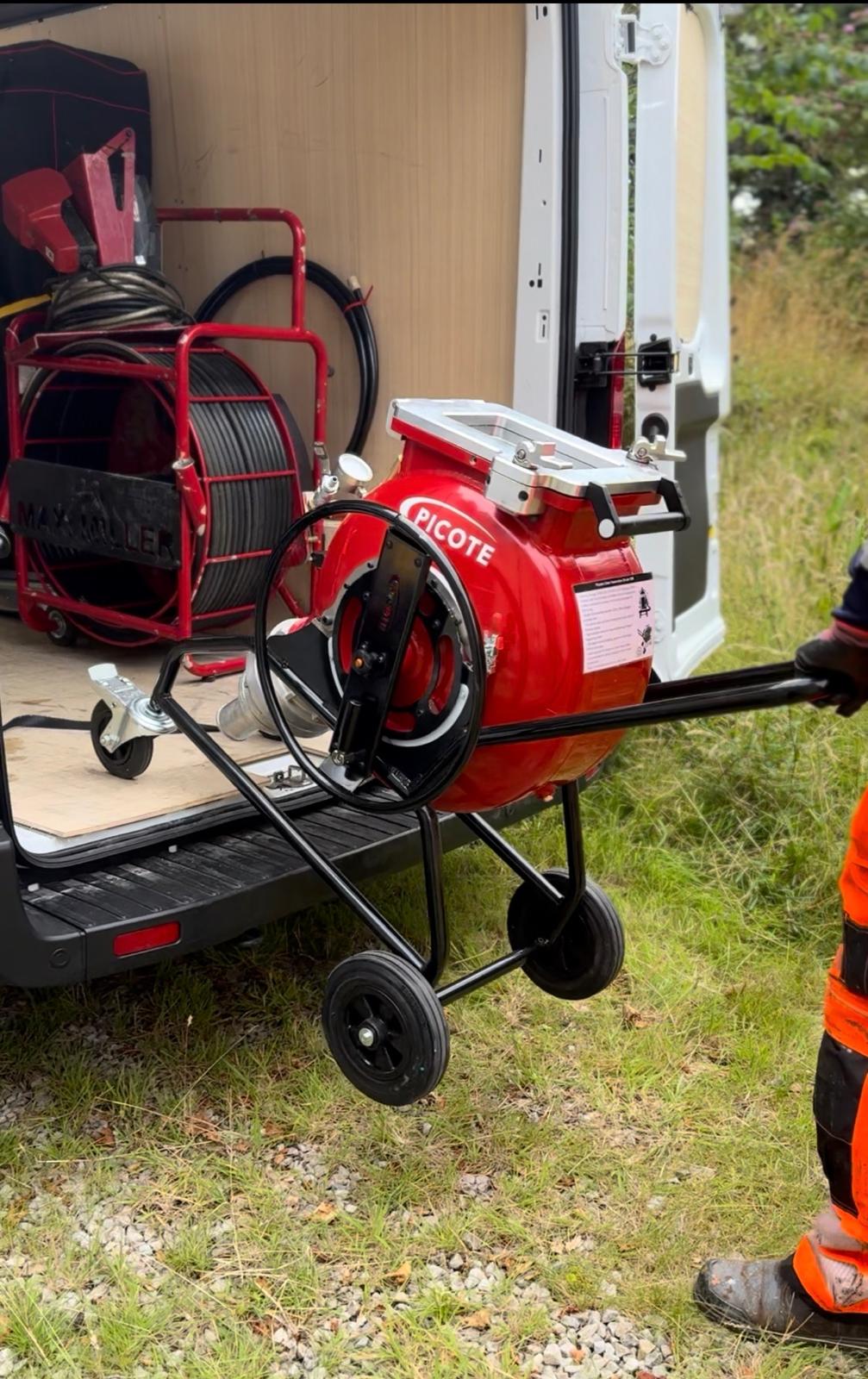

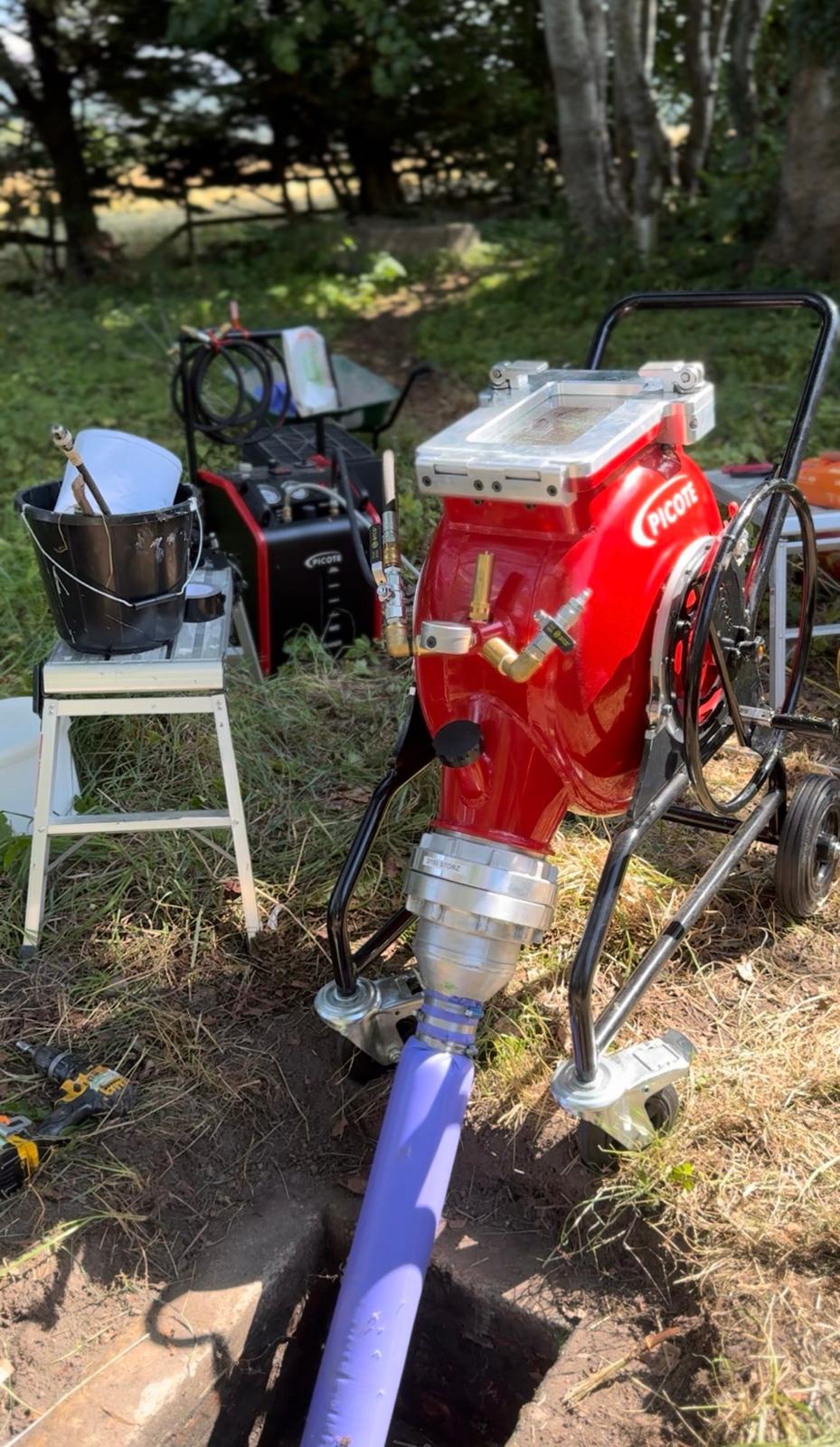

Picote 780 Inversion Lining Drum for up to 101 m x DN100 liner - all models

Picote 780 Inversion Lining Drum for up to 101 m x DN100 liner - all models
The NEW Picote Lining Drums are packed with functionality and with a host of convenient design features, offering contractors an easy and practical solution for installing CIPP lining.
Designed by CIPP experts who've lost count of the pipes they've lined, you won't find a more user-friendly drum on the market.
All Picote Lining Drums are CE certified.
We are a certified A2 Class pressure vessel manufacturer.
Applications and benefits:
2 Stage Fast-Action Door: Fast, safe and secure opening and locking

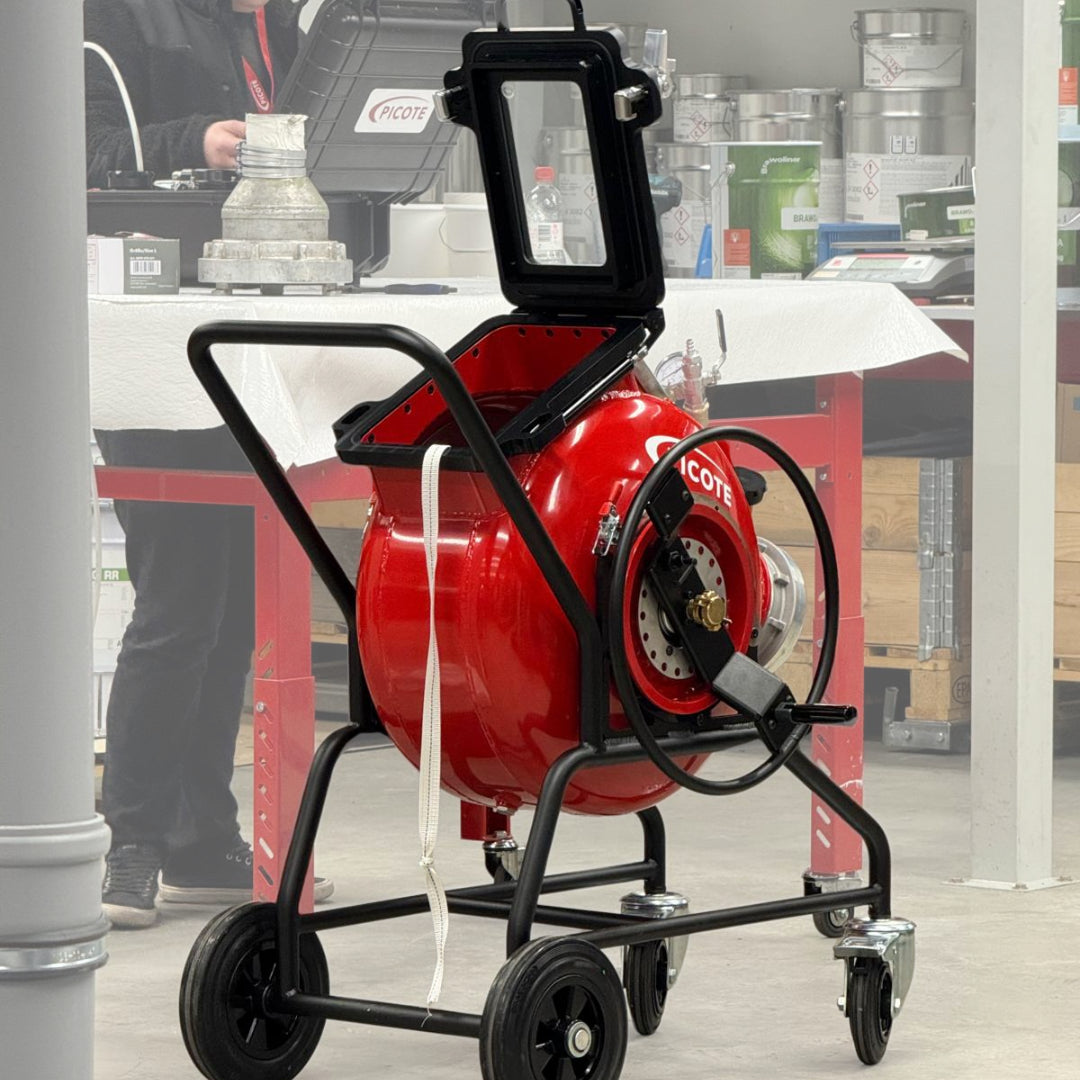

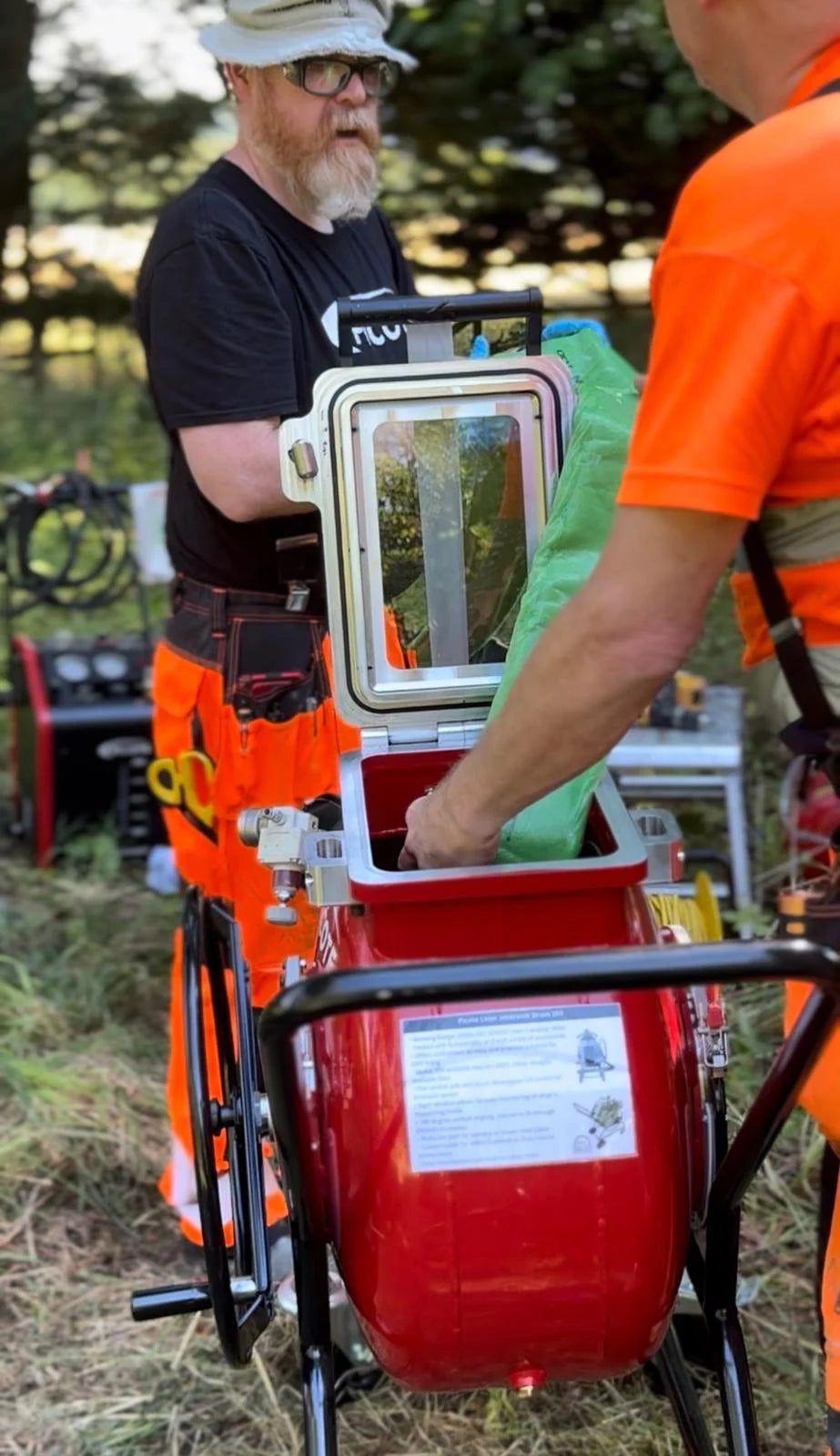

Oversized rectangular hatch with large viewing window for easier loading and to see clearly inside without opening door.
Expanded Capacity: Lining Drum 780 can hold up to 101 m (331 ft) of DN100 (4 inch) liner.
Removable support ”baffles” inside drum
More liner can be fitted inside when these are removed

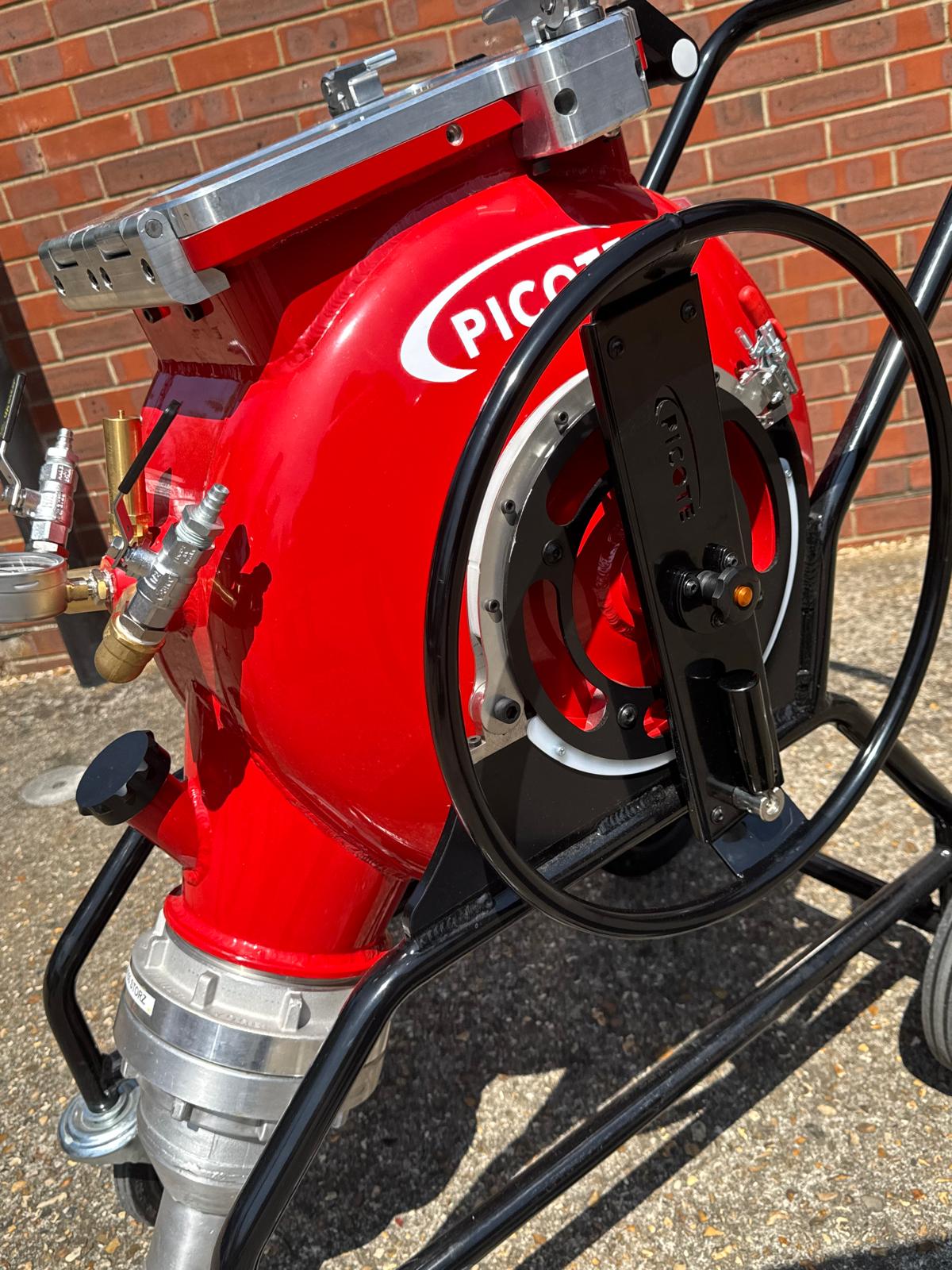

Side-to-side switchable turning wheel with foldable handle
Heavy duty friction bands giving unlimited stepless orientation of nozzle (can withstand 20 kg/44lbs suspended 50 cm/1.6 ft in front of front wheel)
Quick-release of drum from trolley with dual-purpose securing bands

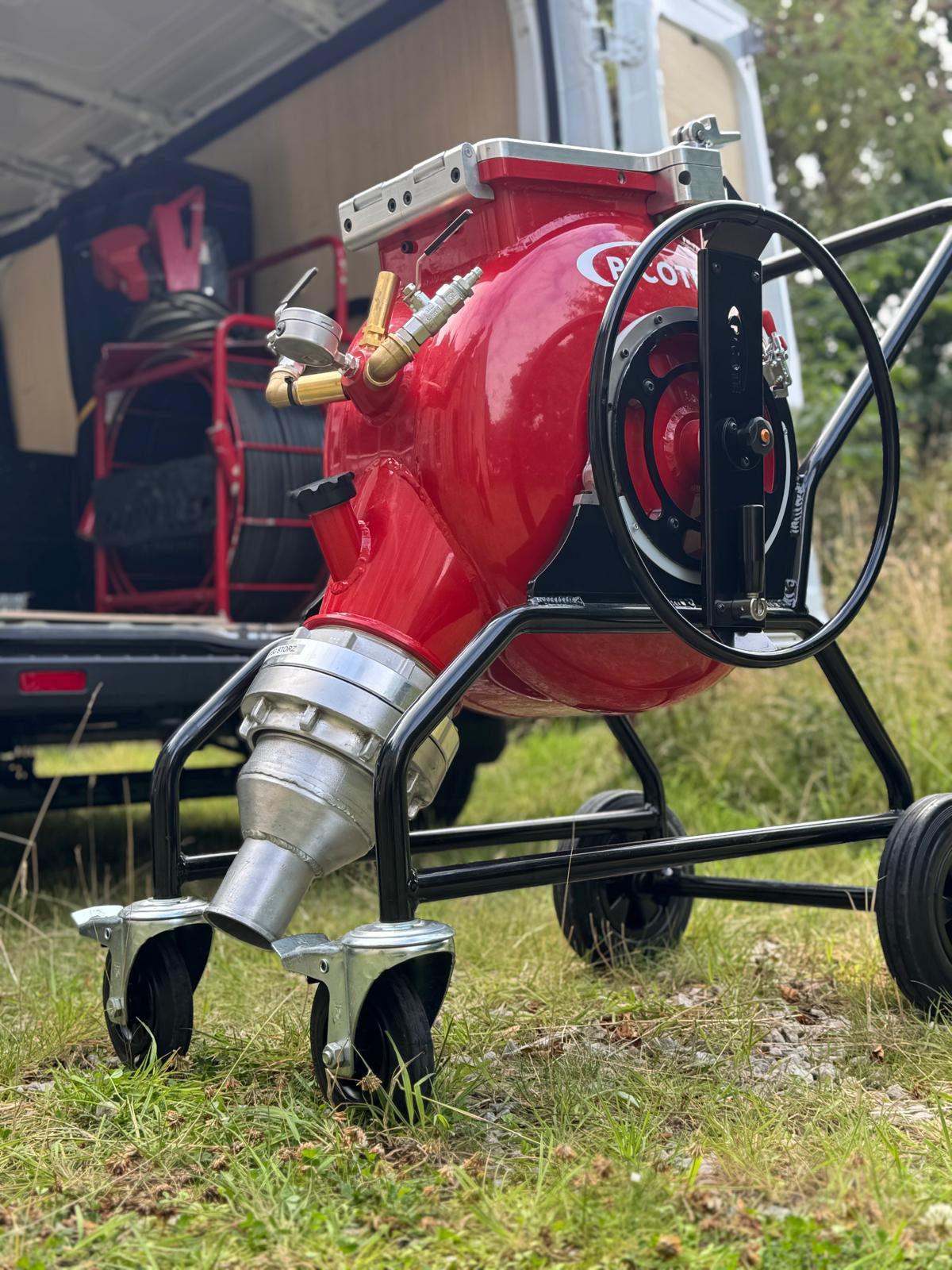

Good ground clearance for navigating steps and doorsills
Large diameter wheels for rolling on softer surfaces
Sturdy trolley with offset centre of gravity/front wheels located further forward, to balance heavier UV curing rigs/equipment
Lightweight: 65 kg (143 lbs)
Narrow: designed to fit through doorways
High Operating Pressure: 1.7 bar/25 psi
Multiport for CCTV, Smart Heat cable or steam application

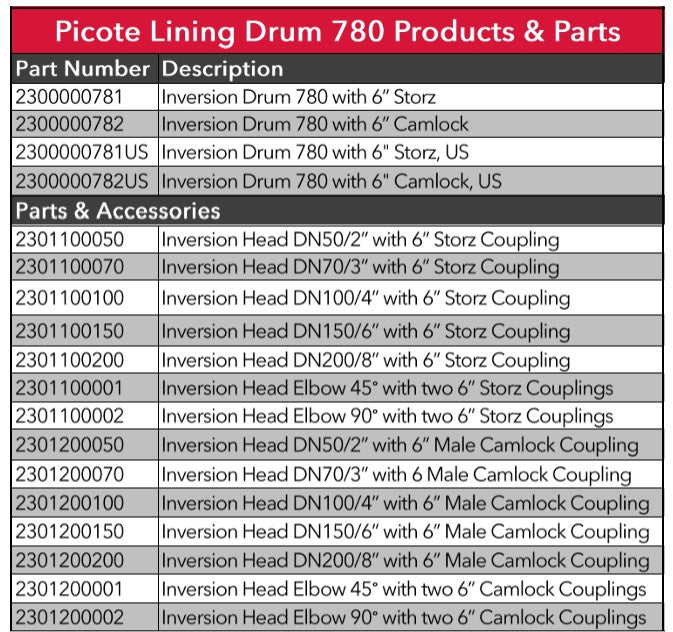

Easy to adapt to either 6 inch Storz or 6 inch camlock
*Liner capacity is an estimate and is influenced by liner type, thickness, width and how the drum is loaded
