Picote DC1000E series 100% solids epoxy resin kit 5.6 kg (pack includes 6 x cartridges) - all types
Couldn't load pickup availability
Picote DC1000E series 100% solids epoxy resin kit 5.6 kg (pack includes 6 x cartridges) - all types
100% solids epoxy for use with the Mini and Maxi coating pump.
Includes:

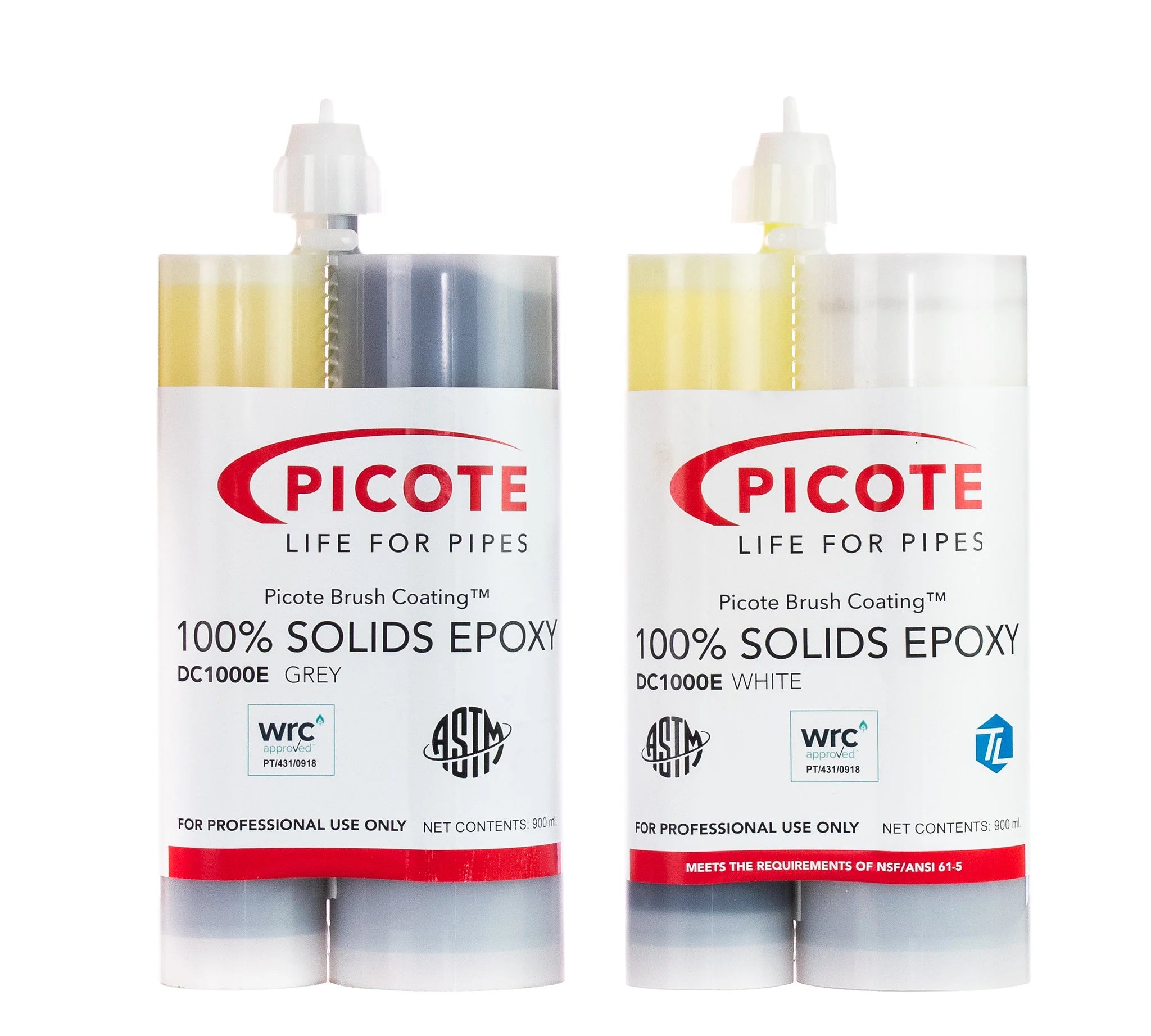

6 x cartridge kit (6 x White) or (6 x Grey) with 8 x tips and 3 x nuts.
Picote DC1000E 100% Solids Epoxy Resin used with the Picote Mini and Maxi Coating Pumps is used to rehabilitate decayed and damaged concrete, PVC, fiberglass, copper, clay, steel/stainless steel, cast iron and ductile iron pipes.
The dual colour method allows for clear visual verification during application.
Designed exclusively for the Picote Brush Coating™ System.
Certifications:
ASTM certified
NSF61 Certified for DN100 (4 inch) and larger pipes (final coat in white)
Applications and benefits:
This product has been created to renovate drains, sewers, water pipes, electrical conduits, heating and a/c ducts by brush casting layers of resin.
The specially formulated coating resin forms a semi-structural enhancing corrosion resistant barrier inside the original pipe that is a tested, safe and environmentally friendly product.
The new pipe is corrosion-resistant, wear-resistant and non-corrosive.
Thanks to a high breaking stretch, it also withstands shocks and bending.
The new pipe becomes elastic and antistatic.
1. Extend the life span of the original pipe:
The resin can be used to prolong the life of an existing pipe.
Clean the pipe well.
Apply two coats.
The new slick inner surface will increase the flow inside the pipe minimizing the risk of blockages.
2. Create a new semi structural pipe:
Apply several coats of the resin forming a seamless new pipe with a 2-4 mm wall thickness depending on the diameter of the drain.
Estimated 30-50 year design life when using Semi Structural Design Specifications based on pipe diameter.
Technical data:
Working range: 1-1/4 inch to 12 inch (DN32-300)
Recoat: 3 hrs @ 70ºF (21ºC)
Restore flow: 4 hrs
Final cure: 24 hrs (and for potable water)
Recoat after 12 hrs: abraid first with Smart Cutter™
Potable water: 4 inch (DN100) and above (final coat must be white)
Min. rate of coverage: 10 mils (0.3 mm)
Max. rate of coverage: 20-40 mils (0.5-1 mm)
