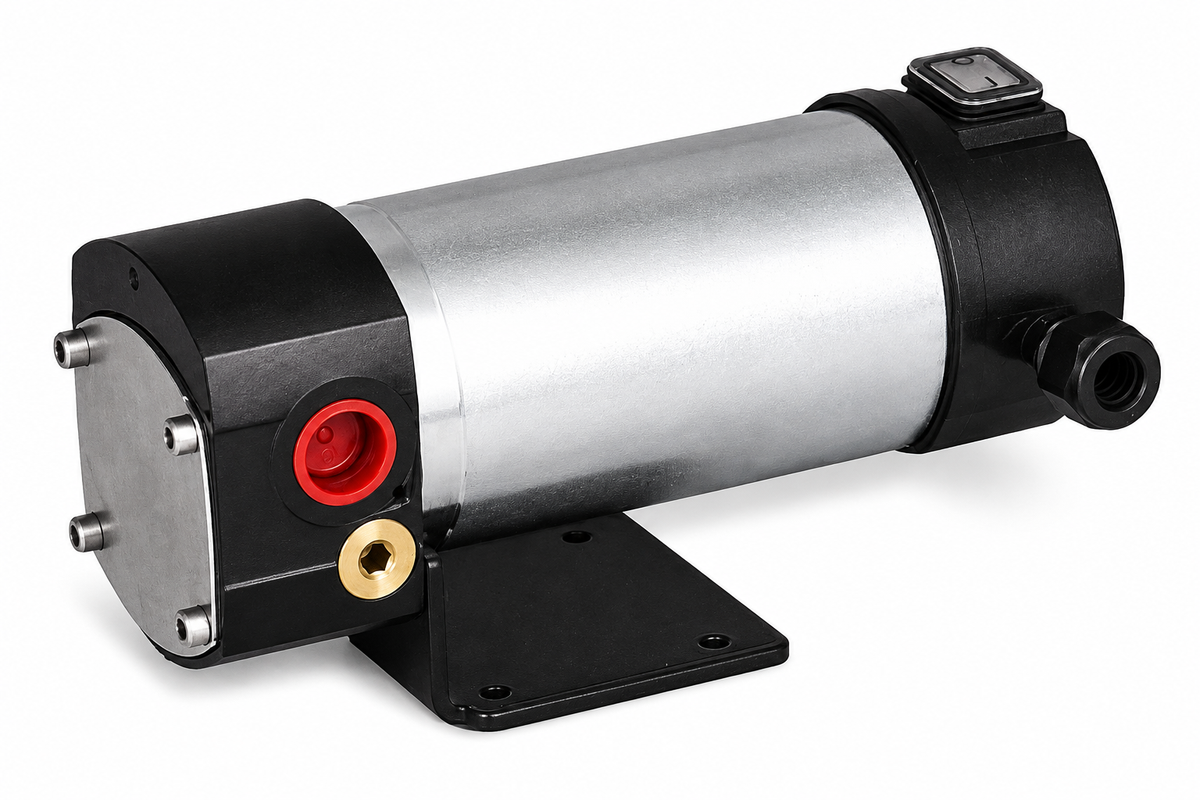

Piusi Viscomat DC 120/1 gear pump 12/24v DC for oil 1/2 inch BSP(F) 5 lpm 10 bar (145 psi)
Regular price
$1,024.00 NZD
excl GST
Couldn't load pickup availability
Piusi Viscomat DC 120/1 gear pump 12/24v DC for oil 1/2 inch BSP(F)
5 lpm (1.4 gpm), 10 bar (145 psi)
200 watt 2900 rpm
1/2 inch BSP(F) ports
No pressure switch
30 minute duty cycle
Dimensions: 345 mm x 175 mm x 255 mm (L x W x H)
Piusi Viscomat DC 120/1 is suitable for gear oil
Piusi uses SAE 80W-90 gear oil at 24°C for its performance chart, and rates this model for oil viscosity up to 2,000 cSt.
The 5 lpm and 10 bar figures are its published ratings; flow with a particular gear oil will depend on its temperature, viscosity and hose setup.
