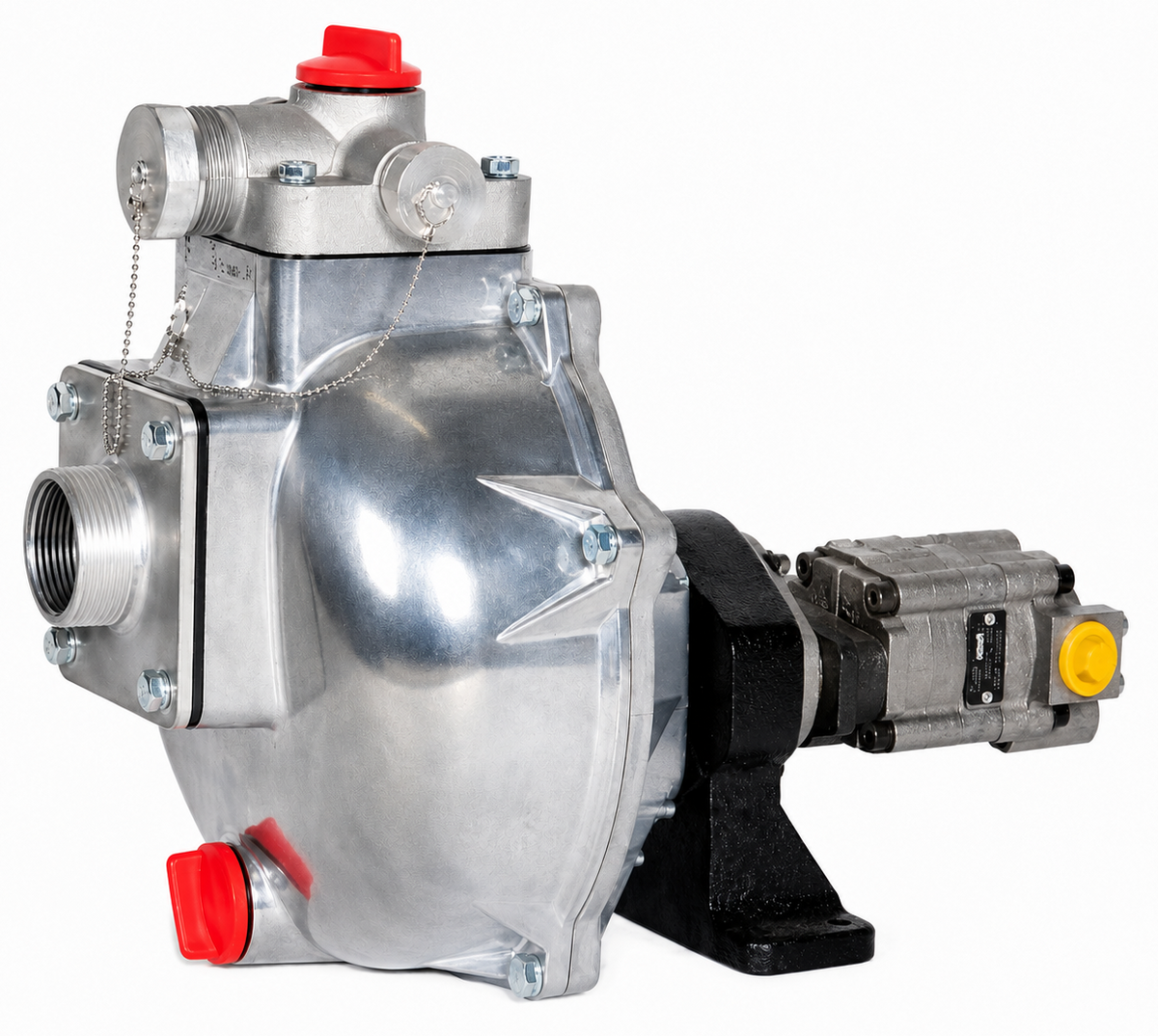

QuickPrime QP205SL single impeller fire pump (Nitrile seals) hydraulic driven 2 inch BSP(M) 510 lpm 75 m head

QuickPrime QP205SL (Nitrile seals) 2 inch BSP(M) single impeller fire pump
Hydraulic motor driven
Materials:
Nitrile pump seals
Marine grade aluminium pump components
Cast iron pedestal base
Performance:
Self-priming
510 lpm (135 gpm), 75 m head (246 ft), 7.5 bar (109 psi)
3600 rpm max
Hydraulic data:
12 hp hydraulic motor
Compatible with open or closed hydraulic systems
23 to 38 lpm (6 to 10 gpm) hydraulic fluid requirement
34 to 138 bar (500 to 2000 psi) hydraulic fluid requirement
Dimensions: 430 x 270 x 370 mm (L x W x H)
Parker Gresen MGG20025 hydraulic motor data:
Displacement: 0.580 in.3 (9.5 cm3)
Max rpm: 5000
Rated flow per 1000 rpm (nominal): 21.51 gpm (9.5 lpm)
Max rated pressure (continuous): 2000 psi (138.0 bar)
Max rated pressure (intermittent): 2500 psi (172.5 bar)
