Remco ProFlo FatBoy 12v diaphragm pump kit with speed control box and filter 26.5 lpm 6.9 bar (100 psi)
Couldn't load pickup availability
Remco ProFlo FatBoy 12v diaphragm pump kit with speed control box and filter
26.5 lpm
6.9 bar 100 psi

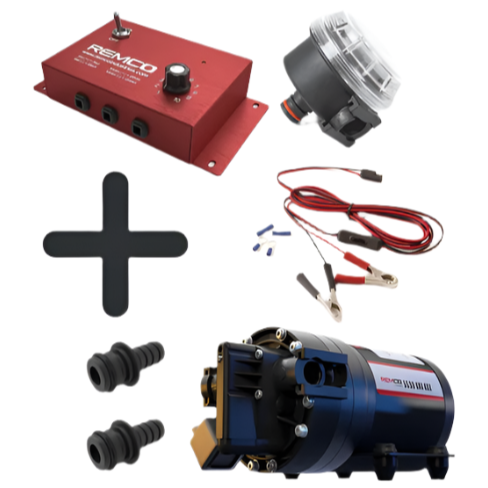

Kit includes:
- Remco ProFlo FatBoy 12v diaphragm spray pump model 5518-1I1-94A (code 723.5518)
- Remco RRC35-NGK 12v motor speed rate controller (code 723.RRC35-NGK)
- Remco 2.4 m wiring harness cable kit switch and battery clamps (code 723.600270)
- Remco 25-181-R filter 40 mesh 3/4 inch Quick Attach M/F fittings (code 723.25-181-R)
Pump data:
- Remco ProFlo FatBoy 12v diaphragm pump model 5518-1I1-94A, 5 chamber diaphragm type pump, 3.6 m electric power cable, demand pressure switch, OK to run dry
Performance:
- 26.5 lpm, 6.9 bar (100 psi), self priming to 4 m (14 ft), 25 amps max
Pump ports:
3/4 inch Quick Attach ports
Includes hose tails: 1 x 13 mm (1/2 inch) straight hose tail, 1 x 13 mm (1/2 inch) elbow hose tail
Optional adapters - Remco pump fitting adapter pack (Code 723.QTS-556) includes: 2 x 3/4 inch Quick Attach x 1/2 inch NPT(M) male thread adapters
Pump temperature limits:
- liquid temperatures to 60°C (140°F) max, motor is not equipped with thermal protection, for user safety, optimal performance and maximum motor life the motor surface temperature should not exceed 82°C (180°F)
Pump includes:
- power feed wiring kit
- pump wiring kit
- mounting screws
Pump materials:
- Polypropylene body, Santoprene diaphragms, Viton valves
Remco RRC35-NGK 12v motor speed rate controller:
Heavy duty sealed wire connections
150 mm (6 inch) wiring pig tails included with controller
Reverse polarity protection
Manual rheostat for accurate pump speed and pressure control
Circuit breaker protection
Pressure sensor for digital display units which includes 6 m (20 ft) cable
Can be purchased as a kit which includes 3 m (10 ft) power and 6 m (20 ft) output wires
Auxiliary stainless steel ammonia pressure gauge kit can be purchased with and without plumbing
Sized in conjunction with Remco Pro-Flo pumps
Applications include:
- Heavy duty spraying, High pressure cleaning, Agricultural spraying, Liquid fertiliser, General industrial use
