RotoFluid FT series cast iron rotary gear pump BSP(F) threads 1440 rpm 10 bar (145 psi)
Couldn't load pickup availability
RotoFluid FT series cast iron rotary gear pump BSP(F) threads 1440 rpm 10 bar (145 psi)
Bare shaft pump rated @ 1440 rpm
Pre-set pressure @ 10 bar (145 psi) max
Maximum fluid temperature to 80ºC
Features:
Single helical gear design
Low noise
With relief valve design
High efficiency
Self priming pump
Bi-direction positive displacement pump
Description:

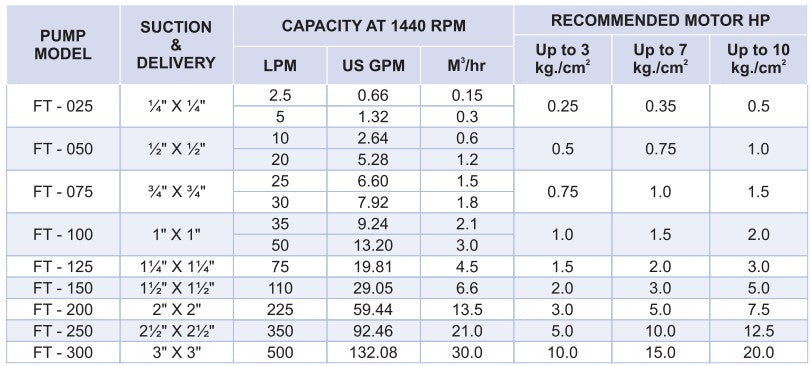

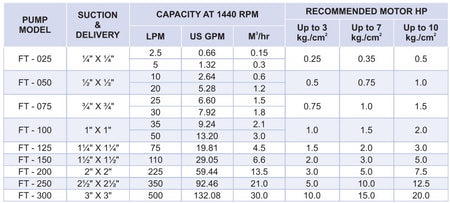

These pumps can be operated up to pressure of 10 bar (10 kg/cm²) with 5 lpm to 500 lpm flow capacity
These pumps are designed to run at 1440 rpm up to viscosity of 50,000 to 1,00,000 SSU
Information:

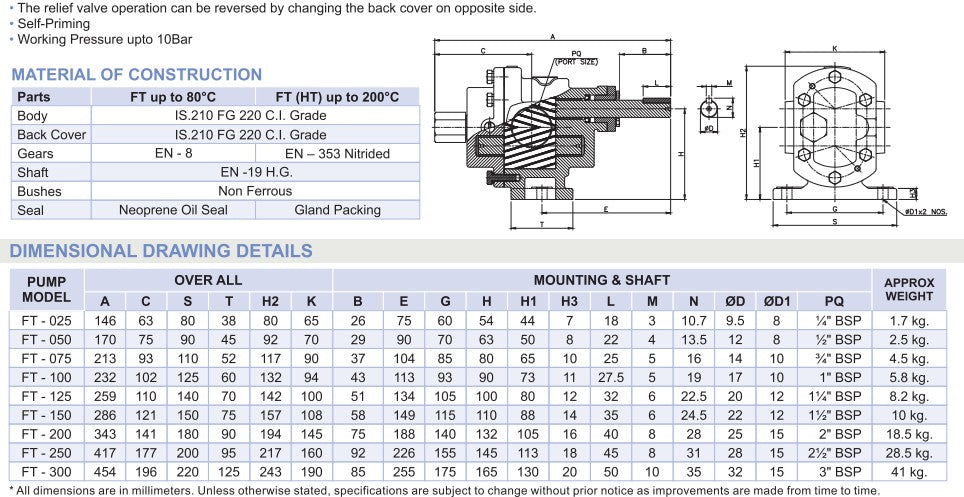

Model “FT” having simple two pieces with cast iron construction which is single helical modified profile carton steel gear shrink fitted on alloy steel hardened and grind finished shaft as gear firmly supported 4 nos. of self lubricated sintered bronze bush bearing which ensure smooth running
These pumps can be run in either direction with change in inlet-outlet port position
The relief valve operations can be reversed by simply changing the R.V. parts on opposite side
Applications include: Castor Oil, Coconut oil, Milk, Molasses, Olive Oil, Palm Oil, Soap, Solvents, Vinegar, Paint, Gum, Adhesive, Ghee, Furnace Oil, Mineral Oil, Chemicals, Ink, Crude Oil, HFO, Diesel, Batter, Chocolate, Fruit Juice, Glycerin, Ice cream, Jelly, Liquid Sugar, Syrup, Tomato Ketchup, Vaseline, Oil, Waste Oil, Grease, LDO, HSD, Hydraulic Oil, Lubricating Oil, Bitumen, Turbine Oil, Cheese, Cream, Glucose, Honey, Jam, Ketchup, Soup, Tomato Paste, Toothpaste, Liquid Hand Wash, Asphalt, All kinds of mineral oils, Dyes and resins, Glycerin and glycol, Bitumen, Fuel oil, Diesel, Furnace oil, Power plant, Steel plant, Cement plant, Oil storage installations
