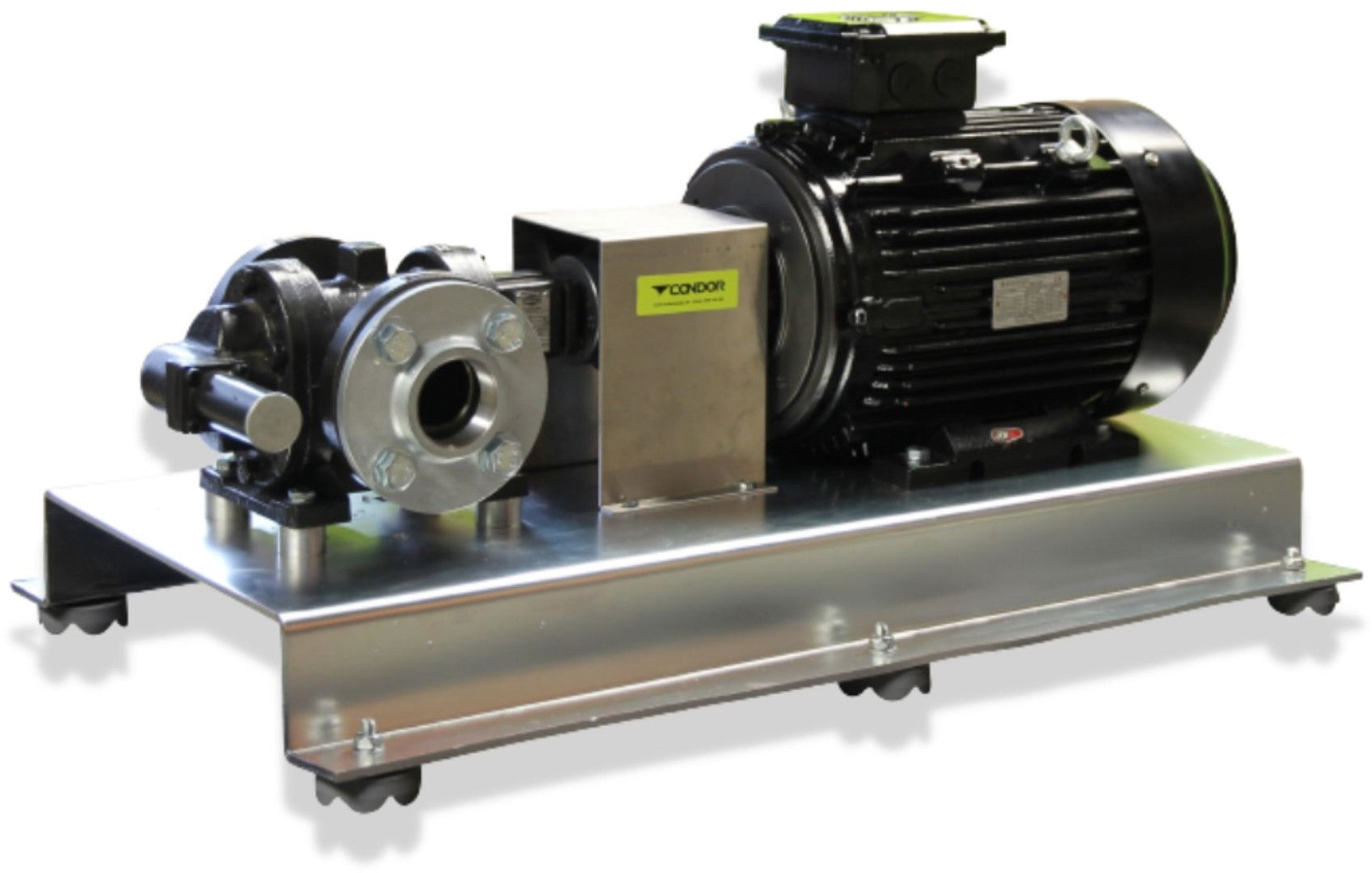

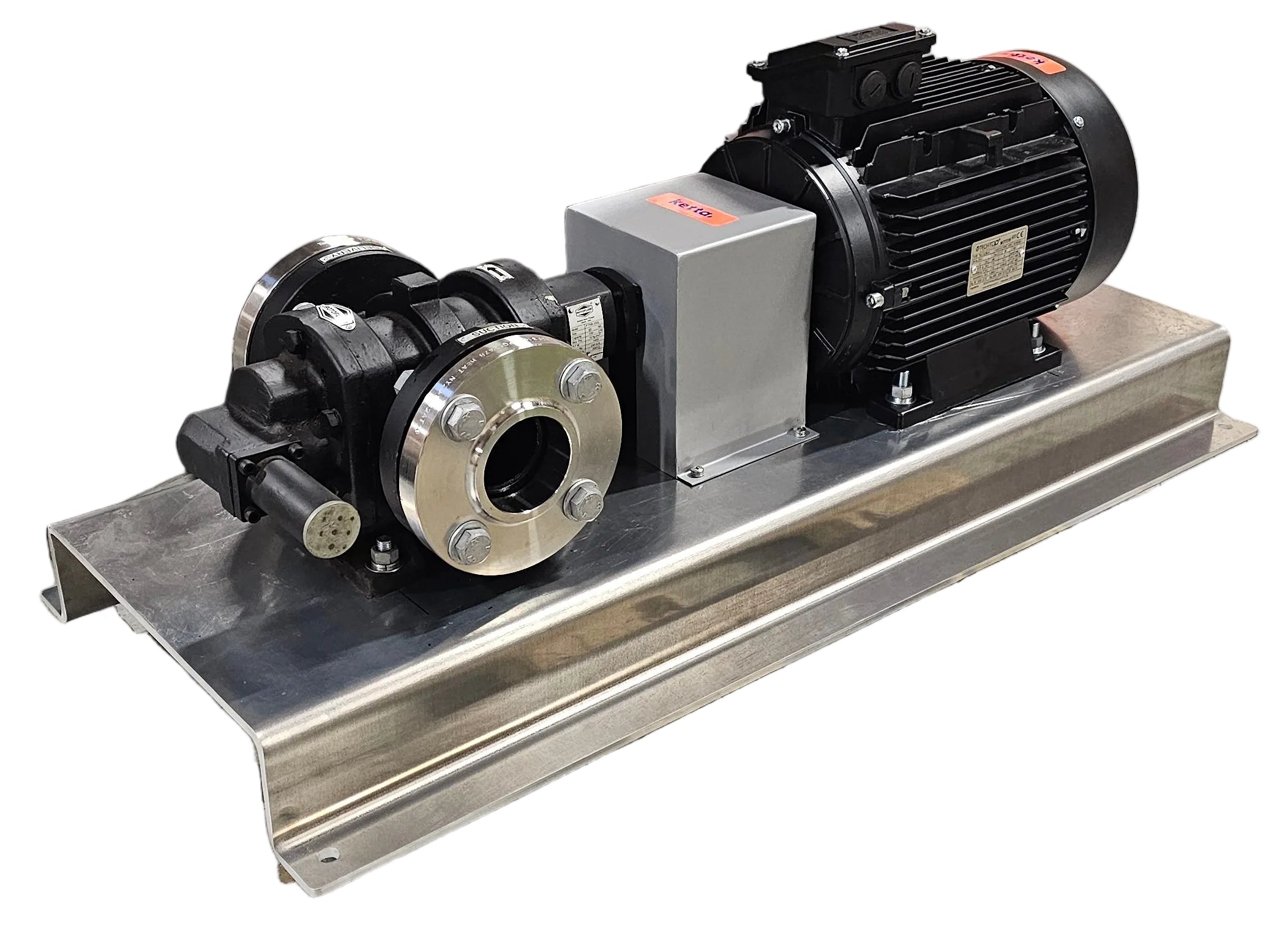

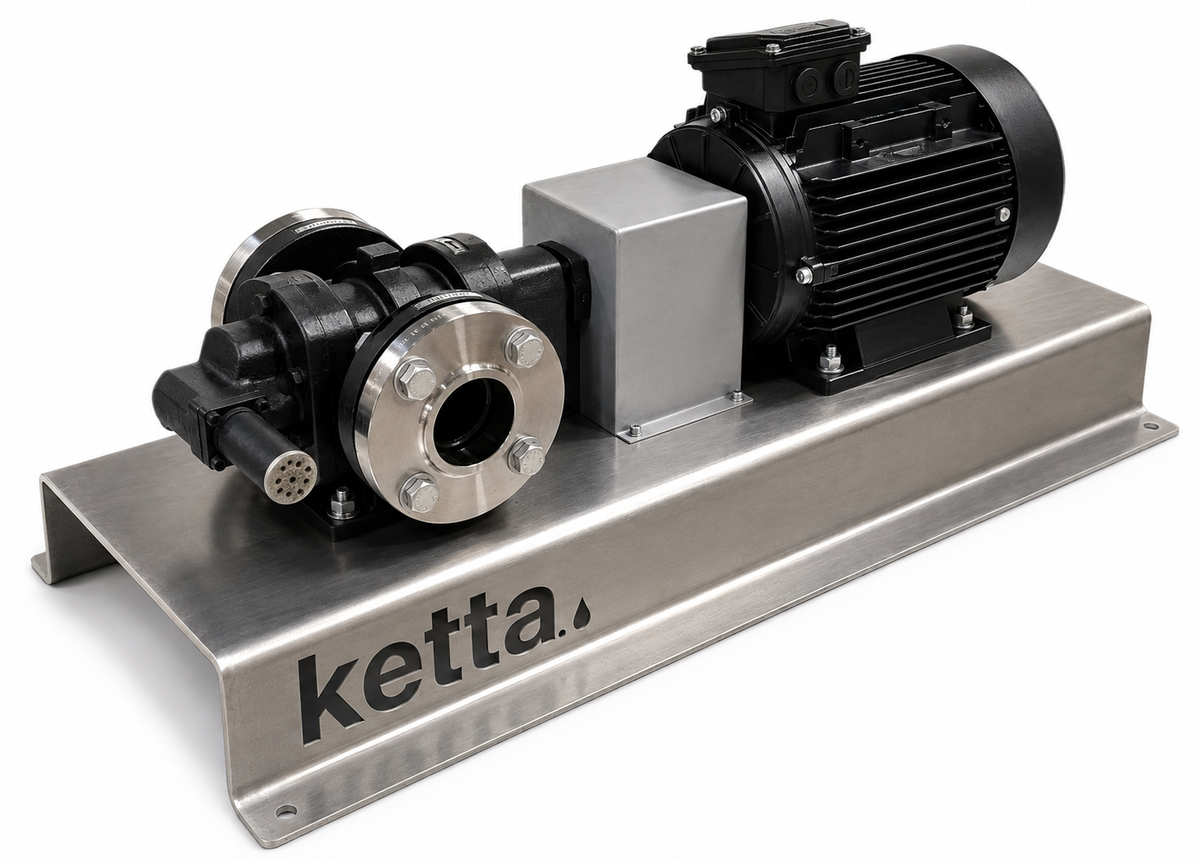

Heavy-duty positive-displacement rotary gear pump for transferring oils, fuels and compatible high-viscosity liquids. Important: a VSD (Variable Speed Drive) electric motor speed controller is highly recommended to manage pump performance and electric motor load.
Performance
Rated speed
1440 rpm
Maximum pressure
10 bar (145 psi)
Maximum viscosity
Up to 100,000 SSU
Maximum liquid temperature
Up to 200°C
Construction
Pump type
Positive-displacement rotary twin-gear pump
Pump body
Heavy-duty cast iron
Connections
BSP(F) threaded flange ports included
Gear design
Refined double-helical herringbone gears
Shaft
Hardened, precision-ground shaft
Pressure protection
Integral pressure-relief valve
Construction
Three-piece design for easy cleaning and maintenance
Mounting
Heavy-duty foot-mounting base
Key features
✓ Continuous-duty rated
✓ Integral pressure-relief valve
✓ Handles high-viscosity liquids
✓ Threaded flange ports included
✓ Herringbone gears eliminate side thrust
✓ Floating gears distribute load uniformly
✓ Hardened, precision-ground shaft
✓ Easy cleaning and maintenance
Typical applications
Oils and fuels
Gear oil, hydraulic oil, animal oil, fish oil, vegetable oil, furnace oil, petroleum products, naphtha and RFO
High-viscosity products
Bitumen, asphalt, tar, wax, silicate and other compatible viscous liquids
Food products
Honey, molasses and starch
