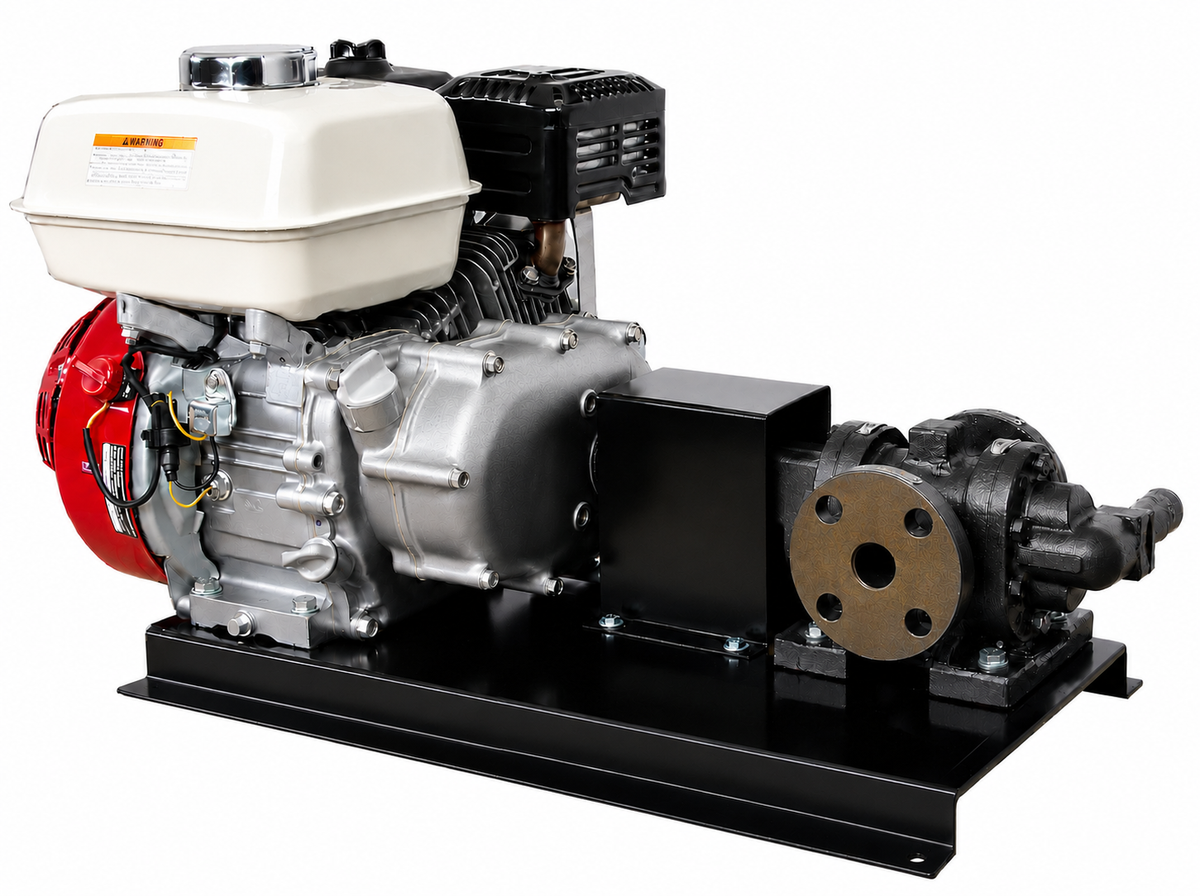

RotoFluid FTRB series heavy duty gear pump with Honda GX industrial engine 10 bar (145 psi)

RotoFluid FTRB series Honda engine driven heavy duty gear pump
Includes 2 x BSP(F) bolt-on flange ports
Heavy duty mounting base plate platform
Engine:
Honda GX series industrial engine
6 to 1 reduction gearbox
Performance:
Rated @ 600 rpm
100 m head
10 bar (145 psi) max
Fluid viscosity to 100,000 SSU
Maximum liquid temperatures to 200 degrees C
Pump description:
Internal relief valve
Positive displacement rotary twin gear pump
Double helical refined gears
Herringbone gear design eliminates side thrust
Floating gear design ensures uniform load distribution
Hardened ground finished shaft
Three piece construction for easy cleaning and maintenance
Continuous duty rated
Applications include: Honey, Molasses, Bitumen, Asphalt, Oil, Gear oil, Hydraulic oil, Animal oil, Fish oil, Vegetable oil, Viscous liquids, Petroleum products, Furnace oil, Tar, Starch, Naptha, RFO, Silicate, Wax

Note: 3 inch version is a 2 inch pump fitted with 3 inch flanges
