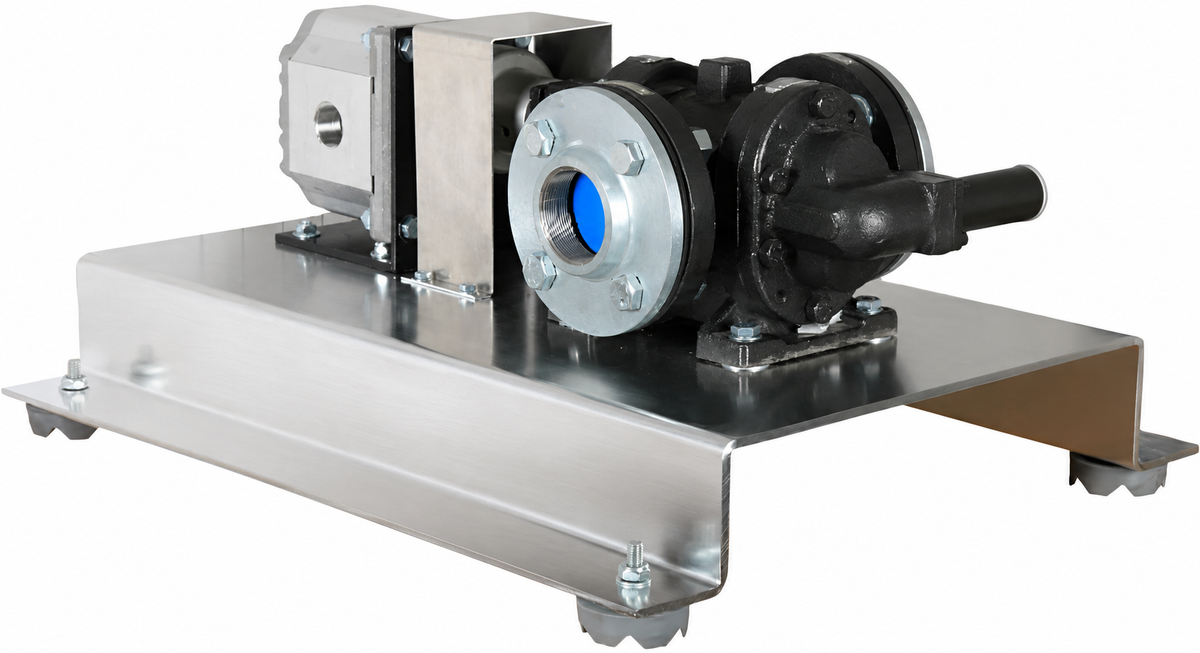

RotoFluid FTRB-100L hydraulic driven 1 inch BSP(F) cast iron gear pump 60 lpm @ 1440 rpm 10 bar (145 psi)

RotoFluid FTRB-100L hydraulic driven cast iron gear pump

1 inch BSP(F) ports

Includes 2 x BSP(F) bolt-on threaded port flanges

Performance:

60 lpm @ 1440 rpm

10 bar (145 psi) max

Viscosity up to 100,000 SSU

Maximum liquid temperatures to 200 degrees C

Pump features:

Heavy duty mounting base plate

Positive displacement rotary twin gear pump

Double helical refined gears

Herringbone gear design eliminates side thrust

Floating gear design ensures uniform load distribution

Hardened ground finished shaft

Three piece construction for easy cleaning and maintenance

Continuous duty rated

Hydraulic motor:

Standard Group gear pump hydraulic motor

Hydraulic speed controller:

Includes 3-port flow control valve to manage hydraulic motor speeds

Applications include:

Chemicals

Liquid stock feed supplements

Gear oil

Molasses

Paint

Liquid sugar

Pharmaceuticals
