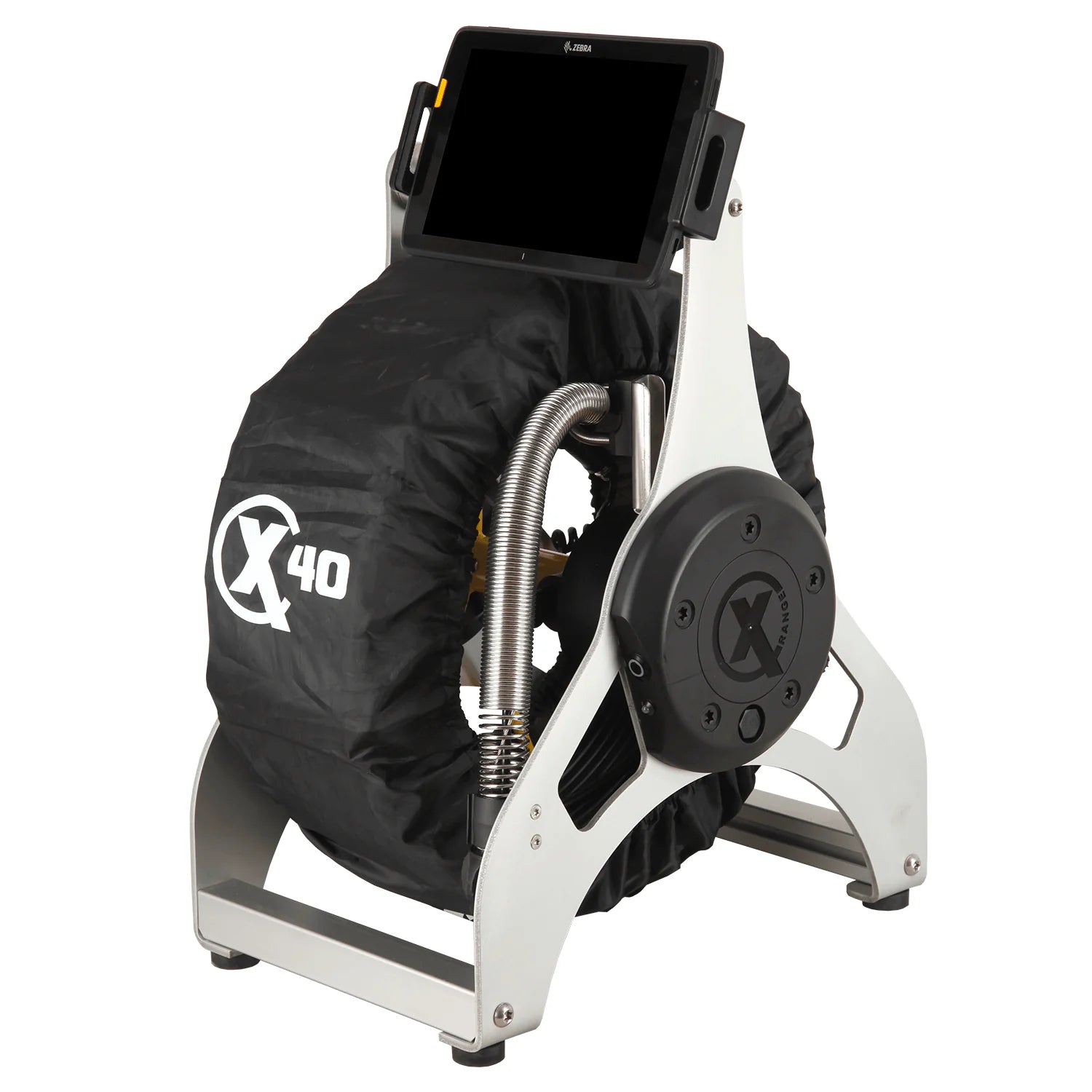

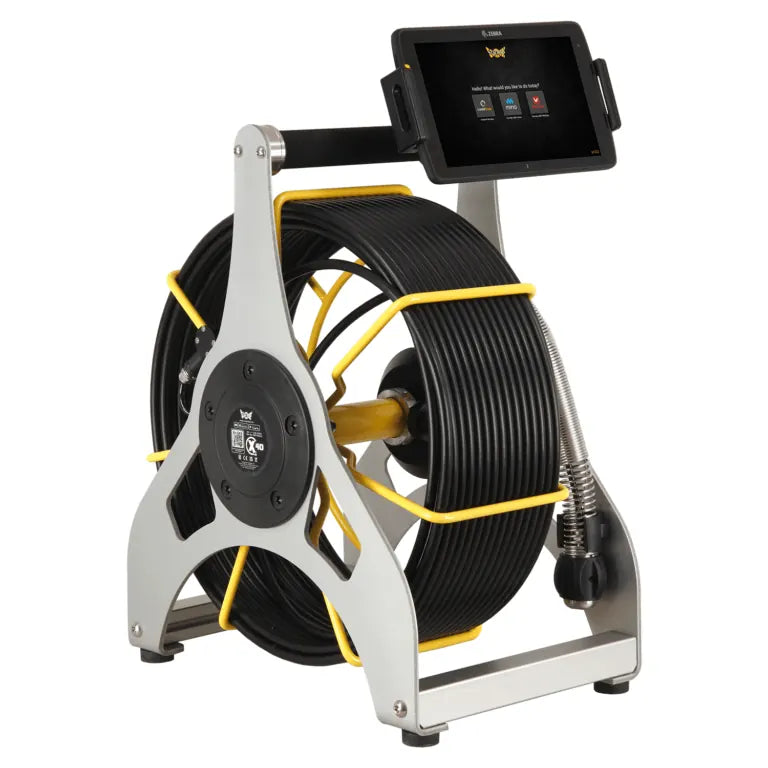

Scanprobe X40 (with 8" Tablet) - Push-Rod Camera System
Couldn't load pickup availability
The Scanprobe X-40 is the most versatile pipeline inspection system on the market.
Designed to be used with your personal mobile device on Android/iOS, a fully customised X-Range Tablet, or a bespoke Maxprobe CCU. Made from light weight aluminium and incorporating a 30mm, fully traceable camera head, that has the flexibility to navigate traps and toilet bends, the X40 truly is the next generation of inspection cameras.
The X-40 combines technology, software and robust designs to create an easy-to-use, lightweight, battery operated (up-to 6hrs) and multifaceted product. With an X-40 on your inventory, you’ll wonder how you managed to survey with out one.
You can use: 1) your own mobile phone/tablet (iOS or Android) — either with the free MINA looksee app, or a reporting app with a monthly subscription; 2) a bespoke tablet with full MINA & WinCan ProTouch; 3) a Scanprobe control box with full MINA & WinCan embedded capabilities. The X40 rod and camera are designed to be flexible enough to pass through trap bends but rigid enough to push the distance in abrasive pipes.
| Specification | X40 |
| Rod Length | 40 m / 130 ft |
| Rod Diameter | 8.6 mm |
| System / Coiler Weight | 12.6 kg |
| Coiler Dimensions | W 296 × H 483 × L 392 mm |
| Camera Diameter | 30 mm |
| Pipe Use | 50–150 mm Ø (2"–6") |
| Sonde / Beacon | 33 kHz or 512 Hz (optional, specify at order) |
| Distance Counter | Yes |
| Self-Levelling Camera | Yes |
| Camera Resolution | PAL: 720H × 576V |
| Light Source | 12 LED |
| Operating Temperature | -10°C to +50°C |
| Output | USB-C |
| Battery Type | Li-ion |
| Battery Life | Up to 6 hours |
| Battery Capacity | 6.52 Ah |
| Charge Current | 1.5 A |
| Nominal Voltage | 7.4 V |
| Charging Options | 12 V & 240 V |
| IP Rating | Camera: IP68 / Coiler: IP54 |
| Approvals | CE and UKCA |
| Tablet / Control | Optional 8" 4GB tablet (or use own iOS/Android phone with free MINA app) |
| Software | MINA+ (WinCan Pro Touch optional £1,500) |
| Connectivity | USB |
| Notable Features | Flexible — passes through trap bends; rigid enough for abrasive pipes |
| Datasheet Revision | D1/Sep21/Rev1 |
