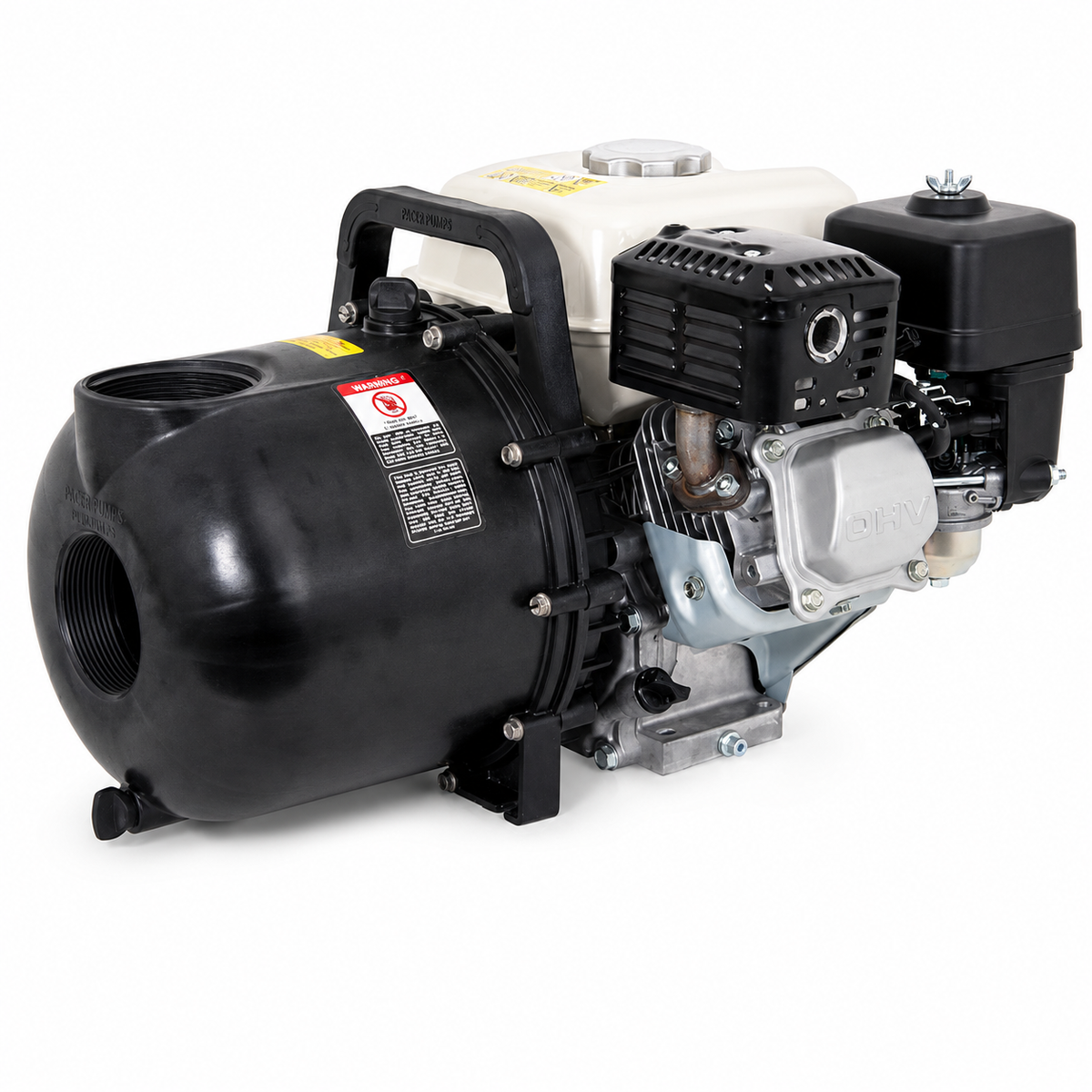

High-flow 3 inch engine-driven poly pump with corrosion-resistant construction and a Honda GX series industrial engine.

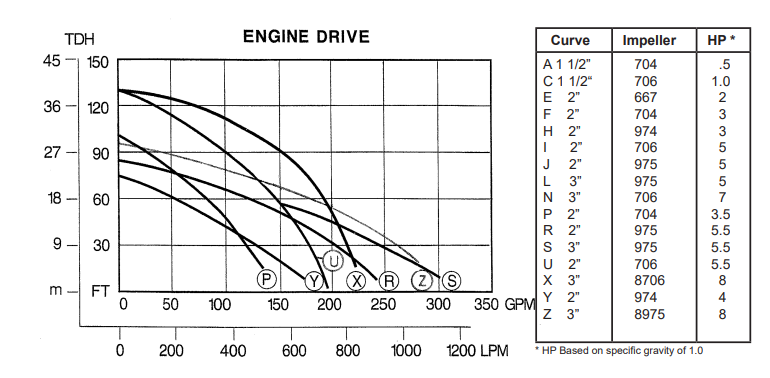

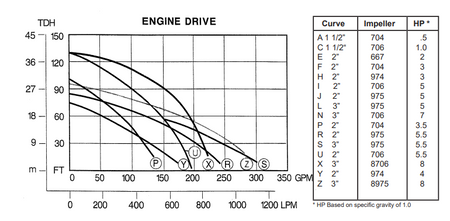

Performance
Maximum flow rate
870 lpm
Maximum head
37 m
Pump model
Pacer 706
Impeller
Five-vane impeller
Connections and construction
Port size
75 mm (3 in) BSP(F)
Pump material
Glass-reinforced black polyester
Fasteners
Stainless steel
Frame
No roll frame
Engine options
GX160
Honda GX160, 4.8 hp, recoil start
GX200 recoil start
Honda GX200, 5.5 hp, recoil start
GX200 electric start
Honda GX200, 5.5 hp, electric start
Seal options
EPDM
For general-purpose applications
Buna-N
For oil and diesel applications
Viton
For kerosene and other compatible liquids
Key features
✓ High flow rate up to 870 lpm
✓ Maximum head of 37 m
✓ Honda GX industrial engine
✓ Five-vane impeller
✓ Corrosion-resistant poly construction
✓ Stainless steel fasteners
✓ Choice of three seal materials
✓ 3 inch BSP(F) connections
Please note: This model is supplied without a roll frame. Always select a seal material compatible with the liquid, concentration and operating temperature.
